StarTech.com MSTCDP122DP Quick Start Manual

Quick-start guide
MST Hub - DisplayPort over USB-C™ to 2x DisplayPort
MSTCDP122DP
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com

Introduction

This MST hub lets you connect two monitors to your DisplayPort 1.2
over USB-C (DP Alt Mode) equipped Windows® device.

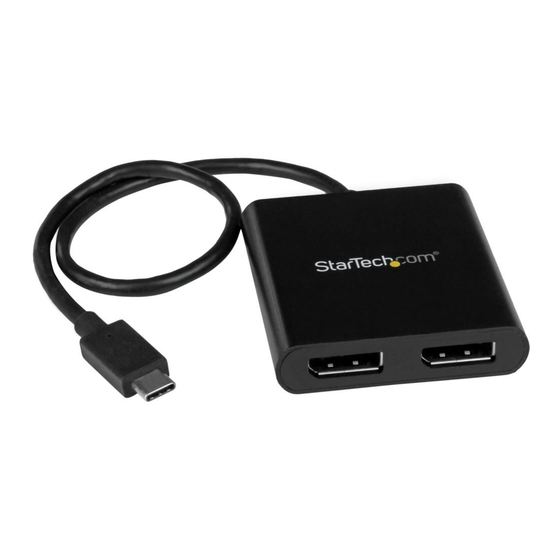

Product overview

Integrated USB-C
input cable

Packaging contents

• 1 x MST hub
• 1 x quick-start guide

System requirements

• 1 x computer with:
• DisplayPort over USB-C video support (DP Alt Mode)
• One of the following operating systems:
• Windows 10 (32 or 64 bit)
• Windows 8 / 8.1 (32 or 64 bit)
• Windows 7 (32 or 64 bit)
• 2 x monitors with cabling
Operating systems are subject to change. For the latest
requirements, please visit www.startech.com/MSTCDP122DP.
For the latest information, technical specifications, and support for
this product, please visit www.startech.com/MSTCDP122DP.
*actual product may vary from photos
DisplayPort
output ports

Important operation notes

• While StarTech.com recommends connecting your monitors
directly using DisplayPort cables when possible, different types
of displays such as HDMI®, DVI, and VGA are supported when the
appropriate DisplayPort adapter is used (sold separately). For
guaranteed support, StarTech.com can only recommend the use of
StarTech.com adapters. The StarTech.com SKU for each adapter is
listed below:
• DisplayPort to HDMI Adapter
• DisplayPort to VGA Adapter
• DisplayPort to DVI Adapter
• Your USB-C port must support DisplayPort over USB-C (DP Alt
mode) in order to work with this MST hub.
• MST is certified for operation with Microsoft® Windows 10, 8/8.1
and 7 devices.
• MST is currently not supported by other operating systems
such as Mac OSX and Chrome OS™.
• Other operating systems might adopt MST in the future.
Please verify MST support with your operating system
manufacturer.
• Operating system support is subject to change. For the
latest requirements, please visit
MSTCDP122DP.
• After the MST hub has been connected to your computer it may
be necessary to initiate the operation of additional displays from
within your Windows Display Settings.
• The SCAN button resyncs all of the attached displays, and can be
utilized if any of the displays are not detected.
(DP2HDMI)
(DP2VGA3)
(DP2DVI2)
www.startech.com/
Manual Revision: 08/21/2017
