1.7
Connectors
1.7.1

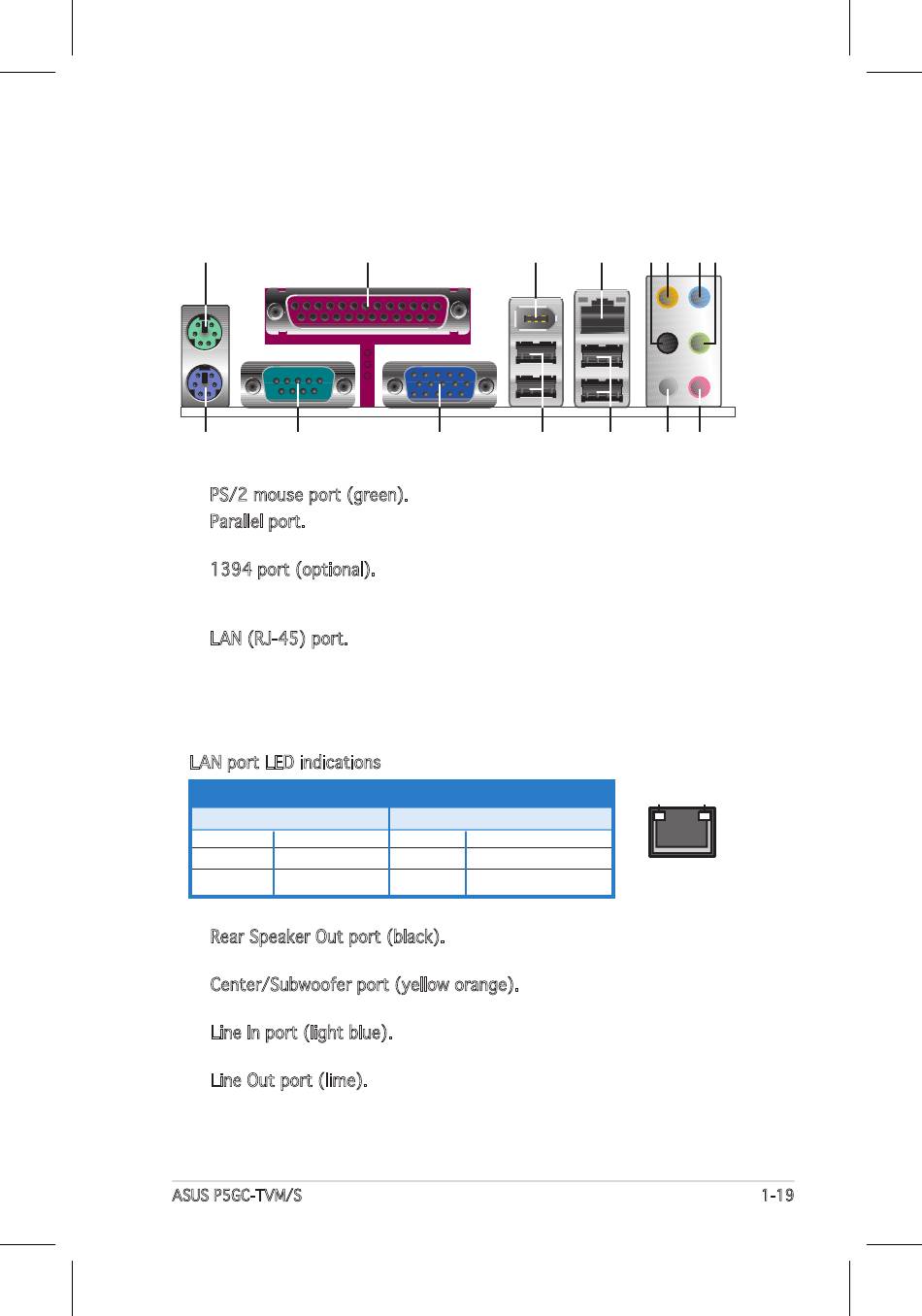

Rear panel connectors
1
15
1
1.
PS/2 mouse port (green). This port is for a PS/2 mouse.
2.
Parallel port. This 25-pin port connects a parallel printer, a scanner, or
other devices.
3.
1394 port (optional). This port provides high-speed connectivity for
IEEE 1394a-compliant audio/video devices, storage peripherals, and
other PC devices.
4.
LAN (RJ-45) port. This port allows 10/100 Mbps connection to
a Local Area Network (LAN) through a network hub. Refer to the
table below for the LAN port LED indications. The optional 1GB LAN
controller allows 1GB connection to a Local Area Network (LAN)
through a network hub.
LAN port LED indications
ACT/LINK LED
Status
Description
OFF
No link
GREEN
Linked
BLINKING
Data activity
5.
Rear Speaker Out port (black). This port connects the rear speakers
on a 4-channel, 6-channel, or 8-channel audio configuration.
6.
Center/Subwoofer port (yellow orange). This port connects the
center/subwoofer speakers.
7.
Line In port (light blue). This port connects a tape, CD, DVD player, or
other audio sources.
8.
Line Out port (lime). This port connects a headphone or a speaker. In
4-channel, 6-channel, and 8-channel configuration, the function of this
port becomes Front Speaker Out.
ASUS P5GC-TVM/S
2
1
12
SPEED LED
Status
Description
OFF
10 Mbps connection
ORANGE
100 Mbps connection
GREEN
1 Gbps connection
5
6
7
11
10
9
ACT/LINK
SPEED
LED
LED
LAN port
1-19
