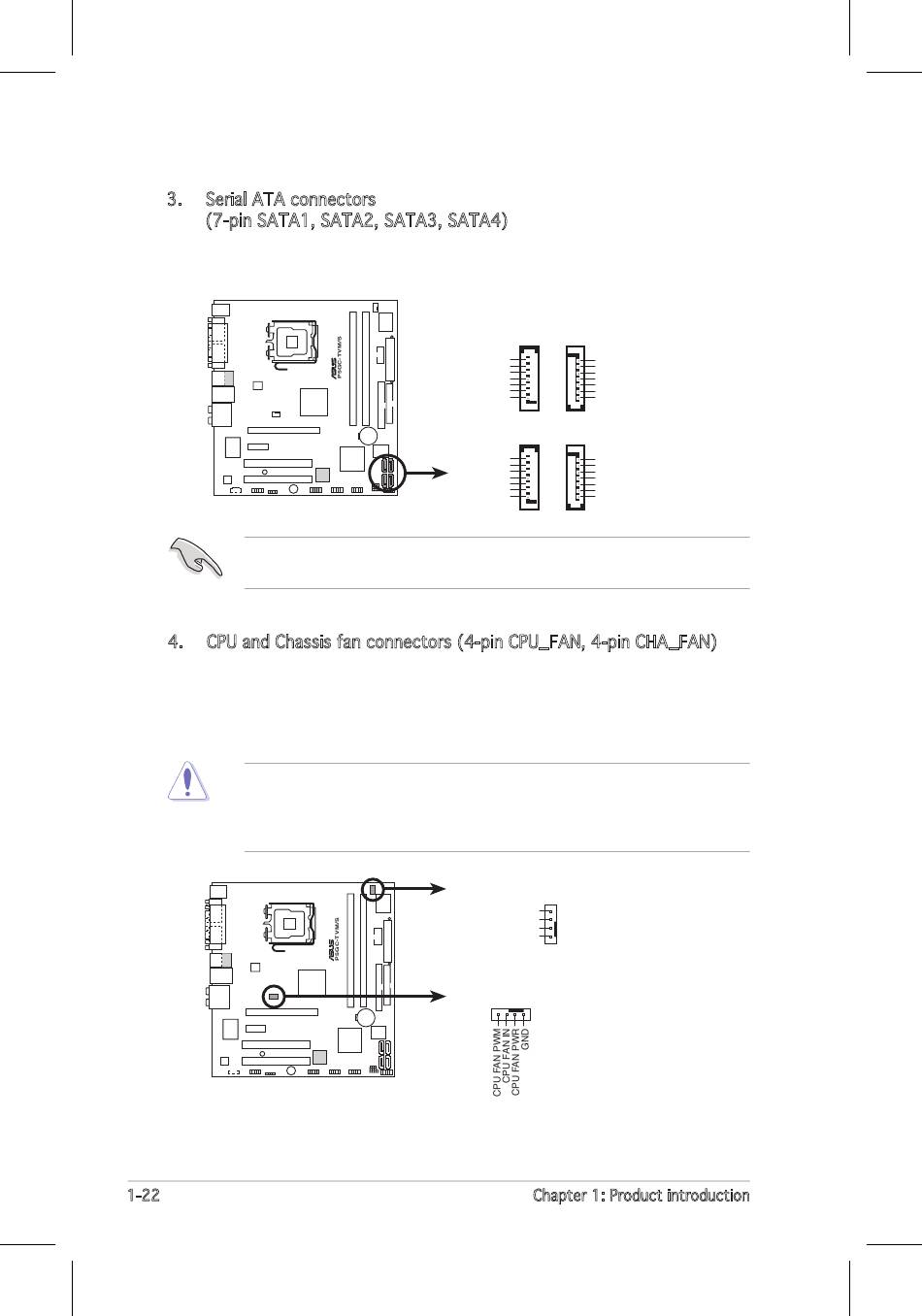

Asus P5GC-TVM/S Instruction Manual page 34

3. Serial ATA connectors
(7-pin SATA1, SATA2, SATA3, SATA4)
These connectors are for the Serial ATA signal cables for Serial ATA
hard disk drives.
P5GC-TVM/S SATA connectors
Install the Windows
Pack1 or later before using Serial ATA.
4. CPU and Chassis fan connectors (4-pin CPU_FAN, 4-pin CHA_FAN)
The fan connectors support cooling fans of 350mA~740mA (8.88W
max.) or a total of 1A~2.22A (26.64W max.) at +12V. Connect the fan
cables to the fan connectors on the motherboard, making sure that the
black wire of each cable matches the ground pin of the connector.
Do not forget to connect the fan cables to the fan connectors.
Insufficient air flow inside the system may damage the motherboard
components. These are not jumpers! DO NOT place jumper caps on the
fan connectors.
P5GC-TVM/S Fan connectors
