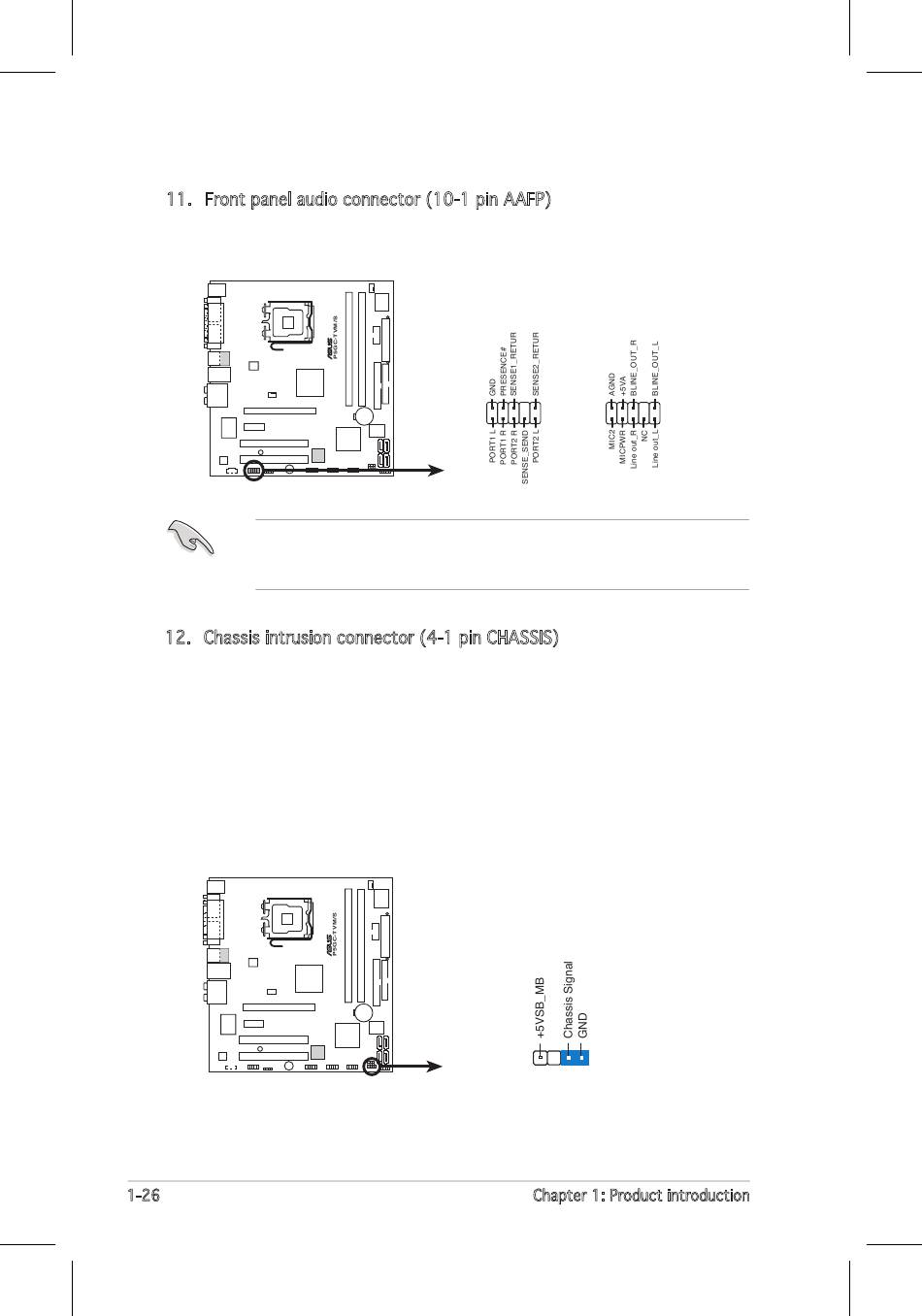

11. Front panel audio connector (10-1 pin AAFP)
This connector is for a chassis-mounted front panel audio I/O module
that supports either HD Audio or legacy AC'97 audio standard.
P5GC-TVM/S Analog front panel connector
It is recommended that you connect a high-definition front panel audio
module to this connector to avail of the motherboard's high-definition
audio capability.
12. Chassis intrusion connector (4-1 pin CHASSIS)
This connector is for a chassis-mounted intrusion detection sensor
or switch. Connect one end of the chassis intrusion sensor or switch
cable to this connector. The chassis intrusion sensor or switch sends
a high-level signal to this connector when a chassis component
is removed or replaced. The signal is then generated as a chassis
intrusion event.
By default, the pins labeled "Chassis Signal" and "Ground" are shorted
with a jumper cap. Remove the jumper caps only when you intend to
use the chassis intrusion detection feature.
P5GC-TVM/S Chassis intrusion connector
1-26
AAFP
Azalia
compliant definition
Legacy AC 97
compliant definition
CHASSIS
(Default)
