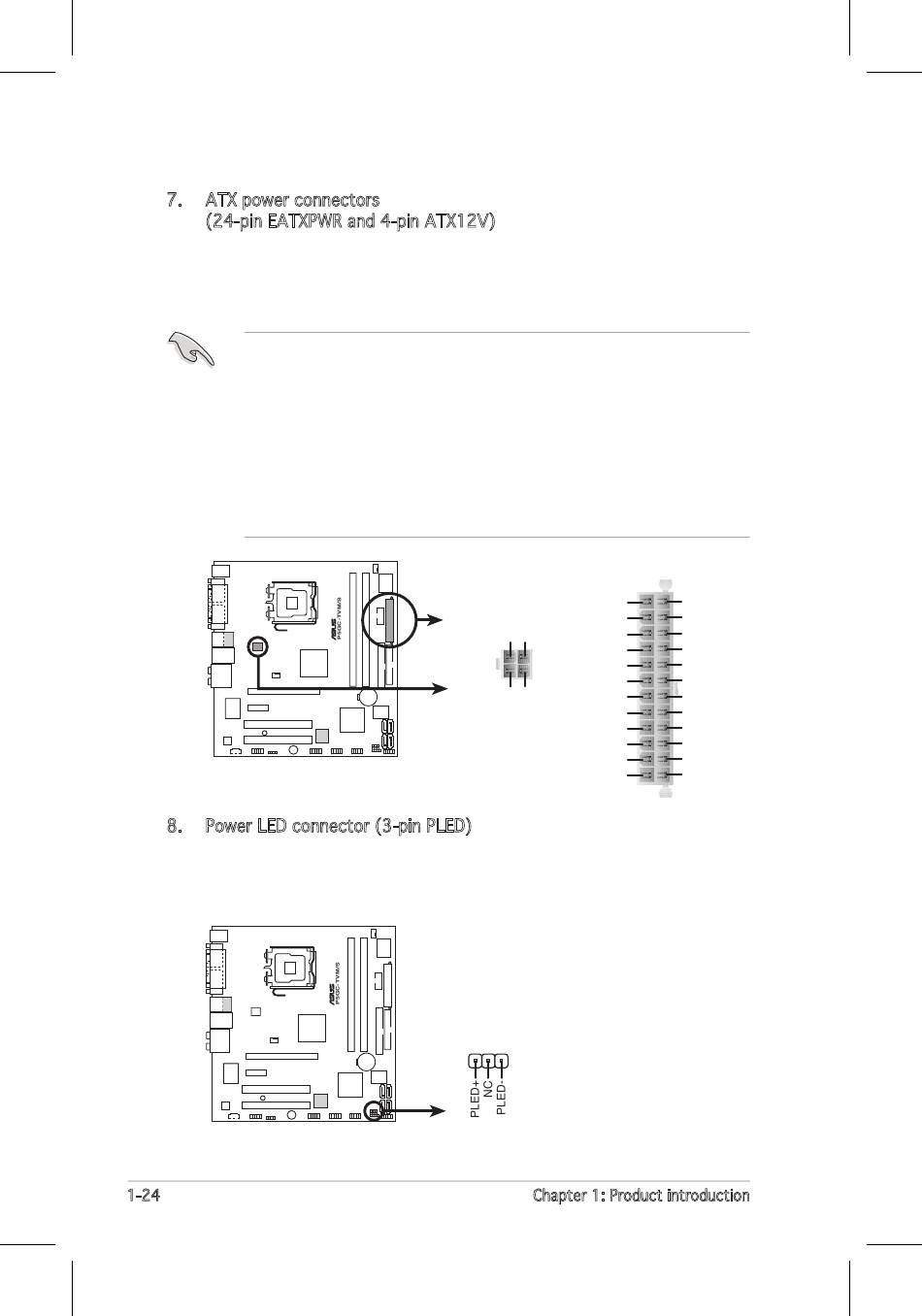

7. ATX power connectors
(24-pin EATXPWR and 4-pin ATX12V)
These connectors are for ATX power supply plugs. The power supply
plugs are designed to fit these connectors in only one orientation.
Find the proper orientation and push down firmly until the connectors
completely fit.
• Do not forget to connect the 4-pin ATX +12 V power plug;
otherwise, the system will not boot.
• Use of a PSU with a higher power output is recommended when
configuring a system with more power-consuming devices. The
system may become unstable or may not boot up if the power is
inadequate.
• Make sure that your power supply unit (PSU) can provide at least
the minimum power required by your system. See the table below
for details.
P5GC-TVM/S ATX power connectors
8. Power LED connector (3-pin PLED)
This 3-pin connector is for the system power LED. The system power
LED lights up when you turn on the system power, and blinks when
the system is in sleep mode.
P5GC-TVM/S Power LED connector
1-24
EATXPWR
+ Volts
ATX12V
+12 Volts
+12 Volts
+12V DC GND
+5V Standby
Power OK
Ground
+5 Volts
+12V DC GND
Ground
+5 Volts
Ground
+ Volts
+ Volts
PLED
1
Chapter 1: Product introduction
Ground
+5 Volts
+5 Volts
+5 Volts
-5 Volts
Ground
Ground
Ground
PSON#
Ground
-12 Volts
+ Volts
