Eliza S Personal Alarm
Technical Guide
www.careium.co.uk

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Eliza S and is the answer not in the manual?

Questions and answers

Related Manuals for careium Eliza S

Summary of Contents for careium Eliza S

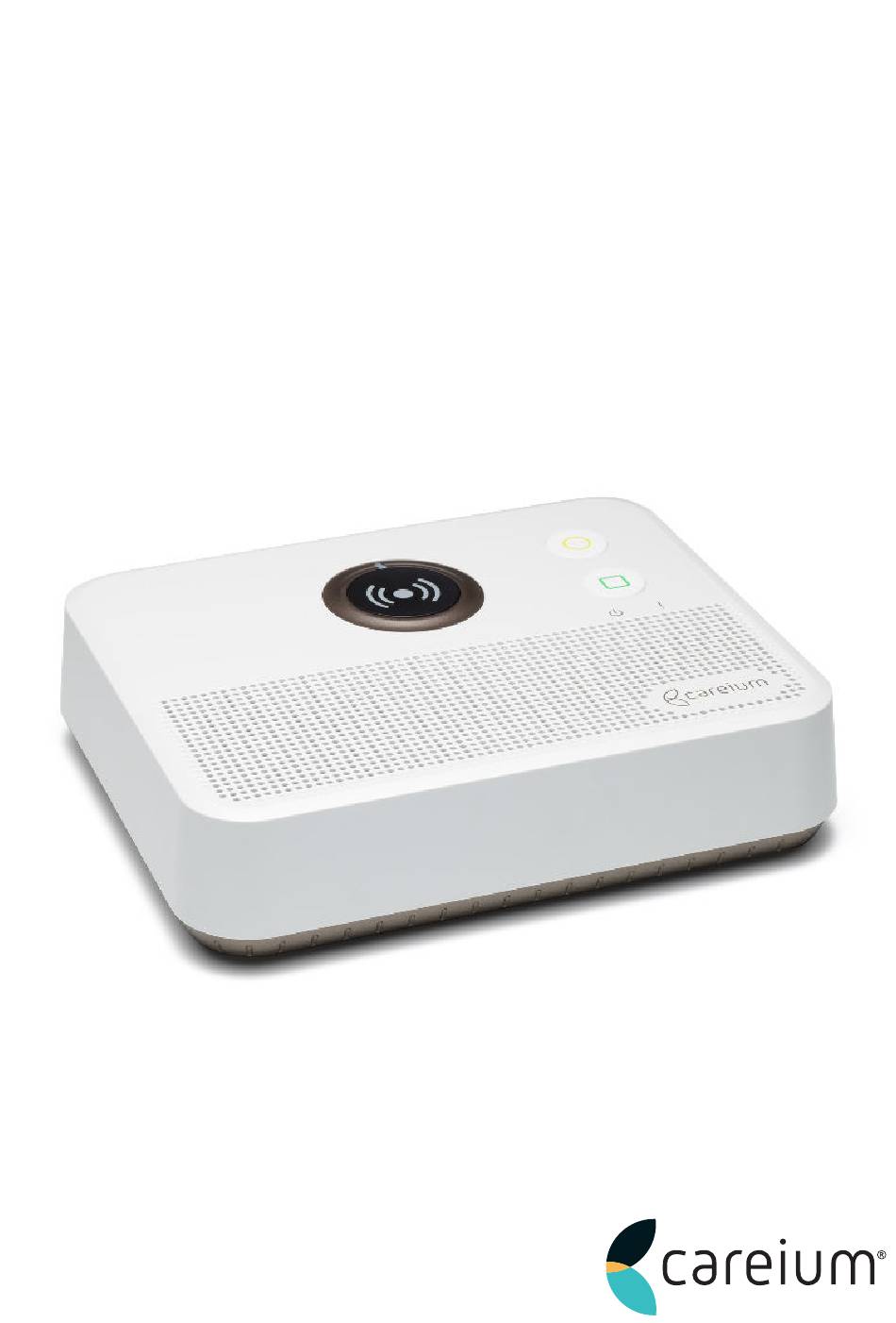

  • Page 1 Eliza S Personal Alarm Technical Guide www.careium.co.uk...
  • Page 2 Welcome to Careium Please read this manual thoroughly and retain it for future reference. Before installation IMPORTANT: Before installing your equipment, please ensure you have provided us with all the service user details (contact information, medical records, keyholder details, etc). If you have not already done so, you can provide this via either the form on our website, available at careium.co.uk/service-user-details...

  • Page 3: Installation And Connection

    2 Turn the power switch to the on ( ) position. 3 Check that the power indicator ( ) lamp has a steady red light. 4 T he status light shall go off within 90 seconds if the mobile network (GSM/UMTS/LTE) is detected. 5 Carry out a test alarm from the Eliza S.

  • Page 4: Read First: Safety Information

    Read first: Safety information IMPORTANT: Always read and follow the safety information accompanied by this symbol. • Always test the system according to the instructions before use and always test the product after adjustments have been made. • The device is not always suitable for all users and should not be seen as a substitute for carers.
  • Page 5 Important information All systems using radio and network communication are subject to interference beyond the user’s control. Products from Careium are designed to minimise the impact of such interference. Nevertheless, the user must be aware that system components can be subjected to interference or other influences that may cause malfunction.

  • Page 6: Description Of Functions

    CO detectors – enabling the user a tailor-made solution. Eliza S allows the user to call for assistance if they have an accident or a fall at home. Eliza S can potentially be a life- saving device if someone has a fall or some other accident when they are alone.
  • Page 7 • by pressing the button on the personal alarm button. • by pressing the integral alarm button on the Eliza S. On activation, the Eliza S calls an alarm receiver to summon help. Alarm transmitters 50 radio transmitters (triggers/sensors) can be programmed with the Eliza S, e.g.

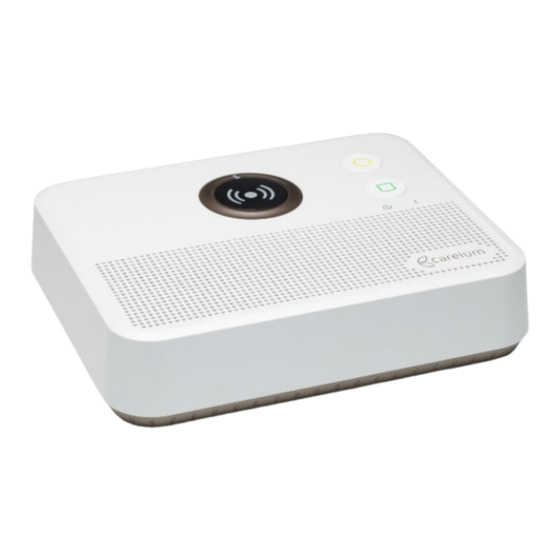

  • Page 8 Eliza S overview Top view 1 Loudspeaker 4 Button with circle symbol (yellow) 2 Alarm button (red) 5 Button with square symbol (green) 3 Power indicator 6 Status indicator...
  • Page 9 Indicator lights & symbols ALARM Steady light Normal operation Blinking light Alarm activated POWER ON GREEN Steady light Mains power Blinking light Mains failure SQUARE GREEN Press to cancel alarm CIRCLE YELLOW Service menu etc STATUS YELLOW Normal operation Steady light Network problem Blinking light Low battery...
  • Page 10 Back view 1 I/O connector — optional 3.5mm 3 Power switch — turns unit on or off audio out or wired input 2 External antenna connector — 4 Power supply socket — 9V, 2A optional...
  • Page 11 Bottom view 1 Device serial number 3 Device name 2 Model number...

  • Page 12: Communication Path

    Communication path Internet Pendant Eliza S radio trigger base unit i-care online Example of a simplified communication path: 1 Radio or wired alarm trigger activated. 2 Connection via mobile network (GSM/UMTS/LTE) to Voice, IP alarm protocol and additional data. 3 IP connection via mobile network (GSM/UMTS/LTE).
  • Page 13 ) for 4 seconds and release when an audible signal is played and the Power indicator ( starts to blink. 2 Activate the radio transmitter. When Eliza S receives the radio signal an audible signal is played. 3 C onfirm the pairing by pressing and releasing the red integral alarm button once on Eliza S. The successful pairing is confirmed with an...
  • Page 14 Automatic test The functionality of the Eliza S and its communication can be automatic by way of a periodical test report to the Alarm Receiving Centre (ARC), for example once a day or once a week.
  • Page 15 Your pendant explained The pendant uses two-way radio communication, this means that when Eliza S receives an alarm from a pendant the alarm unit will send a confirmation of receipt to the pendant. This is confirmed on the pendant by indicator light change from red to green. If the pendant doesn’t get any confirmation, the alarm is repeated. The pendant can be worn using a wristband or neckband.
  • Page 16 easy press Designed to make the pendant easier to press, so you are only required to add on if you struggle to press the button.

  • Page 18: General Information

    • In order for an alarm to be sent, at least one alarm receiver/response Centre needs to be programmed. • The Eliza S must not come into contact with water or any other liquid. • Used batteries should always be disposed of in an environmentally responsible manner.

  • Page 19: Technical Data

    Technical data ELIZA S BASE UNIT Model No A150 Dimensions 170 x 138 x 43 mm (L x W x D) Weight (inc power supply & 0.6 kg cables) 9 VDC power supply Power supply Power consumption 2W (Nominal) Backup battery 3.7 V, 2000 mAh, Li-Ion...
  • Page 20 PENDANT 39 x 32 x 11 mm (L x W x D) Dimensions Weight 12 g (excluding wrist band or necklace) Battery 3V lithium battery CR 2032 Up to five years Battery life Water resistance Complies with IP67 869,2-869,25 MHz Radio frequency band Radio frequency power max. 10 mW (10 dBm) ≥ 40 meters (normal environment) Radio frequency range indoors ≥ 300 meters (typical, line of sight) Radio frequency range outdoors 869,2-869,25 MHz...

  • Page 21: Other Information

    The product can be returned free of charge to a recycling station that is connected, directly or via a recycling system, to Careium or to your distributor. For detailed instructions, please check with your distributor or visit our website: www.careium.com...
  • Page 22 Legal notices The information contained here is subject to change without notice. The only warranties for Careium products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty.
  • Page 23 Notes...
  • Page 24 OCTOBER 2023 Careium Aspinall House, Walker Office Park, Blackburn, Lancashire, BB1 2QE Call: 0300 333 6511 Visit: www.careium.co.uk Email: uk.info@careium.com...
