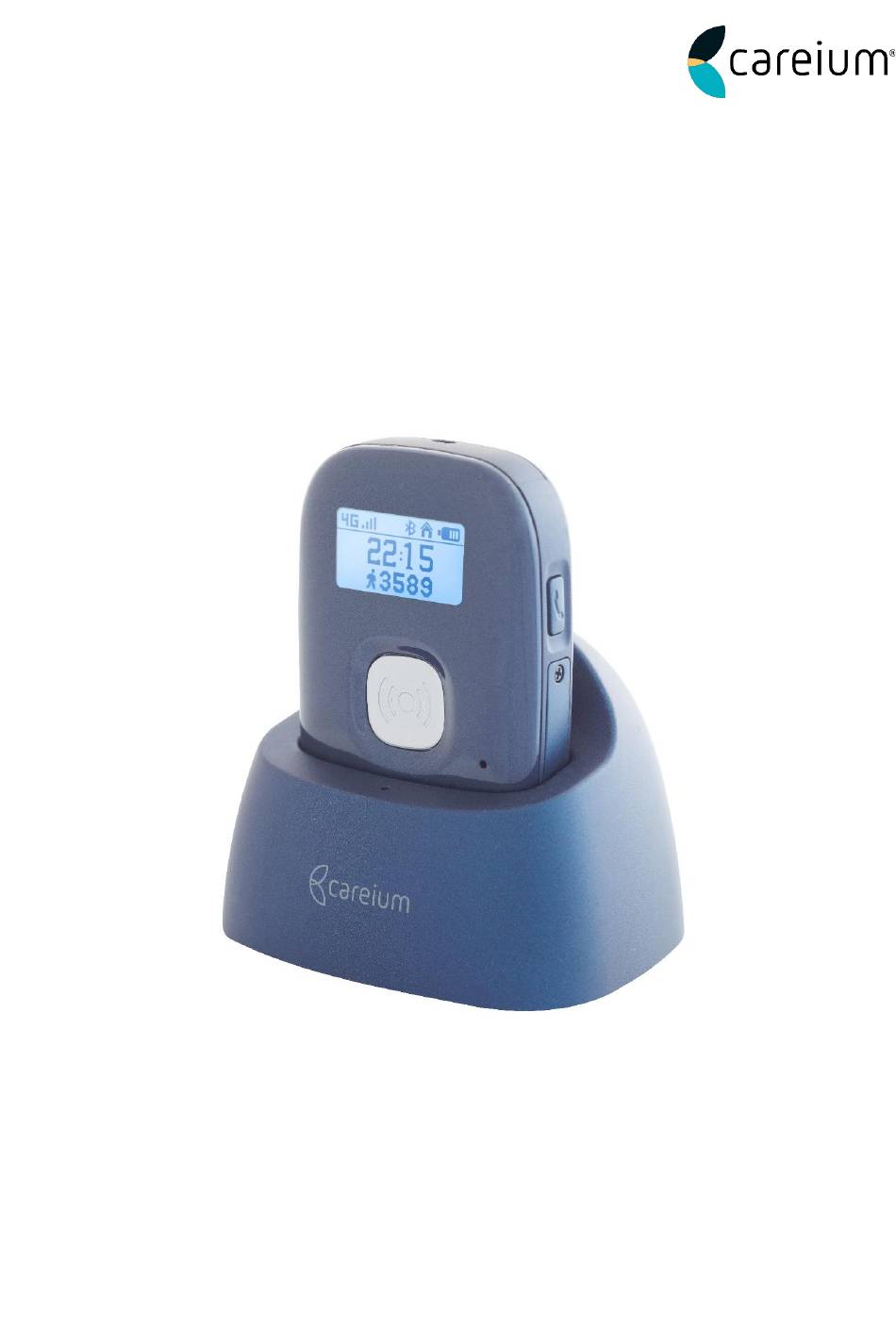

- Page 1 Abby MOBILE SOCIAL ALARM User guide English...
-
Page 2: Table Of Contents
Technical alarms ......................6 Positioning ........................ 6 Sending a contact message ..................7 Abby and docking station, back, front and side view ........... 7 Button, display, LED, sound and vibration chart ..........8 Display ..........................8 Menu system ........................9 Abby, the body worn device.................. -
Page 3: Safety Information
• Only use the recommended power supply as stated in the section Power supply. • The wall socket should be installed near the Careium charger equipment and should be easily accessible. • Follow the rules and laws that apply wherever you are, and always turn off the unit whenever its use is prohibited or can cause interference or hazards. -
Page 4: Implanted Medical Devices
The use of equipment that transmits radio signals, for example, mobile phones, can interfere with insufficiently protected medical equipment. Consult a doctor or the manufacturer of the equipment to determine if it has adequate protection against external radio signals, or if you have any questions. If notices have been put up at health care facilities instructing you to turn off the unit while you are there, you should comply. -
Page 5: Package Content
This alarm is triggered via the SOS button on the front of the device or a remote alarm trigger. Three short presses in a row, or a long 3s press will activate the alarm on Abby. A single press activates the remote alarm trigger. -
Page 6: Geo-Fence Alarm
5.3 Geo-Fence alarm Two types of Geo-fence alarms can be set in the Abby. The fence shall be defined so that the target, such as a house, lake etc., is in the middle of the fence. The radius of the fence shall not be less than 100m. -
Page 7: Sending A Contact Message

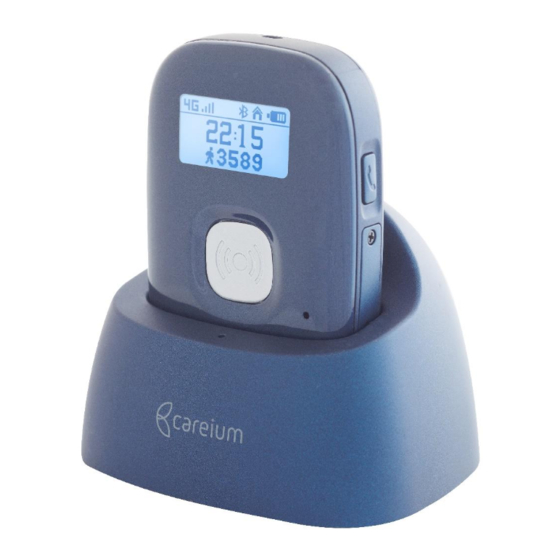

The message is sent by pressing the side button on the device. A sound and a vibration are played to confirm that the message will be sent. Abby and docking station, back, front and side view Necklace Green Status light... -
Page 8: Button, Display, Led, Sound And Vibration Chart
Button, display, LED, sound, and vibration chart Display • Network type • Network signal strength • Bluetooth active • Home beacon in range • Battery status • Time • Step counter Alarm in progress Message sent Fully charged battery Battery low SIM error No network connection Incoming call... -
Page 9: Menu System
• Use the side button to scroll down. • Use SOS button to confirm/enter. The unit will exit the menu system automatically after 10 seconds if there is no activity. 9.3 Abby, the body worn device. Status/Function Input Green led... -
Page 10: Abby, Docking Station
9.4 Abby, docking station. Status/Function Green Led Flashing Power connected No power Installation. When first plugged in or after storage you should let the Abby charge for up to 3 hours to reach full battery capacity. Assembly the power adapter with correct plug... -
Page 11: Radio Trigger (Accessory)
Connect the power supply to the wall socket and the USB connector to the Abby Docking station. The green Led on the docking station will be lit up and the display will show a charging symbol. • Install the Abby into the Docking station. -
Page 12: Pairing A Radio Trigger
• I10 Smoke • I10 Heat • I10 CO Maintenance 14.1 Cleaning When cleaning the Abby including accessories and cables, use only a slightly damp cloth. Do not use strong detergents or solvents when cleaning. Reinstatement Abby If the is reinstated at a new user, it shall be reset to default settings and re-programmed... -
Page 13: Technical Data
Technical data 16.1 Abby, the body worn device. Dimensions : 63 x 44 x 17 mm (L x W x H) Weight: 45 g IP-Class: IP67 Temperature: Operating temperature -10ºC to +40ºC Power consumption (typical): - Off mode: 0,8 mW... -
Page 14: Charging Cradle/Beacon
ISO 14001. Careium also supports UN’s global goals for sustainable development. You can read more about the sustainability work at: www.careium.com/en-gb/about-careium/about-us/sustainability/. The Abby is marked with the “crossed out wheeled bin” logo, which indicates that it should be handed in for recycling. -
Page 15: Proper Disposable Of Products
The product can be returned free of charge to a recycling station that is connected, directly or via a recycling system, to CAREIUM or to your distributor. For detailed instructions, please check with your distributor or visit our website, www.Careium.com/care/ Note! The WEEE information and recycling instructions apply to European Union member states only. -
Page 16: Simplified Eu Declaration Of Conformity
Regulation (EC) No 1907/2006, Regulation (EC) No 2019/1782 and 1275/2008 pursuant to ECO-design Directive 2009/125/EC. The full text of the EU declaration of conformity is available at: www.careium.com/dofc. UK Declaration of Conformity Hereby, Careium declares that the radio equipment type Abby is in compliance with the relevant UK legislation. - Page 17 © 2021 Copyright Careium AB Manual_Abby_en_11 Careium AB, Jörgen Kocksgatan 1 B, 211 20 Malmö, Sweden Corporate identification number: 556569-9740 www.careium.com...
