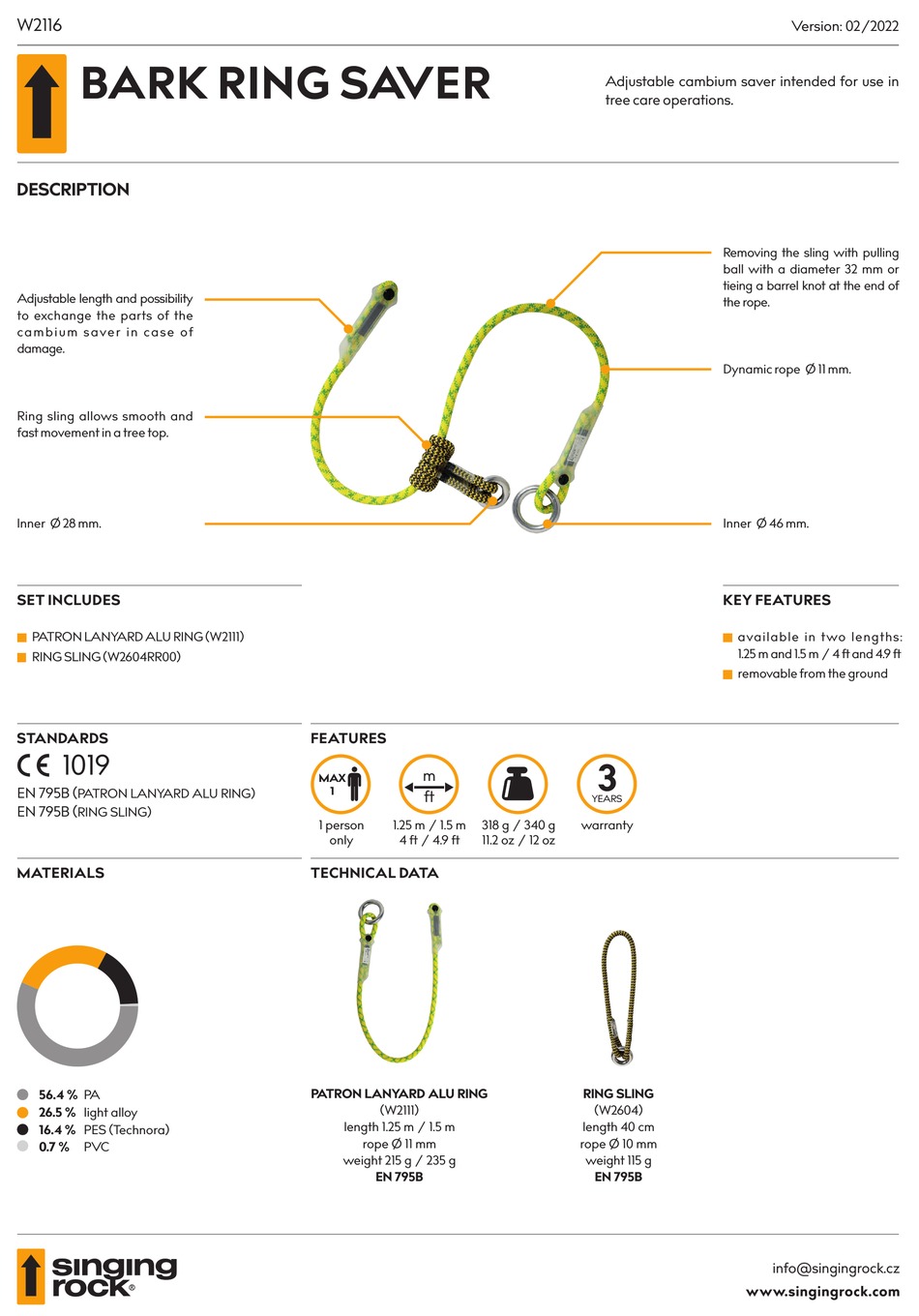

Singing rock W2116 Manual

W2116
BARK RING SA VER
DESCRIPTION
Adjustable length and possibility
to exchange the parts of the
c a m b i u m s a ve r i n c a s e o f
damage.
Ring sling allows smooth and
fast movement in a tree top.
Inner Ø 28 mm.
SET INCLUDES
PATRON LANYARD ALU RING (W2111)
RING SLING (W2604RR00)
STANDARDS
1019
EN 795B (
PATRON LANYARD ALU RING)
EN 795B (
RING SLING)
MATERIALS
56.4 % PA
26.5 % light alloy
16.4 % PES (Technora)
0.7 % PVC
FEATURES
m
MAX
1
ft
1 person 1.25 m / 1.5 m 318 g / 340 g
only 4 ft / 4.9 ft 11.2 oz / 12 oz
TECHNICAL DATA
PATRON LANYARD ALU RING
(W2111)
length 1.25 m / 1.5 m
rope Ø 11 mm
weight 215 g / 235 g
EN 795B
Adjustable cambium saver intended for use in
tree care operations.
Removing the sling with pulling
ball with a diameter 32 mm or
tieing a barrel knot at the end of
the rope.
Dynamic rope Ø 11 mm.
Inner Ø 46 mm.
KEY FEATURES
available in two lengths:
1.25 m and 1.5 m / 4 ft and 4.9 ft
removable from the ground
3
YEARS
warranty
RING SLING
(W2604)
length 40 cm
rope Ø 10 mm
weight 115 g
EN 795B
www.singingrock.com
Version: 02/2022
