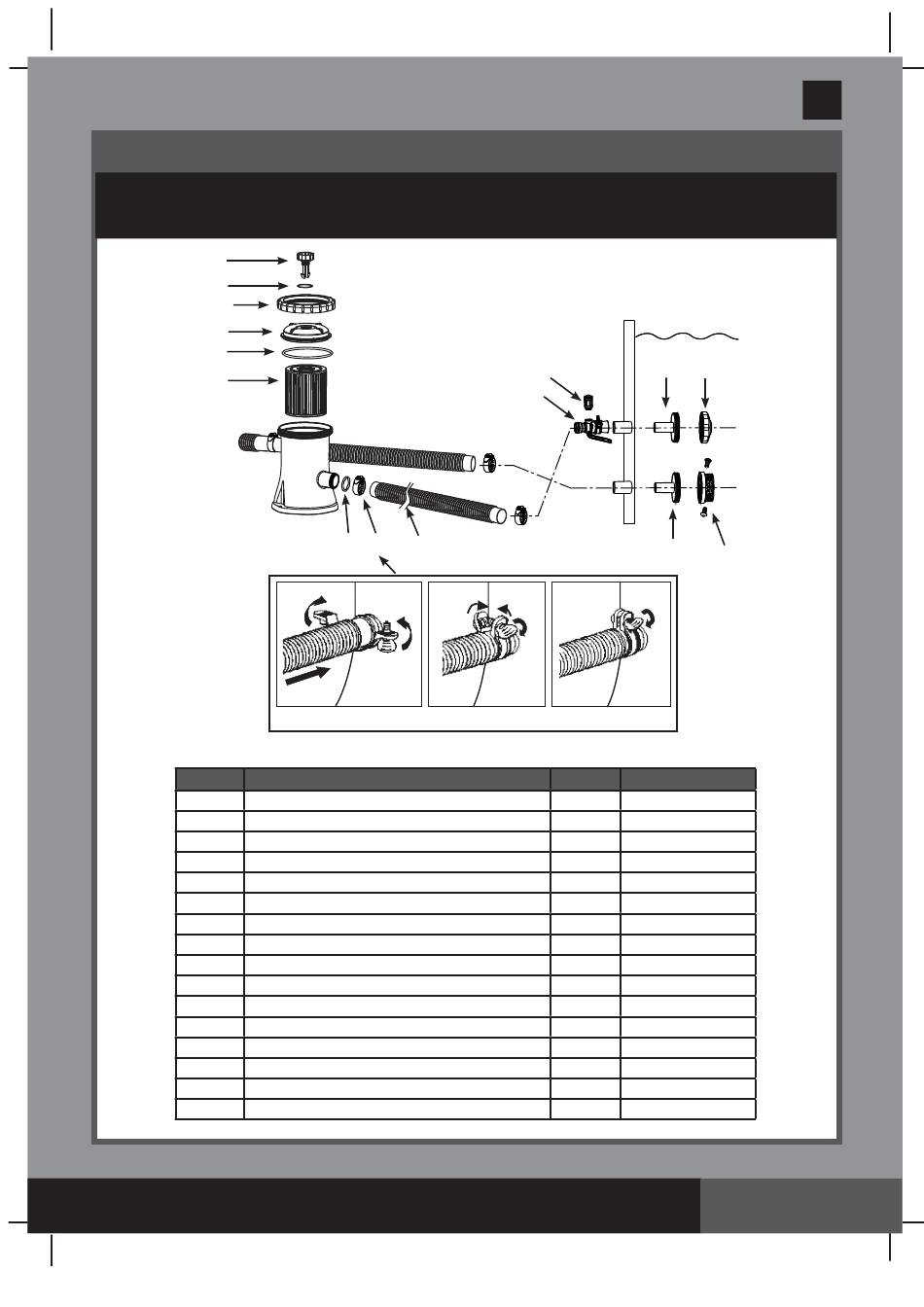

Parts Reference - Intex Krystal Clear 601 Owner's Manual

Before assembling your product, please take a few minutes to check the contents
1
2
12
3
4
5
NOTE: Drawings for illustration purpose only. May not reflect actual product. Not to scale.
REF. NO.
1 AIR RELEASE VALVE
2 VALVE O-RING
3 FILTER HOUSING COVER
4 COVER SEAL
5 FILTER CARTRIDGE
6 HOSE SEAL
7 HOSE CLAMP
8 HOSE
9 STRAINER CONNECTOR
10 POOL INLET JET NOZZLE
11 STRAINER GRID
12 THREADED FILTER HOUSING COLLAR
13 INLET STRAINER CONNECTOR
14 AIR JET VALVE
15 POOL INLET AIR ADAPTOR
16 AIR JET VALVE CAP (NOT SHOWN)
When ordering parts, be sure to quote the model number and part numbers.
No tools are required for the assembly.
SAVE THESE INSTRUCTIONS
(257PO) MODEL 601 FILTER PUMP ENGLISH 7.5" X 10.3" PANTONE 295U 05/10/2019

PARTS REFERENCE

and become familiar with all the parts.
6 7
8
A B
DESCRIPTION
English
13 10
14
15
9
C
QTY. SPARE PART NO.
1 10460
1 10264
1 11917
1 11919
1 29007
2 10134
4 11489
2 11916
1 11070
1 12364
1 11072
1 11918
1 12365
1 12363
1 12366
1 12373
257
PO
11
Page 4
