Intex Krystal Clear C2500 Owner's Manual
  1. Manuals
  2. Brands
  3. Intex Manuals
  4. Water Pump
  5. Krystal Clear C2500
  6. Owner's manual

Intex Krystal Clear C2500 Owner's Manual

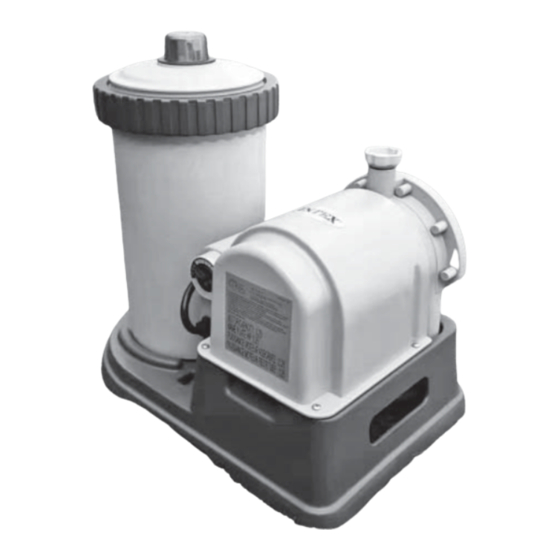

Filter pump, 220 - 240 v, 50 hz, 360 w, hmax 5.0 m, hmin 0.19 m, ipx4, max. water temperature 35 c
Hide thumbs Also See for Krystal Clear C2500:

Advertisement

Table of Contents

Zusammengeführte PDF Datei. Die Originale sind im folgenden Verzeichnis verlinkt. / Merged PDF File. Original files are linked in the following list. / Sloučený soubor PDF.
Originály jsou propojeny v následujícím adresáři. / Egyesített PDF fájl. Az eredetiek a következő könyvtárban találhatók. / Zlúčený súbor PDF. Originály sú prepojené v
nasledujúcom adresári. / Združena datoteka PDF. Izvirniki so povezani v naslednjem imeniku. / Spojena PDF datoteka. Izvornici su povezani u sljedećem imeniku.
128634GS - Krystal Clear cartridge filter unit C2500
Cartridge Filter Unit
Hydro Aeration Technology
Air Valve For Water Revitalization Set
Setup Video
Service Center
2
19
21
23
25

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Krystal Clear C2500 and is the answer not in the manual?

Questions and answers

Ward Yamamoto
May 5, 2025

Replacement o-rings for pipe connections underneath housing of c2500 intex pool pump/filter

0
1 comments:
Mr. Anderson
May 17, 2025

Replacement O-rings for the pipe connections underneath the housing of the Intex C2500 pool pump/filter can be identified by their part numbers in the manual. Common O-ring parts include:

- L-Shape O-Ring: Part 11228 or Part 11412
- Leaf Trap O-Ring: Part 11232
- Valve O-Ring: Part 10264
- Hose O-Ring: Part 10262

You can find these replacement parts by searching using their part numbers through authorized Intex dealers or service centers.

This answer is automatically generated

0
Ward Yamamoto
May 5, 2025

I. Don’t see pipe connections under pump my orange is cracked what size is it

0
1 comments:
Wardyamamoto
May 5, 2025

@Ward Yamamoto o-ring is cracked need replacement o-rings

0

Related Manuals for Intex Krystal Clear C2500

Summary of Contents for Intex Krystal Clear C2500

  • Page 1 Zusammengeführte PDF Datei. Die Originale sind im folgenden Verzeichnis verlinkt. / Merged PDF File. Original files are linked in the following list. / Sloučený soubor PDF. Originály jsou propojeny v následujícím adresáři. / Egyesített PDF fájl. Az eredetiek a következő könyvtárban találhatók. / Zlúčený súbor PDF. Originály sú prepojené v nasledujúcom adresári.
  • Page 2 Ländern der Welt in Lizenz von/Intex Marketing Ltd. to/à/a/an Intex Development Co. Ltd., Hong Kong & Intex Recreation Corp., P.O. Box 1440, Long Beach, CA 90801 • Distributed in the European Union by/Distribué dans l’Union Européenne par/Distribuido en la unión Europea por/Vertrieb in der Europäischen Union durch/Intex Trading B.V.,...

  • Page 3: Table Of Contents

    (110GS) MODEL 634RC FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/13/2022 English TABLE OF CONTENTS Warnings................3 Parts List & Reference............ 4-5 Setup Instructions............6-9 Operating Instructions............ 10 Operating Time Table............11 Maintenance..............12-13 Pool Care and Chemicals..........13 Long Term Storage............

  • Page 4: Warnings

    (110GS) MODEL 634RC FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/13/2022 English IMPORTANT SAFETY RULES Read, Understand and Follow All Instructions Carefully Before Installing and Using this Product. READ AND FOLLOW ALL INSTRUCTIONS WARNING • Always supervise children and those with disabilities. •...

  • Page 5: Parts List & Reference

    (110GS) MODEL 634RC FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/13/2022 English PARTS REFERENCE Before assembling your product, please take a few minutes to check the contents and become familiar with all the parts. Type of filter medium: Synthetic cartridge #29005 NOTE: Drawings for illustration purpose only.
  • Page 6 (110GS) MODEL 634RC FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/13/2022 English PARTS REFERENCE (continued) Before assembling your product, please take a few minutes to check the contents and become familiar with all the parts. If the pump was purchased as part of a pool set, below fitting parts are included. Contact our Authorized Service Centers to order these parts if needed.

  • Page 7: Setup Instructions

    (110GS) MODEL 634RC FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/13/2022 English POOL OUTLET - STRAINER & PLUNGER VALVE SETUP ( OPTIONAL ) The strainer grid prevents large objects from jamming and/or damaging the filter pump. The plunger valve assembly prevents water from flowing into the filter pump while the filter cartridge is being placed or cleaned.
  • Page 8 (110GS) MODEL 634RC FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/13/2022 English POOL INLET - NOZZLE & PLUNGER VALVE SETUP ( OPTIONAL ) 1. In a counter-clockwise motion unscrew plunger valve union from the inlet threaded air connector (19) (see drawing 5).
  • Page 9 (110GS) MODEL 634RC FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/13/2022 English FILTER PUMP HOSE CONNECTION SETUP 1. Remove the Krystal Clear™ filter pump and hoses from the packaging. 2. Place the filter pump in such a manner, that you can easily assemble the hose (8) connections to the plunger valve.
  • Page 10 (110GS) MODEL 634RC FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/13/2022 English FILTER PUMP INSTALLATION DISTANCE hoses Electrical device POOL > 3.5 m > 4 m (Generic layout of an electrical device relative to a swimming pool. Illustration not to scale) According to the International Standard, IEC 60364-7-702, on electrical installation of swimming pools and other basins equipment, the following installation distances must be respected: •...

  • Page 11: Operating Instructions

    (110GS) MODEL 634RC FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/13/2022 English OPERATING INSTRUCTIONS RCD OPERATING INSTRUCTIONS • Plug RCD into power outlet. Press RESET button on the RCD plug. Indicator should be “ON”. See FIG. 10. • Press TEST button on the RCD plug. Indicator should be “OFF”. See FIG. 11. •...

  • Page 12: Operating Time Table

    Pool and 80% for Easy Set & Oval Pool) Pool Size per day (Gals) (Liters) (Hours) INTEX ABOVE GROUND POOLS (AGP’s) 18ʹ x 42ʺ (549cm x 107cm) 4,786 18,115 EASY SET ® POOL 18ʹ x 48ʺ (549cm x 122cm)

  • Page 13: Maintenance

    C. Screw back the sediment valve (9) in a gentle clockwise motion. Do not over-tighten. 9. Place a clean or new cartridge filter in the housing. Only use the original Intex cartridge for replacement. See “Parts Reference” section for detail.

  • Page 14: Pool Care And Chemicals

    (110GS) MODEL 634RC FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/13/2022 English POOL CARE AND CHEMICALS • All pools require care to keep the water clear and hygienically clean. With proper chemical control, your filter will help attain this objective. Consult your pool supply dealer for instructions regarding the proper use of chlorine, algaecide and other chemical agents required for sparkling clear water.

  • Page 15: Troubleshooting Guide

    (110GS) MODEL 634RC FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/13/2022 English TROUBLESHOOTING GUIDE TROUBLE CAUSE SOLUTION FILTER MOTOR FAILS • The motor is not plugged in. • Filter cord must be plugged into a 3 wire outlet that is TO START •...
  • Page 16 • Incorrect filter cartridge specification. housing cover is securely closed. • Filter cartridge is broken and leaking. • Replace with INTEX filter cartridge. • Accessories attached to the water • Replace the filter cartridge with a new one. filtration system line.

  • Page 17: Common Pool Problems

    • The drain valves are loose. • Finger tighten all caps. SEDIMENT ON • Dirt or sand on • Heavy use, getting in • Use Intex pool vacuum to POOL BOTTOM pool floor. and out of pool. clean bottom of pool.

  • Page 18: Limited Warranty

    Other than this warranty, and other legal rights in your country, no further warranties are implied. To the extent possibly in your country, in no event shall Intex be liable to you or any third party for direct or consequential damages arising out of the use of your Krystal Clear™ Filter Pump, or Intex or its agents’...
  • Page 19 Bestway Inflatables & Material Corp. Intex no está asociada con, ni patrocinada por, Bestway. / ® Bestway ist eine eingetragene Marke der Bestway Inflatables & Material Corp. Intex ist weder mit Bestway verbunden, noch wird Intex von Bestway gesponsert. / ® Bestway è...
  • Page 20 Intex Hydro Aeration inlet fitting ® Bestway é uma marca registada da Bestway Inflatables & Material Corp. A Intex não está associada à, nem é patrocinada pela Bestway. / ® Bestway er et registreret varemærke tilhørende Bestway Inflatables & Material Corp. Intex er ikke forbundet med eller sponsoreret af Bestway. / ®...
  • Page 21 (1701) Aeration adaptor air valve EN, FR, SP, GE, IT, DU, PT, DA, PL, RU, CH SIZE: 3.5” X 2.5” 06/02/2021 1701 NOTE: When the pump is off there might be some tear drop water coming out of the air jet valve. This is normal! NOTE: Lorsque la pompe est arrêtée, des gouttes d’eau peuvent apparaître au niveau de la valve d’entrée d’air.
  • Page 22 (1701) Aeration adaptor air valve EN, FR, SP, GE, IT, DU, PT, DA, PL, RU, CH SIZE: 3.5” X 2.5” 06/02/2021 Accessories such Solar Mat, Hydroelectric LED Light and/or Auto Pool Cleaner must be removed from the fi ltration system circulation line. If they are attached, aeration performance will be reduced and some tear drop water will 1701 come out of the air jet valve.
  • Page 23 (1901) setup video QR code instruction EN FR SP GE IT DU PT DA PL RU JA CH 7.5” X 10.3” 05/30/2018 1901 QR Code / Code QR / Código QR / QR-Code / Codice QR / QR code / Código QR / QR-kode / Kod QR / QR-код...
  • Page 24 (1901) setup video QR code instruction GR, CZ, HR, LV, LT, SK, SLO, RO, BG, TR, SRB, HU 7.5” X 10.3” 05/30/2018 1901 Κωδικός QR / QR kód / QR kôd / QR kods / QR kodas / QR kód / Koda QR / Cod QR / QR код...
  • Page 25 Dit is de adressenlijst van alle Intex afdelingen. Voor vragen over service of het bestellen van onderdelen, gelieve contact op te nemen met het adres in uw regiogebied. U kunt ook de website www.intexcorp.com bezoeken.
  • Page 26 Ländern der Welt in Lizenz von/Intex Marketing Ltd. to/à/ a/an Intex Development Co. Ltd., Hong Kong & Intex Recreation Corp., P.O. Box 1440, Long Beach, CA 90801 • Distributed in the European Union by/Distribué...
