6-2.Connecting Signal I/O Connector(J1)
(1) Crimp the contact to the cable used for wiring.
(2) Insert the contact into the housing.
Make sure that the housing No. and the connector No. on the main frame are
matched before inserting the contacts.
(3) Connect the housings to the connectors on the main frame.
● The contacts for J1 are 8 pieces.
● When inserting, keep pushing J1 housing into the connectors until it is locked.
Also, check if the contacts are not displaced from the housing.
● In wiring, isolate the J1 signal lines from equipment that may be
a source of noise, the power line and the motor line.
Housing for J1
User
Controller
CWP
CWP
CCWP
CCWP
+COM
M.F
P.O
R.GND
The following items are required:
● Housing for J1 (51103-0800:Molex)
● Contact for J1 (50351-8100:Molex)
● Manually operated crimping tool
for AWG28-22(57295-5000:Molex)
(Surface on which the contacts are inserted)
8
7
6

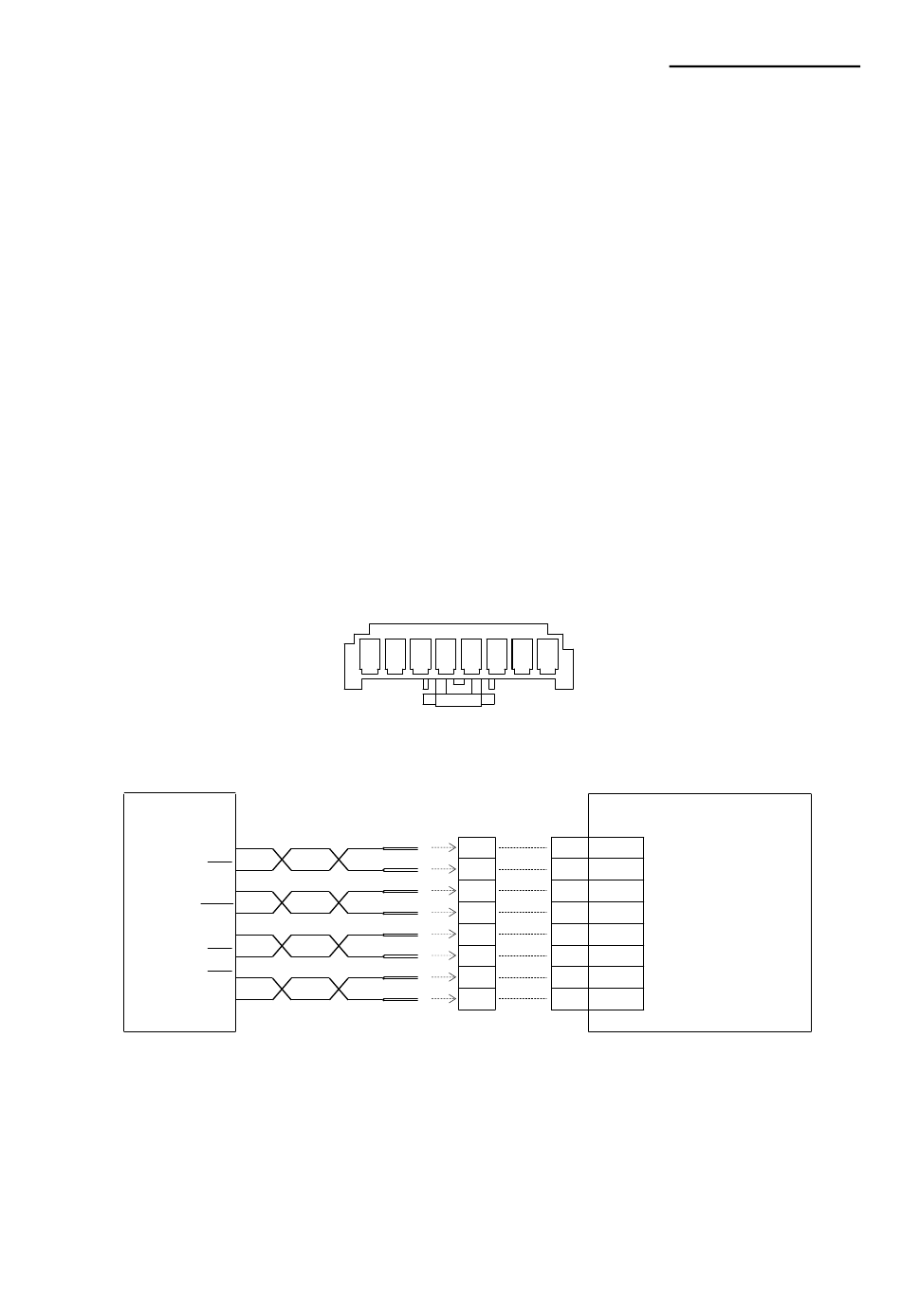

〈Crimping〉
〈Wiring〉 〈Insertion〉
Contact
2
(0.15mm
or more)
5
4
3
2
1
〈Connection〉
Housing
for J1
J1
1
1
CW+
2
2
CW-
3
3
CCW+
4
4
CCW-
5
5
M.F+
6
6
M.F-
7
7
P.O+
8
8
P.O-
-25-
ADB-5K40
Instructions Manual
One unit
8 contacts
One unit
DRIVER
Drive pulse input
Drive pulse input
Motor excitation
stop input
Phase signal output
