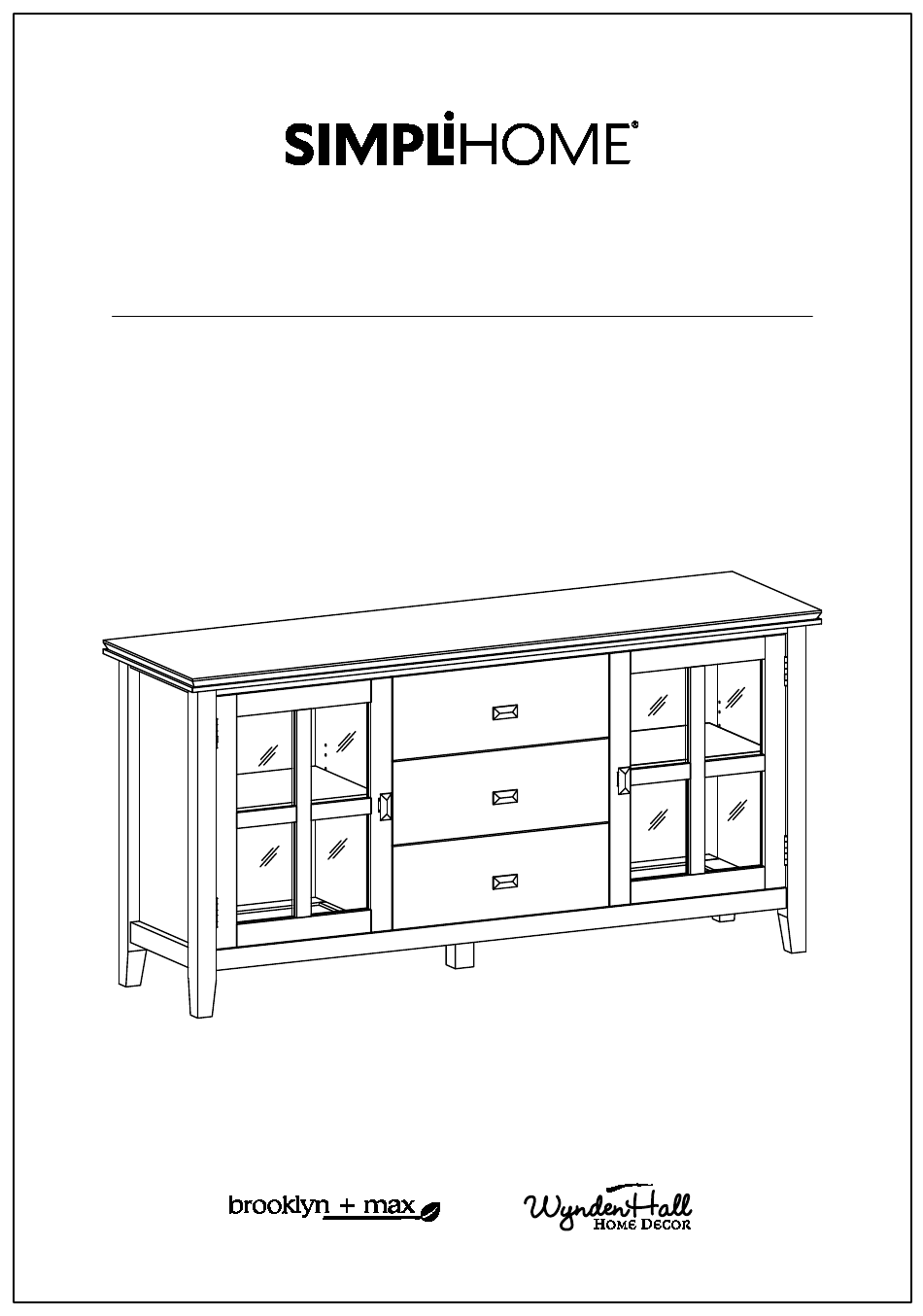

- Page 1 Artisan / Holden / Stratford Large Sideboard Buffet Model # AXCART30-RUS...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. - Page 7 Pre-Assembly Information Model # AXCART30-RUS Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 LEFT DIVIDER BOTTOM SHELF SHELF QTY 1 QTY 1 QTY 2 BOTTOM SUPPORT LEG RIGHT DIVIDER DOOR (L&R Same) QTY 1 QTY 1 QTY 2...
- Page 8 Pre-Assembly Information Model # AXCART30-RUS Part Description Warning Label CENTER TOP BACK PANEL LEFT BACK PANEL RIGHT BACK PANEL QTY 1 QTY 1 QTY 1 DRAWER FRONT CENTER BOTTOM BACK PANEL JOINING STRIP QTY 3 QTY 1 QTY 1 RIGHT DRAWER SIDE LEFT DRAWER SIDE DRAWER BACK QTY 3...
- Page 9 Pre-Assembly Information Model # AXCART30-RUS Hardware Description PHILLIPS SCREW ALLEN KEY SCREW CAM LOCK PIN ALLEN KEY ROUND HEAD M6 X 30mm CAM LOCK QTY 1 M4 X 15mm QTY 30 QTY 18 SETS QTY 32 HANDLE PHILLIPS SCREW PHILLIPS SCREW MAGNET AND PLATE M4 X 30 mm M3 X 12mm...
- Page 10 Components - Key Diagram Model # AXCART30-RUS...
- Page 11 Assembly Model # AXCART30-RUS Step 1 1. Attach four Cam Lock Pins 2 into pre-drilled holes on back of Drawer Front L . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten. Step 2 1. Align Cam Lock Pins with guide holes and attach Drawer Sides ML ,MR to Drawer Front L .
- Page 12 Assembly Model # AXCART30-RUS Step 3 1. Slide Drawer Bottom O firmly into slots on Drawer Sides ML , MR and Drawer Front L . Step 4 2. Align Drawer Back N with Drawer Bottom O and press firmly into slot . 3.
- Page 13 Assembly Model # AXCART30-RUS Step 5 1. Use Phillips screwdriver to attach Handle 5 to Drawer Front L . Repeat Step 1-4 for the two other drawers.
- Page 14 Assembly Model # AXCART30-RUS Step 6 1. Attach three Cam Lock Pins 2 into pre-drilled holes on each part BL , BR . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten.
- Page 15 Assembly Model # AXCART30-RUS Step 7 1. Use thee Allen Key Screws 1 to attach each part EL , ER through guide holes from part C to pre-drilled holes of parts EL , ER . 2. Use Allen Key 3 to tighten Screws. Do not over-tighten.
- Page 16 Assembly Model # AXCART30-RUS Step 8 1. Align Cam Lock Pins with guide holes on Bottom Shelf C and attach Sides BL , BR to Bottom Shelf C . 2. Insert six Cam Locks 2 into guide holes on Bottom Shelf C . 3.
- Page 17 Assembly Model # AXCART30-RUS Step 9 1. Use three Allen Key Screws 1 to attach each part BL , BR , EL , ER through guide holes from each part BL , BR , EL , ER to pre-drilled holes of Top A . 2.
- Page 18 Assembly Model # AXCART30-RUS Step 10 1. Align Bottom Support Leg G with pre-drilled holes on back of Bottom Shelf C . Use Phillips Screwdriver to tighten four Phillips Screws 9 .
- Page 19 Assembly Model # AXCART30-RUS Note: Step 11 Warning Label 1. Attach parts HL , HR , I to back frame by using Phillips Screws 4 . 2. Insert part J into the slot of Plastic Joining Strip K . 3. Insert the entire set of step 2 into bottom edge of Top Back Panel I and attach both panels I , J with screws 4 .
- Page 20 Assembly Model # AXCART30-RUS Step 12 First Step Last Step ( after adjust the door ) 1. Attach hinges on Doors F to Sides BL , BR using Phillips Screws 7 into pre-drill holes: - Using Phillips screwdriver to attach Screws 7 at middle hole of hinges for both top &...
- Page 21 Assembly Model # AXCART30-RUS Step 13 NOTE: The screwdriver is not included in the hardware pack. 1. Attach Magnet Plates 6 to bottom corner of Doors F using Phillips Screws 8 into pre-drilled holes on Doors F . 2. Attach Magnets 6 using Phillips Screws 8 into pre-drilled holes on Bottom Shelf C . 3.
- Page 22 Assembly Model # AXCART30-RUS Step 14 shelf level 1 shelf support anti - tipping shelf level 2 shelf level 3 1. Use four Shelf Supports 10 for each Cabinet Shelf D in desired location. 2. Two Shelf Supports 10 may be used on back top of each Cabinet Shelf D as a tipping restraint.
- Page 23 Assembly Model # AXCART30-RUS Step 15 1. Insert assembled drawers into glides on assembled Sideboard Buffet.
- Page 24 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 16 NOTE: The screwdriver is not included in the hardware pack.
- Page 25 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
