Summary of Contents for Brandt VS1009J

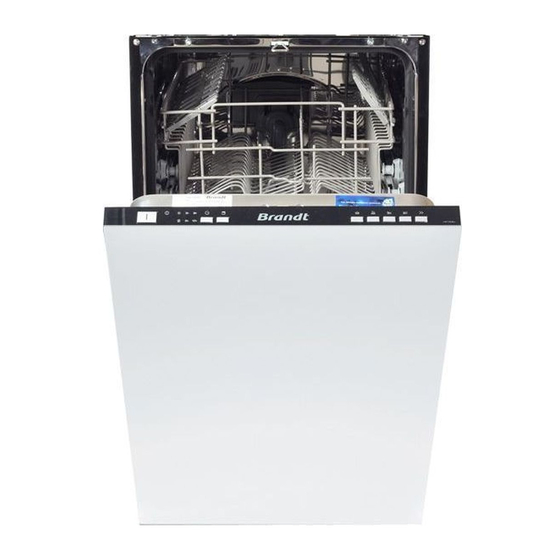

- Page 1 VS1009J...
-
Page 2: Table Of Contents
Dear Customer, Please carefully read this manual before using the dishwasher, it will help you to use and maintain the dishwasher properly. Keep it to refer to it at a later date. Control Panel...........3 Pass it on to any subsequent owner of the appliance. Dishwasher Features...... - Page 3 WARNING! When using your dishwasher, follow the precautions listed below: This appliance must be grounded. In the event of a Improper connection of the equipment-grounding malfunction or breakdown, grounding will reduce conductor can result in the risk of an electric shock. the risk of anelectric shock by providing a path of Check with a qualified electrician or servi ce least resistance of electric current.
-
Page 4: Control Panel
Dispose of the dishwasher packaging material correctly. All packaging materials can be recycled. Plastic parts are marked with the standard international abbreviations: for polyethylene, e.g. sheet wrapping material for polystyrene, e.g. padding material polyoxymethylene, e.g. plastic clips polypropylene, e.g. Salt filler Acrylonitrile Butadiene Styrene, e.g. - Page 5 To get the best performance from your dishwasher, read all operating instructions before using it for the first time. ON/OFF Button / Indicator : To turn on/off t he power supply. Salt Warning Indicator : To be on when the softener needs to be refilled. Rinse Aid Warning Indicator: To be on when the rinse aid dispenser needs to be refilled.
-
Page 6: A、Water Softener
Before using your dishwasher for the first time: Set the water softener Pour 1／2 litre of water inside the salt container and then fill with dishwas her salt Fill the rinse aid dispenser Fill in detergent The water softener must be set manually, using the water hardness dial. The water softener is designed to remove minerals and salts from the water, which would have a detrimental or adverse effect on the operation of the appliance. - Page 7 Always use the salt intended for use with dishwasher. The salt container is located beneath the lower basket and should be filled as explained in the foll owing: Attention! Only use salt specif ically de signed for the use in dishwashers! Every othe r type of salt not specifically designed for the use in a dishwasher, espe cially t able sa lt, will damage the water softe ner.
- Page 8 When to Refill the Rinse Aid Dispenser If there is no rinse-aid warning light in the control panel, you can judge the amount of rinse-aid by the color of the optical level indicator "C" located next to the cap. When the rinse-aid container is full, the whole indicator will be dark .As the rinse-aid diminishes, the size of the dark dot decreases.
- Page 9 Detergents with its chemical ingredients are necessary to remove dirt, crush dirt and transport it out of the dishwasher. Most of the commercial quality detergents are suitable for this purpose. Concentrated Detergent Based on their chemical composition, detergents can be split in two basic types: conventional, alkaline detergents with caustic components low alkaline concentrated detergents with natural enzymes The use of“normal”...
- Page 10 Fill in detergent Fill the detergent dispenser with detergent. The marki ng indicates the dosing levels , as illustrated on the right: The place of main wash cycle detergent placed , “MIN”means approximately 20g of detergent. The place of pre-wash cycle detergent placed , approximately 5g of detergent Please observe the manufacturers dosing and storage recommendations as stated on the detergent packaging.
-
Page 11: Attention Before Or After Loading The Dishwasher Baskets
For best performance of the dishwasher, follow these loading guidelines. Features and appearance of baskets and cutlery baskets may vary from your model. Attention before or after Loading the Dishwasher Baskets Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans. It is not necessary to rinse the dishes under running water. -
Page 12: Loading The Lower Basket
Loading the Lower Basket We recommend that you place large items which are most difficult to clean in to the low er basket: pots, pans, lids, serving dishes and bowls, as shown in the figure to the right. It is preferable to place serving dishes and lids on the side of the racks in order to avoi d blocking the rotation of the top spray arm. -
Page 13: Cutlery Basket
Cutlery Basket Cutlery should be placed in the cutlery basket with the handles at the bottom. If the rack has side baskets, the spoons should be loaded separately into the appropriate slots, especially long utensils should be placed in the horizontal position at the front of the upper basket as shown in the picture. - Page 14 shes and items of cutlery must not lie inside one another, or cover each othe r avoid damage to glasses, they must not touch Load large items which are most difficult to clean into the lower rack he upper rack is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups Attention! Long bladed knives stored in an upri ght position are a potential hazard!
-
Page 15: Wash Cycle Table
Pre-wash(50 ) ℃ For the heaviest soiled loads Pre-wash such as pots,pans,casserole Mainwash ℃) dishes and dishes that have 4/23g 18.5 Rinse been sitting with dried food Rinse on them for a while. Rinse 55 ℃) Drying Pre-wash (50℃) For normally soiled loads, Mainwash 50 ℃) such as pots, plates,glasses... -
Page 16: Turning On The Appliance
Turning on the Appliance Starting a cycle wash 1 Draw out the lower and upper basket, Draw out the lower and upper basket. It is commended that loading the lower basket first, than the upper one (see the section entitled " Loading the Dishwasher "). 2 Pour in the detergent (see the section entitled "... -
Page 17: Filtering System
Switch Off the Dishwasher The buzzer of the dishwasher moos for 8 seconds, only in this case the programme has ended. 1.Switch off the dishwasher by pressing the ON/OFF button. 2.Turn off the water tap! Open the door carefully. Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down around 15 minutes before removing from the appliance. -
Page 18: Caring For The Dishwasher
NOTE： When following this procedure from step1 to step 3, the filter system will be removed; when following it from Step 3 to Step 1, the filter system will be installed. Filter assembly For best performance and results, the filter assembly must be cleaned. The filter efficiently removes food particles from the wash water, allowing it to be recycled during the cycle. - Page 19 To clean the edge around the door, you should use only a soft warm, damp cloth. To avoid penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind. Never use a spray cleaner to clean the door panel as it may damage the door lock and electrical components. Abrasive agents or some paper towels should not be used because of the risk of scratching or leaving spots on the stainless steel surface.
-
Page 20: Please Carefully Read The Installation Instruction
【Figure1】 90 ° 90 ° Cabinet dimensions Less than 5mm between the top 820mm of dishwasher and 580mm Electrical, drain and cabinet and the water supply line entrances outer door aligned to cabinet. Space between cabinet bottom and floor 450 mm 【Figure2】... - Page 21 Install the hook on the aesthetic wooden panel and put the hook into the slot of the outer door of dishwasher(see figure 4a). After positioning of the panel , fix the panel onto the outer door by screws and bolts(See figure 4b) . Hop hook 【Figure4a】...
-
Page 22: Tension Adjustment Of The Door Spring
Tension adjustment of the door spring ● The door springs are set at the factory to the proper tension for the outer door. If aesthetic wooden panel are installed, you will have to adjust the door spring tension. Rotate the adjusting screw to drive the adjustor to strain or relax the steel cable(see figure 5). -
Page 23: Dishwasher Installation Steps
Dishwasher installation steps ● Install the furniture door to the outer door of the dishwasher using the brackets provided. Refer to the template for positioning of the brackets. Adjust the tension of the door springs by using an Allen key turning in a clockwise motion to tighten the left and right door springs. - Page 24 Dishwasher must be level for proper dish rack operation and wash performance. Place level on door and rack track inside the tub as shown to check that the dishwasher is level. level the dishwasher by adjusting the four leveling legs individually. When level the dishwasher, pl s pay attention not to let the dishwasher tip over.
- Page 25 Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place. If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear.
-
Page 26: Before Calling For Service
Fuse blown, or the Replace fuse or reset circuit breaker. Remove any other circuit breaker acted appliances sharing the same circuit with the dishwasher Power supply is not Make sure the dishwasher is turned on and the door is turned on closed securely. - Page 27 The dishes were not See notes in " Loading the Dishwasher Baskets ". loaded correctly. The programme was Select a more intensive programme. not powerful enough. See" Wash Cycle Table ". Not enough detergent Use more detergent, or change your detergent. was dispensed.
-
Page 28: Technical Information
1145 Height : 820mm(adjustable+60mm) Width : 445mm Depth : 540mm Voltage connected Load : see rating label Water pressure: 0.04-1.0MPa Hot water connection : max 60 ℃ Power supply: see rating label Capacity: 9 place settings...
