NIOSH MS6115 User Instruction

User Instruction

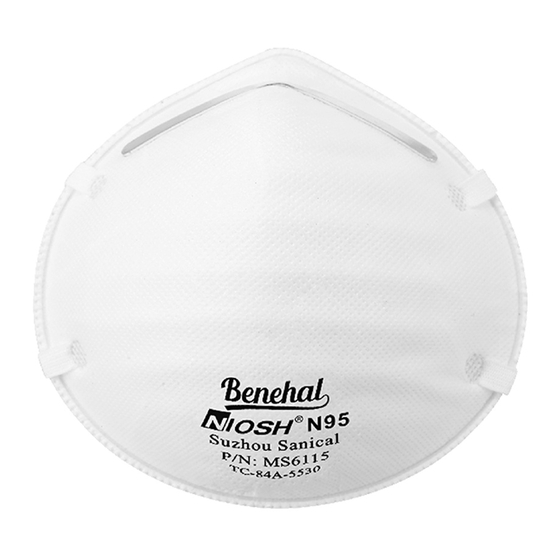

For special fitting demand, N95 respirator MS6115, TC-84A-5530.
Warning
Before occupational use of this respirator, a written respiratory protection program must be implemented meeting all the local
government requirements. In the United States, employers must comply with OSHA 29 CFR 1910.134 which includes medical
evaluation, training, and fit testing.
This respirator helps protect against certain particles. Misuse may result in sickness or death. For proper use, see supervisor,
User Instructions, or call (02) 7505-7425 / (02) 7505-7443.
Company Name: BIOSITE MEDICAL INSTRUMENTS
Address: 512-A Manga St., Juna Subd., Matina, Barangay Matina Crossing 74-4, Talomo District, Davao City,
Davao del Sur, Philippines
TEL: (02) 7505-7425 / (02) 7505-7443
USE LIMITATIONS:
1. Do NOT use the respirator or enter or stay in a contaminated area under the following circumstances:
• Atmosphere contains less than 19.5% oxygen
• Atmosphere contains oil aerosols if using N protection class respirator
• For protection against gases or vapors
• Contaminants or their concentrations are unknown or immediately dangerous to life or health
• Concentrations or contaminants exceed maximum use concentrations in applicable OSHA standards or applicable government regulations or 10
times the PEL (Permissible Exposure Limit), whichever is lower
• For sandblasting, paint-spray operations, asbestos
2. Do NOT modify or misuse the respirator.
3. Do NOT use the respirator with beards or other facial hair that interferes with direct contact between the face and the edge of the respirator, or any
other conditions that may prevent a good face-seal.
WARNING:
This respirator helps protect against certain contaminants. It may not eliminate the risk of contracting disease or infection. Misuse may result in sickness
or death. Materials which may come into contact with the wearer's skin could cause allergic reactions to susceptible individuals.
FOR MORE INFORMATION or assistance please contact with Manufacturer.
FITTING INSTRUCTIONS
Follow these instructions each time respirator is worn.
1. Hold the respirator in one hand with the nosepiece at your fingertips, allowing the headbands to hang below your hand.
2. Press the respirator against your face with the nosepiece on the bridge of your nose.
3. Place the top band high on the back of your head. Move the bottom band over your head and position it below your ears.
4. Place your fingertips from both hands at the top of the metal nosepiece. Using two hands, mold the nose area to the shape
5. Fit-check the face-seal as follows:
USE INSTRUCTIONS:
1. Failure to follow all instructions and limitations concerning the use of the respirator and/or failure to wear the respirator for
2. Before use, the wearer must first be trained by the employer in the correct use of the respirator in accordance with
3. OSHA standards including 29CFR1910.134 (e) (5) and CSA standard Z94.4-93 require that the wearer be fit-tested.
4. Discard the respirator and replace with a new one if:
• Excessive clogging of the respirator causes breathing difficulty.
• The respirator becomes damaged.
5. Leave the contaminated area if dizziness, irritation or other distress occurs.
6. This respirator has been tested and small punctures within ultrasonic welding areas are normal and do not interfere with the
respirator compliance with Part 84 approval requirements: (A) filtering facepieces are to be inspected prior to each use to
assure there are no holes in a breathing zone other than the punctures within ultrasonic welding areas and no damage has
occurred, and (B) enlarged holes resulting from ripped or torn filter material within ultrasonic welding areas punctures are
considered damage.
S-Special Instruction Section:
The model MS6115 filtering facepiece respirator has been manufactured by approval holder Suzhou Sanical for private label
INSTRUMENTS
under TC-84A-5530.
of your nose by pushing inward while moving your fingertips down both sides of the nosepiece.
Warning: Pinching the nosepiece using one hand may result in improper fit and less effective respirator performance.
Use two hands.
• Place both hands over the respirator without disturbing its position.
• Exhale sharply, around the nose and other edge should not be felt air-leak
• If air leaks from the nose place, please re-adjust the nosepiece fellow step 4, if other area air leaks,
please re-adjust head straps position.
WARNING: If you cannot achieve satisfactory fit, do NOT enter the contaminated area. See your Supervisor.
the whole duration of exposure to contaminants can seriously reduce the performance characteristics of the respirator and
lead to illness, injury or death.
applicable safety and health standards.
；
BIOSITE MEDICAL
BMI6115MUI A/0 Date：Oct 28 2021
