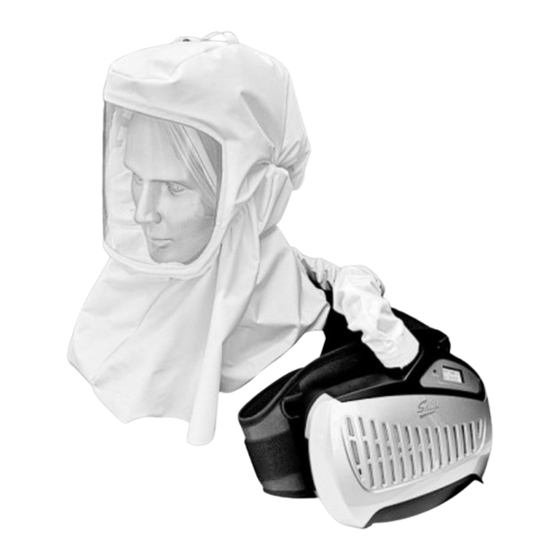

- Page 1 Powered Air-Purifying Respirator P-SH100 Please read this manual carefully before using this unit...
- Page 2 1. INTRODUCTION Respirator System is a combined face and breathing protection device for increased safety and comfort during welding. Please read these instructions carefully before unpacking. For proper use, see user instructions or contact manufacturers for help. THE RESPIRATOR PROTECTION SYSTEM MUST NOT BE USED : In a dangerous environment for the user’s health and safety, an environment with an oxygen level below 19.5% or containing unknown substances.
- Page 5 4. UNPACKING/ASSEMBLY Check that correct number of components has been supplied, as in figure 1. Check that the apparatus is complete, undamaged and correctly assembled. Any damaged or defective parts must be replaced before use. FIGURE 1 The package must include: 1.
- Page 7 4.2 Installing the battery/charging Slide the battery towards the back of the Make sure that the battery is locked in filtration unit. position. The battery can be charged on the filtration unit or separately. The battery is partially charged when delivered. It must be charged at 100% (4 bars) before the first use.
- Page 8 Battery charge : 1. Connect the charger to the mains. 2. Connect the battery to the charger. The connector is above the battery. 3. The state of charge is displayed via a red LED on the mains charger. 4. Once the charge is finished, the floating charge becomes active: the red LED switches off and a green LED switches on.
- Page 10 5. BEFORE USE/ FITTING 5.1 Air flow test Connect the breathing tube to the filtration unit and twist it clockwise to lock it. Insert the flowmeter at the tip of the tube. Press the ON button and maintain the tube The air flow is sufficient if the marble in a vertical position at eyes’...
- Page 11 Part2 Part4 Part5 Part3 Part1...
-
Page 13: Parts List
7. PARTS LIST 7.1 P-SH100 Description Item Part Number Filter Cover P-04 01 001 Pre-filter P-04 03 001 Filter P-04 04 001 Turbo Unit P-04 001 Waist Belt P-05 01 001 Shoulder Harness P-05 02 001 Battery case P-03 001... -
Page 17: Specification
Size 9-2/5 x 6-1/2 x 2-3/4 in. (240 x 165 x 70 mm) (Blower Assembly) Weight 1.1KG Air Filter Filter consisting NIOSH approved prefilter and particle HE filter Air Flow Level 1: 170L/min Level 2: 200L/min Level 3: 230L/min Noise Level...
