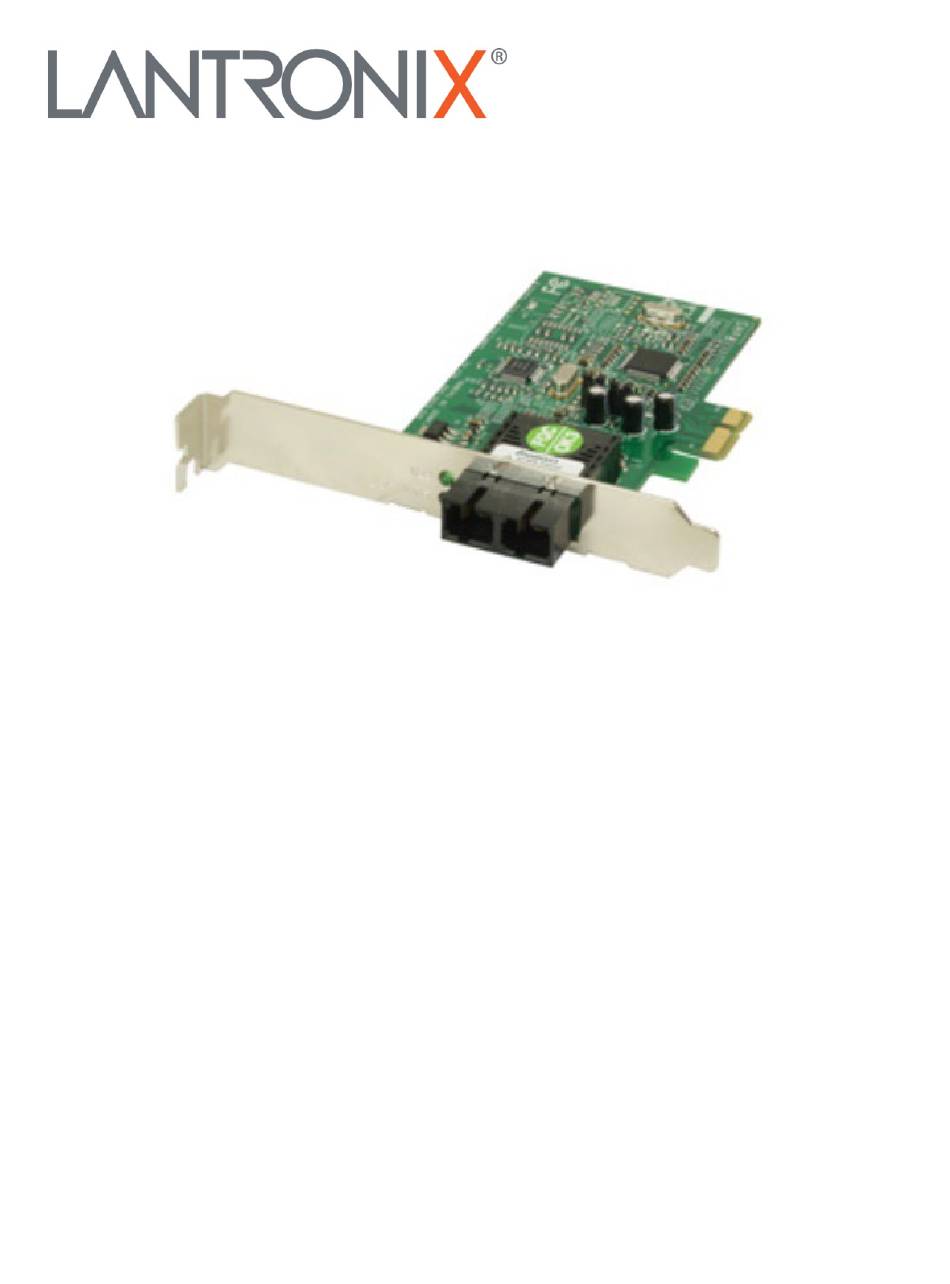

- Page 1 N-FXE-xx-02B 100Base-FX Fiber Adaptor NIC Cards User Guide Part Number 33865 Revision A September 2022...
-
Page 2: Revision History
N-FXE-xx-02B User Guide Intellectual Property © 2022 Lantronix, Inc. All rights reserved. No part of the contents of this publication may be transmitted or reproduced in any form or by any means without the written permission of Lantronix. Lantronix is a registered trademark of Lantronix, Inc. in the United States and other countries. -
Page 3: Table Of Contents
Lantronix N-FXE-xx-02B User Guide Contents Revision History ________________________________________________________________ 2 Contents ______________________________________________________________________ 3 1 Introduction __________________________________________ 4 Product Description ______________________________________________________________ 4 Ordering Information _____________________________________________________________ 4 Features ______________________________________________________________________ 4 For More Information _____________________________________________________________ 4 2 Installation ___________________________________________ 5 Checklist ______________________________________________________________________ 5 LED Indicators __________________________________________________________________ 5... -
Page 4: Introduction
ACPI supported (if PC BIOS supports) • For More Information For Lantronix Drivers, Firmware, Manuals, Product Notifications, Warranty Policy & Procedures, etc. go to the Lantronix Technical Resource Center. Note that this manual may provide links to third party websites for which Lantronix is not responsible. -
Page 5: Installation
Lantronix N-FXE-xx-02B User Guide Installation Checklist Before installing the N-FXE Series NIC, verify that the package contains these items: • Fast Ethernet N-FXE Series 100Base-FX Fiber NIC • Product Post Card Please notify your sales representative immediately if any of these items is missing or damaged. -
Page 6: Installation Procedure
Lantronix N-FXE-xx-02B User Guide Installation Procedure CAUTION: Wear a grounding strap and observe electrostatic discharge precautions when installing the N-FXE. Failure to observe this caution could result in failure or damage of the N-FXE. WARNING: Turn power OFF before installing the N-FXE. -
Page 7: Cable Specifications
Lantronix N-FXE-xx-02B User Guide Cable Specifications Fiber cable Bit error rate: <10-9 Single mode fiber (recommended): 9 μm Multimode fiber (recommended): 62.5/125 μm Multimode fiber (optional): 100/140, 85/140, 50/125 μm N-FXE-ST-02B 1310 nm multimode Fiber optic transmitter power: min: -19.0 dBm max: -14.0 dBm Fiber optic receiver sensitivity: min: -31.0 dBm max: -xx.0 dBm... -
Page 8: Specifications
Lantronix N-FXE-xx-02B User Guide Specifications For model N-FXE-xx-02B: Standards: IEEE 802.3u, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p Bus Slot PCIe 1.1 Data rate: 100Mbps fiber media Status LEDs: LINK/ACT (Link/Activity): ON = communication link; FLASHING = activity on link FDX (Full-duplex): ON = Full-duplex link Software support: Windows Server 2003, 2008, 2012, Windows XP, Vista, Linux 2.4.x,... -
Page 9: Troubleshooting
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Declaration of Conformity Name of Mfg: Lantronix, Inc., 7535 Irvine Center Drive, Suite100, Irvine, CA 92618, USA Model: N-FXE-xxx-02B Network Interface Cards Part Numbers: N-FXE-ST-02B, N-FXE-SC-02B, N-FXE-LC-02B, N-FXE-MT-02B... - Page 10 Irvine, CA 92618, USA Toll Free: 800-526-8766 Phone: 949-453-3990 Fax: 949-453-3995 Technical Support Online: https://www.lantronix.com/technical-support/ Sales Offices For a current list of our domestic and international sales offices, go to the Lantronix web site at www.lantronix.com/about/contact. 33865 Rev. A https://www.lantronix.com...
