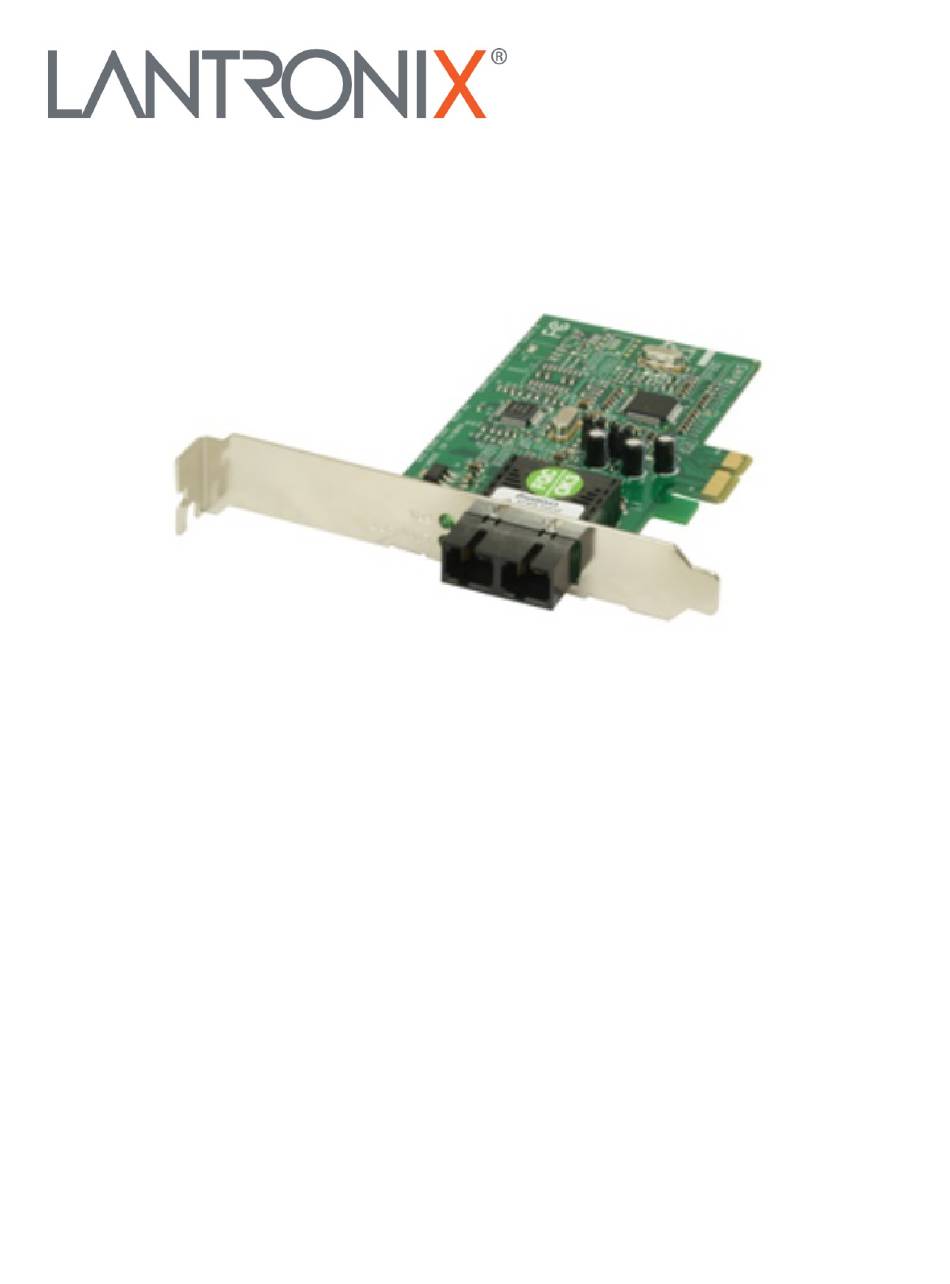

- Page 1 N-FXE-xx-02 100Base-FX Fiber Adaptor NIC Cards User Guide Part Number 33509 Revision D October 2021...
- Page 2 Intellectual Property © 2021 Lantronix, Inc. All rights reserved. No part of the contents of this publication may be transmitted or reproduced in any form or by any means without the written permission of Lantronix. Lantronix is a registered trademark of Lantronix, Inc. in the United States and other countries.
-
Page 3: Revision History
Disclaimer & Revisions All information contained herein is provided “AS IS”. Lantronix undertakes no obligation to update the information in this publication. Lantronix does not make, and specifically disclaims, all warranties of any kind (express, implied or otherwise) regarding title, non-infringement, fitness, quality, accuracy, completeness, usefulness, suitability or performance of the information provided herein. -
Page 4: Table Of Contents
Specifications_____________________________________________________________ 10 3 Related Information Troubleshooting ___________________________________________________________ 11 Diagnostics LEDs ______________________________________________________ 11 Declaration of Conformity ___________________________________________________ 11 Document Links and Lantronix URLs __________________________________________ 11 Legal ___________________________________________________________________ 12 Revision History ___________________________________________________________ 12 Contacts _________________________________________________________________ 13 N-FXE-xxx-02 User Guide, 33509 Rev. D... -
Page 5: Introduction
1: Introduction Introduction This document applies to the Lantronix N-FXE-xx-02 100Base-FX Fiber Adaptor NIC Cards. Product Description The N-FXE-xx-02 Series is a Fiber Fast Ethernet to PCI-Express (PCIe) bus adapter that fully complies with all IEEE 802.3u and 100Base-FX standards. It provides up to 200Mbps full-duplex bandwidth capacity to support high-end systems. -
Page 6: Features
1: Introduction Features PCI-Express x1 Interface • • IEEE 802.3x Full-Duplex Flow Control • Supports Multicast Frame Filtering Supports Asymmetric/Symmetric Flow control • Supports IEEE 802.1Q VLAN tagging • IPv6 Capable • • Wake-on-LAN (WoL) power management • Microsoft certified drivers •... -
Page 7: Installation
2: Installation Installation Checklist Before installing the N-FXE Series NIC, verify that the package contains these items: • Fast Ethernet N-FXE Series 100Base-FX Fiber NIC • Product Post Card Please notify your sales representative immediately if any of these items is missing or damaged. Description The two LED indicators, LINK/ACT and FDX located on the bracket, show network/NIC link activities, collision, and full-duplex statuses. -
Page 8: Installation Procedure
2: Installation Installation Procedure CAUTION: Wear a grounding strap and observe electrostatic discharge precautions when installing the N-FXE. Failure to observe this caution could result in failure or damage of the N-FXE. WARNING: Turn power OFF before installing the N-FXE. To install the N-FXE: 1. -
Page 9: Wake On Lan (Wol)
2: Installation Wake on LAN (WoL) The WoL function on this NIC can recognize a wake-up frame and signal the PC to power up. The default state of the WoL function is enabled (ON), which means pin 2 and pin 3 on J1 (3-pin header) are connected via a jumper, as shown below. -
Page 10: Specifications
2: Installation Specifications For model N-FXE-xx-02: Standards: IEEE 802.3u, IEEE 802.3x, IEEE 802.1q Bus Slot PCIe 1.1 Data rate: 100Mbps fiber media Status LEDs: LINK/ACT (Link/Activity): ON = communication link; FLASHING = activity on link FDX (Full-duplex): ON = Full-duplex link Software support: Windows 2003, 10, NT 4.0, Windows 2008 Server, Vista, Novell NetWare 5.x, 6.x, Linux... -
Page 11: Related Information
Blinks when any traffic is present. Green Lit when full-duplex mode is active. Declaration of Conformity Name of Mfg: Lantronix, Inc., 7535 Irvine Center Drive, Suite100, Irvine, CA 92618, USA Model: N-FXE-xxx-02 Network Interface Cards Part Number: N-FXE-ST-02, N-FXE-SC-02, N-FXE-LC-02, N-FXE-SC5-02, N-FXE-MT-02... -
Page 12: Legal
Terms and Conditions About Our Terms and Conditions • General Terms of Sale • Reseller Terms of Sale • Warranties Lantronix Limited Warranty Policy • Extended Warranties • Licenses About Our Product Licenses • End User License Agreement OEM License Agreement... -
Page 13: Contacts
Toll Free: 800-526-8766 Phone: 949-453-3990 Fax: 949-453-3995 Technical Support Phone: +1.952.358.3601 or 1.800.260.1312 Email: techsupport@transition.com Sales Offices For a current list of our domestic and international sales offices, go to the Lantronix web site at www.lantronix.com/about/contact. N-FXE-xxx-02 User Guide, 33509 Rev. D...
