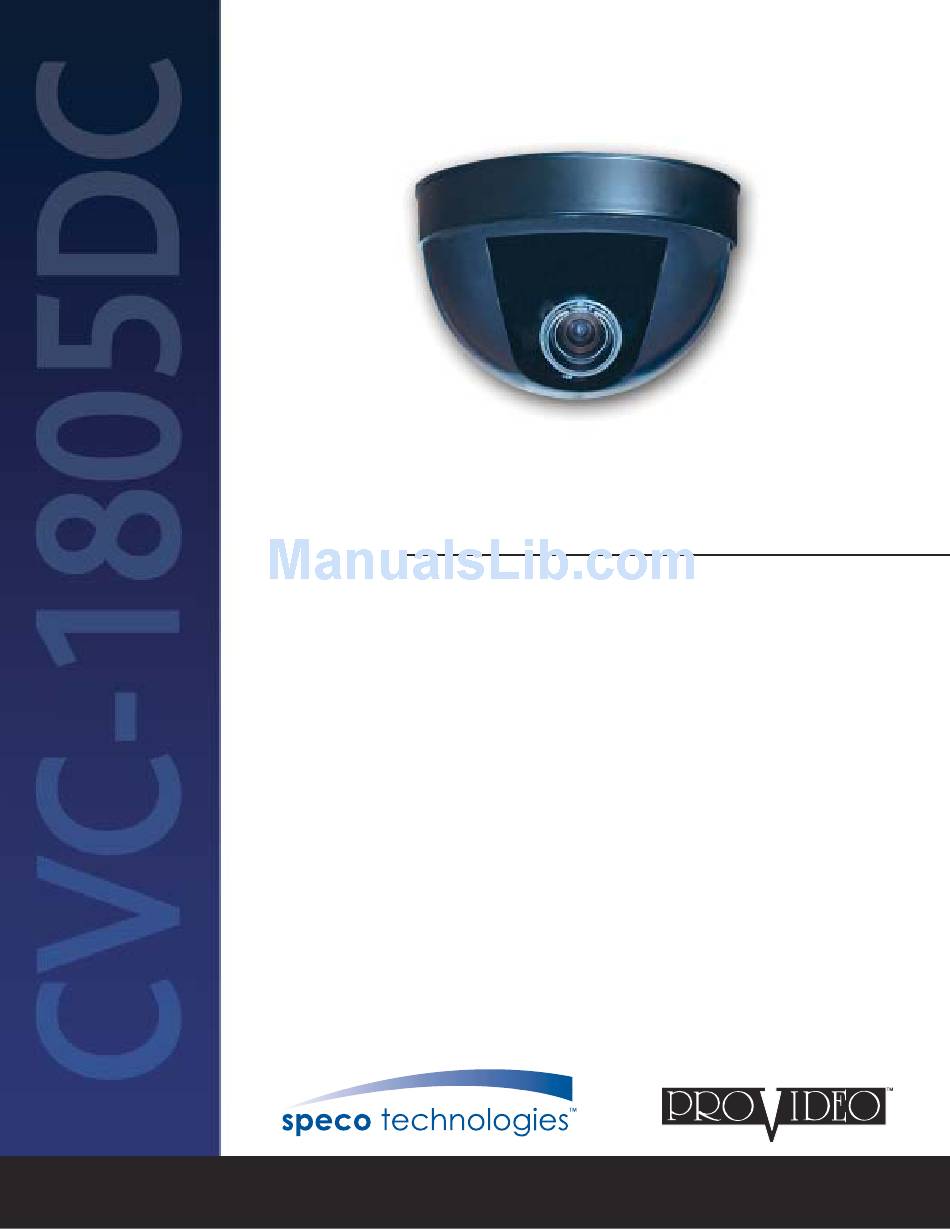

CVC-1805DC
B/W Dome Camera with Varifocal Lens
This 1/3" B/W varifocal dome camera features an adjustable 4-9mm lens with a
built-in electronic shutter. The camera can rotate 360 degrees. It has 0.02 lux low light
sensitivity with 420 lines of resolution. A 12V DC power supply is included. A color
version of this camera can be found under model number CVC-6405DC.
Specifications
Resolution
Image Device
Minimum Illumination
Electronic Shutter
Humidity
Lens
Number of Pixels
Operating Temperature
Output
Power Consumption
Scanning Frequency
Video Output Level
Video S/N Ratio
Power Supply
Housing
Dimensions
Mount
Weight
For more information contact us at:
420 lines
1/3" B/W CCD image sensor
0.02 lux
Auto 1/60 - 1/100,000 second
Within 95 % RH
4-9mm varifocal lens
512 horizontal x 492 vertical
14 degrees F to 122 degrees F
Video BNC , Power- DC jack
120 ma
Horizontal 15.75 kHz vertical 60 Hz
1.0 Volt p-p into 75 ohm
Greater than 48 dB
Regulated 12V DC power supply
(UL and CSA listed) included
Black base and transparent lined dome housing
4.4"L x 4.4"W x 3"H
Ceiling mountable
10.5 oz
