Speco CVC-105CM Specification Sheet

Specifications subject to change.
Speco Technologies 200 New Highway, Amityville, NY 11701 Web: www.specotech.com
Toll Free: 1-800-645-5516 In Metro NY: 631-957-8700 Fax: 631-957-9142 or 631-957-3880

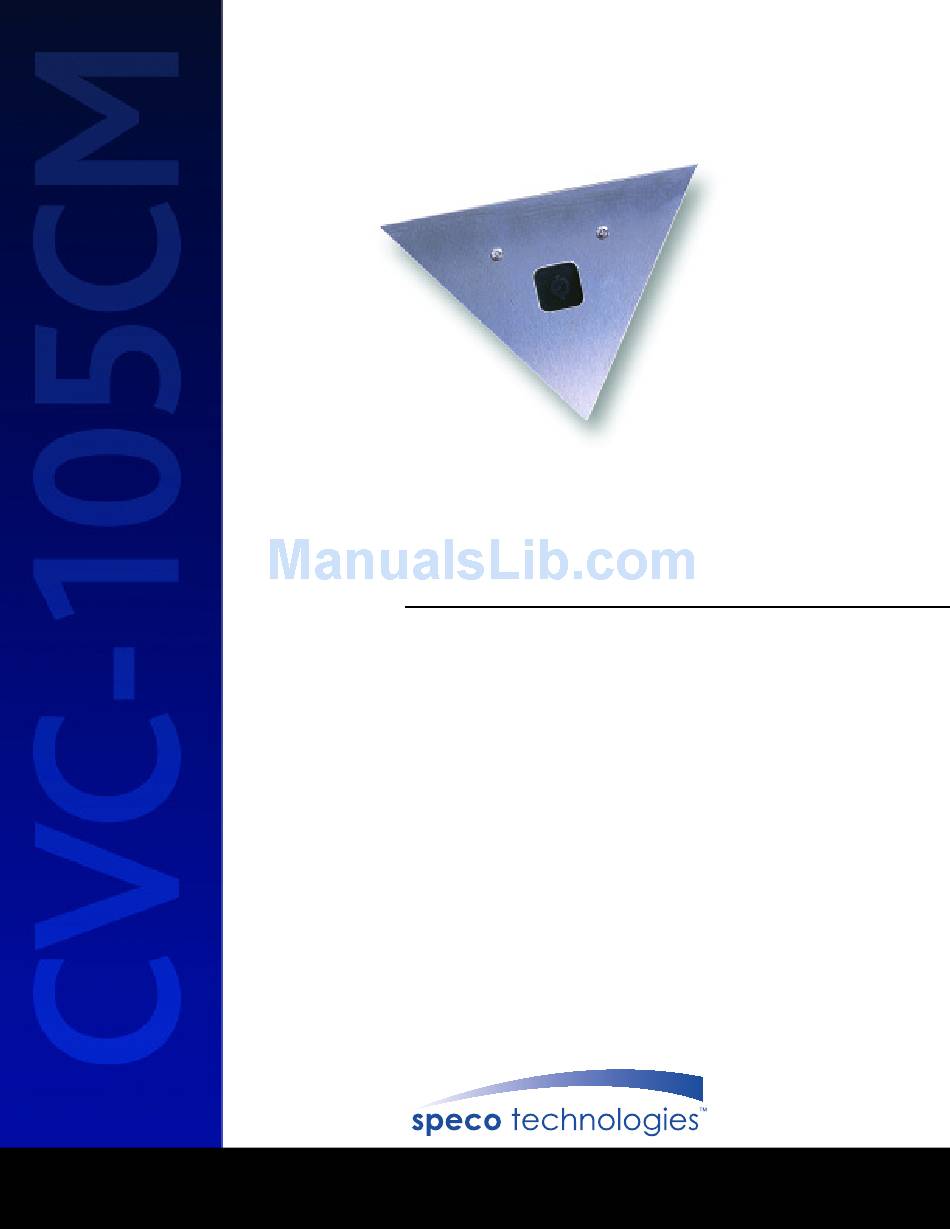

CVC-105CM
B/W Corner Mount Camera
Our corner mount 1/3" B/W CCD camera is housed in an 18 gauge stainless steel enclosure
and can be mounted in the corner of any room, hallway, elevator, or any 90 degree angle corner.
It features a 3.6mm lens* with a built-in electronic shutter and has a 420 line resolution.
A 12V DC power supply is included. The Color version of this camera can be found under
model number CVC-605CM. Both the CVC-105CM and CVC-605CM can be field
converted with a plexiglass mirrored faceplate by retrofitting with model number BCC-MCM.

Specifications

Resolution
Minimum Illumination
Image Sensor
Lens*
Scanning System
Effective Pixel Array
Electronic Shutter
Scanning Frequency
Video S/N Ratio
Video Output Level
Construction
Power Requirements
Dimensions
Weight
*2.5mm ultra wide angle lens option available.
For more information contact us at:
420 line
0.02 lux -F- 1.6
1/3" B/W CCD Image Sensor
3.6mm
NTSC Color 525 TV Lines 60 Field/Sec.
512 (Horizontal) x 492 (Vertical)
Auto 1/60 - 1/100000 Sec
Hor. 15.75Hz-Vert 60Hz
Greater Than 46db
1.0 vp-p 75 ohm
18 Gauge stainless steel with lexan window
12 V DC reg power supply included (UL/CSA listed)
4"L x 9"W x 7"H
1.4 lbs.
