Stamina Avari Fitness A550-043 Owner's Manual

Stamina Avari Fitness A550-043 Owner's Manual

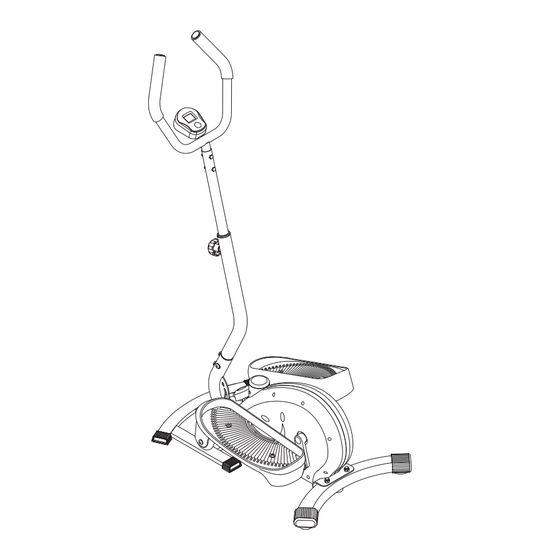

Compact elliptical trainer

Advertisement

Quick Links

Compact Elliptical Trainer
Product May Vary Slightly From Pictured.
CAUTION:
Weight on this product should not exceed 250 lbs.
This Product is Distributed Exclusively by
2040 N. Alliance, Springfield, MO 65803
www.staminaproducts.com
Customer Service
1 (800) 375-7520
Owner's
Manual
WARNING
!
!
Exercise can present a
h e a l t h r i s k . C o n s u l t a
physician before beginning
any exercise program with
this equipment. If you feel
faint or dizzy, immediately
d i s c o n t i n u e u s e o f t h i s
equipment. Serious bodily
i n j u r y c a n o c c u r i f t h i s
equipment is not assembled
and used correctly. Serious
bodily injury can also occur
if all instructions are not
followed. Keep others and
pets away from equipment
when in use. Always make
sure all bolts and nuts are
securely tightened prior to
each use. Follow all safety
instructions in this manual.
When calling for parts or
service, please specify
the following number :
Model#: A550-043
STAMINA PRODUCTS
MADE IN CHINA
©
2013 Stamina Products, Inc.
2013, 04

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Avari Fitness A550-043 and is the answer not in the manual?

Questions and answers

Summary of Contents for Stamina Avari Fitness A550-043

  • Page 1 CAUTION: Weight on this product should not exceed 250 lbs. This Product is Distributed Exclusively by STAMINA PRODUCTS MADE IN CHINA 2040 N. Alliance, Springfield, MO 65803 Customer Service © 2013 Stamina Products, Inc. 1 (800) 375-7520 2013, 04 www.staminaproducts.com...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS Safety Instructions ........2 Maintenance ..........13 Before You Begin ........4 Conditioning Guidelines ......14 Equipment Warning, Caution & Notice Labels ... 5 Warm-Up and Cool-Down ......15 Hardware Identification Chart ....6 Product Parts Drawing ......16 Assembly Instructions ........
  • Page 3 Monday - Thursday, 7:30 A.M. - 5:00 P.M., Central Time. Friday, 8:00 A.M. - 3:00 P.M., Central Time. ONLINE TELEPHONE MAIL CUSTOMER SERVICE CUSTOMER SERVICE CUSTOMER SERVICE STAMINA PRODUCTS, INC. customerservice@staminaproducts.com Tel: 1 (800) 375-7520 Fax: (417) 889-8064 ATTN: Customer Service www.staminaproducts.com P.O. Box 1071 Springfield, MO. 65801-1071...
  • Page 4: Before You Begin

    BEFORE YOU BEGIN Thank you for choosing the AVARI® Compact Although Stamina constructs its products with Elliptical Trainer. We take great pride in producing the finest materials and uses the highest standards this quality product and hope it will provide many of manufacturing and quality control, there can...
  • Page 5: Equipment Warning, Caution & Notice Labels

    EQUIPMENT WARNING, CAUTION & NOTICE LABELS This chart is provided to help identify the warning, caution, and notice labels on the AVARI® Compact Elliptical Trainer. Please take a moment to familiarize yourself with all of the warning, caution, and notice labels. Label is larger than actual size WARNING LABEL(55)
  • Page 6: Hardware Identification Chart

    HARDWARE IDENTIFICATION CHART This chart is provided to help identify the hardware used in the assembly process. Place the washers or the ends of the bolts or screws on the circles to check for the correct diameter. Use the small scale to check the length of the bolts and screws. 3/16" 1/4" 5/16" 3/8" 1/2" INCHES 100 110 120 130 140 150 MILLIMETERS length NOTICE: The length of all bolts and screws, except those with flat...
  • Page 7: Assembly Instructions

    ASSEMBLY INSTRUCTIONS Place all parts from the box in a cleared area and position them on the floor in front of you. Remove all packing materials from your area and place them back into the box. Do not dispose of the packing materials until assembly is completed. Read each step carefully before beginning. If you are missing a part, please go to staminaproducts.com to the Services section and order the part needed, e-mail us at customerservice@staminaproducts.com, or call us toll free at 1-800-375-7520 (in the U.S.). Our Customer Service Staff is available to assist you from 7:30 A.M. to 5:00 P.M. (Central Time) Monday through Thursday and 8:00 A.M. to 3:00 P.M. (Central Time) on Friday.
  • Page 8 ASSEMBLY INSTRUCTIONS NOTE: Refer to the illustration below. The EXTENSION WIRE(80) is connected to the Connection Wire of the METER(22), and there is a strap attached at the lower end of the EXTENSION WIRE(80). Be careful not to damage the sensor wires when processing the following assembly steps. STEP 4: Install two AA batteries into the METER(22), the batteries are not included.
  • Page 9 ASSEMBLY INSTRUCTIONS STEP 7 Connect the EXTENSION WIRE(80) to the SENSOR WIRE(23). Insert the UPRIGHT(68) into the MAIN FRAME(1) and secure with BUTTON HEAD BOLTS(M8x1.25x16mm)(59) and ARC WASHERS(M8)(77).
  • Page 10: Set Up Instructions

    SET UP INSTRUCTIONS Place the AVARI® Compact Elliptical Trainer in the area where it will be used. It is recommended that the AVARI® Compact Elliptical Trainer be placed on an equipment mat. The maximum operation dimensions of the AVARI® Compact Elliptical Trainer are approximately 29 inches long x 18.8 inches wide x 50.3 inches tall. (These dimensions may vary up to one inch.) Make sure that adequate space is available for access to, passage around and emergency dismount from the AVARI®...
  • Page 11: Operational Instructions

    OPERATIONAL INSTRUCTIONS USING THE FITNESS METER POWER ON : Pedal movement or press the button. POWER OFF : Automatic shut off after four minutes of inactivity. FUNCTION BUTTON: Press to select the function value displays of TIME, DISTANCE, and CALORIES. Reset all functions to zero by pressing the button and holding it down for four seconds.
  • Page 12 OPERATIONAL INSTRUCTIONS PRECAUTIONS FOR USING 1. To maintain your balance, always mount or dismount the AVARI® Compact Elliptical Trainer from the lowest foot pedal, refer to the following illustrations. Loss of balance may result in a fall and serious bodily injury. 2.
  • Page 13: Storage

    1. Adjust the TENSION KNOB(21) and verify that the Flywheel System provides tension. The Flywheel System should provide many years of use. 2. Verify that the WARNING LABEL(55) is in place and easy to read. Call Stamina Products immediately at 1-800-375-7520 for a replacement WARNING LABEL(55) if it is missing or damaged.
  • Page 14: Conditioning Guidelines

    CONDITIONING GUIDELINES How you begin your exercise program depends on your physical condition. If you have been inactive for several years or are severely overweight, start slowly and increase your workout time gradually. Increase your workout intensity gradually by monitoring your heart rate while you exercise. Remember to follow these essentials: Have your doctor review your training and diet programs.
  • Page 15: Warm-Up And Cool-Down

    WARM-UP and COOL-DOWN Warm-Up The purpose of warming up is to prepare your body for exercise and to minimize injuries. Warm up for two to five minutes before strength training or aerobic exercising. Perform activities that raise your heart rate and warm the working muscles. Activities may include brisk walking, jogging, jumping jacks, jump rope, and running in place.
  • Page 16: Product Parts Drawing

    PRODUCT PARTS DRAWING FRONT BACK...
  • Page 17: Parts List

    PARTS LIST PART# PART NAME Main Frame Rear Stabilizer Left Pedal Arm Right Pedal Arm Pulley Bearing (6003) Pulley Spacer C Ring (16mm) Screw, Round Head (M5 x 15mm) V-Ribbed Belt Flywheel Bearing (6000) Flywheel Pulley Flywheel Spacer (ø10mm x ø12mm x 24mm) Spacer Cap Flywheel Shaft Bolt (M10 x 1.5 x 82mm) Eyebolt Tension Bracket Brake Brace Spring Tension Knob Meter Sensor Wire Magnet Square Plug (25mm x 25mm) Left Cover...
  • Page 18 PARTS LIST PART# PART NAME Screw, Round Head (M4 x 25mm) Nylock Nut (M6 x 1) Nylock Nut (M8 x 1.25) Nylock Nut (M10 x 1.5) Nut (M10 x 1.5) Washer (M10) Wavy Washer (M16) Warning Label Wrench Allen Wrench (6mm) Manual Bolt, Button Head (M8 x 1.25 x 16mm) Wavy Washer (M17) C Ring (17mm) PU Bushing Square Plug (38mm x 38mm) Crank Cap Large Tension Bracket Double Eyebolt Stabilizer Stand Upright Adjustment Knob Sleeve Handlebar Post Handlebar Foam Grip Round Plug (25.4mm) Bolt, Hex Head (M6 x 1 x 33mm) Arc Washer (M6)
  • Page 19: Warranty

    To implement this limited warranty, send a written notice stating your name, date, and place of purchase and a brief description of the defect along with your receipt to Stamina Products, Inc. P.O. Box 1071, Springfield Missouri, USA, 65801-1071, or email us at customerservice@staminaproducts.com, or call us at 1-800-375-7520.
  • Page 20: Notes

    NOTES...
  • Page 21 NOTES...
  • Page 22: Fax/Mail Ordering Form

    ATTN: Customer Service www.staminaproducts.com P.O. Box 1071 Springfield, MO. 65801-1071 Would you like to recieve email information or special offers from Stamina Products? Register at contact.staminaproducts.com TO REGISTER YOUR PRODUCT TO REGISTER YOUR PRODUCT To enact your warranty, please register your product by going to register.staminaproducts.com. Please have your product model number (printed on the cover of this owner’s manual) and the serial number (printed on the black and white sticker on your...
