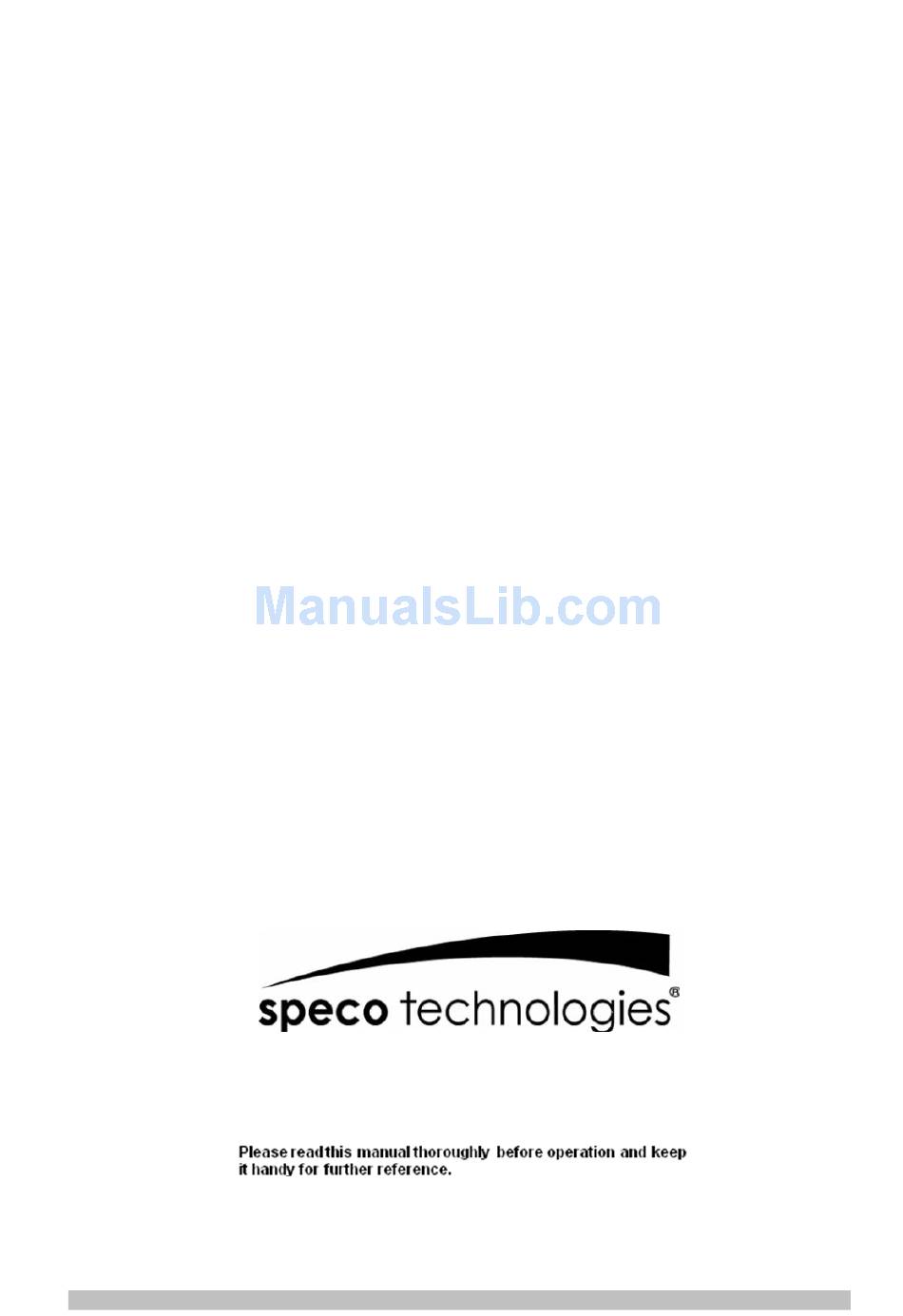

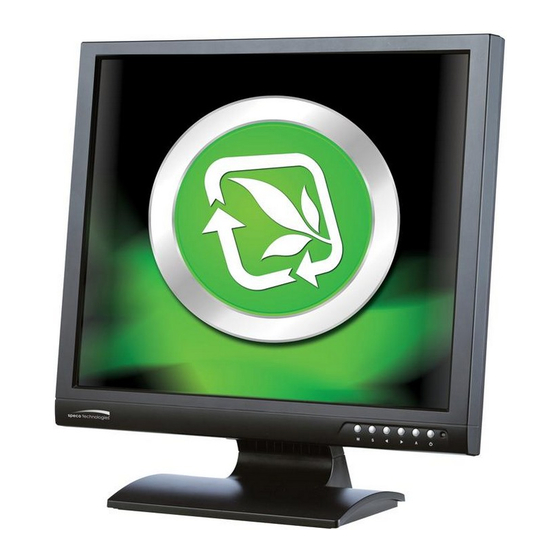

- Page 1 VM17LED – VM19LED 1DU00L5B-A.0...
-
Page 2: Introduction And Package Contents
Introduction and Package Contents Introduction Congratulations on your purchase. You can expect only the sharpest and most brilliant color images from this monitor. Featuring an easy to use OSD control and built in speakers, you will find this monitor both easy to use and a pleasure to look at. Package Contents •... - Page 3 Specifications (VM17LED”, VM19LED”) Size 17” 19” Composite Output (BNC) x 2 Composite Input (BNC) x 2 Single Connector (VGA) x 1, (RCA) x 2 (PC Audio) x 1, (HDMI) x 1 Speaker 1.5W x 2 Display Mode Video 1/ Video 2/ PC/ HDMI AC power AC 100~240V 50/60Hz Temperature...
- Page 4 VGA Timing Item Resolution H Freq.(kHz) V Freq.(Hz) 640x400@70 31.460 70.080 640x480@60 31.469 59.940 640x480@72 37.861 72.809 640x480@75 37.500 75.000 720x400@70 31.460 70.080 800x600@56 35.156 56.250 800x600@60 37.879 60.317 800x600@72 48.077 72.188 800x600@75 46.875 75.000 1024x768@60 48.363 60.004 1024x768@70 56.476 70.069 1024x768@75 60.023...
-
Page 5: Monitor And Osd Control
Monitor and OSD Control Monitor and OSD Control The LED color monitor has a simple control layout for controlling the monitor and OSD (On Screen Display) functions. The table below summarizes the control keys and their related functions. 5-Key feature Keys Function Description Toggle the display between standby mode and on/off. - Page 6 LED Status Display The following table describes the various power states of the LED monitor as represented by different LED color. Power State LED Color Green Standby No power Blank 1DU00L5B-A.0...
-
Page 7: Osd Control Function List
OSD Control Function List OSD Menu Picture Mode 1. Picture Mode Press -/ OR +/ to select the picture mode “User, Standard, Movie, Vivid ” 2. Contrast This is used to set the brightness of the screen. Press -/ OR +/ to adjust the parameter. -
Page 8: Setting Mode
Setting Mode AV/HDMI Mode VGA Mode 1. Language Press -/ OR +/ to select language. 2. H. Position Move the display picture left or right. Press -/ OR +/ to adjust the parameter. 3. H Zoom Adjust the H-size of the display picture Press -/ OR +/ to adjust the parameter. - Page 9 PIP/POP Setup Mode 1. Multi Window Press -/ OR +/ to select “PIP, POP, Off ” mode. 2. Sub Source Press -/ OR +/ to select “AV, VGA” mode. 3. Size Adjust the size of Sub Source window. Press -/ OR +/ to select “Large, Small, Mid ”...
- Page 10 Caring for Your LED Monitor Caring for your LED Monitor The LED color monitor is a sensitive piece of electronic equipment. Proper care can prevent accidentally damaging the LED panel or the monitor itself. By following these guidelines you can ensure many years of trouble free use. 1.
-
Page 11: Frequently Asked Questions
Frequently Asked Questions Power button does not respond • Check the power cord to ensure that it is securely plugged into the monitor base and also into the electrical outlet. • Ensure there is electrical power coming from the AC outlet. Use another device to check for power. -
Page 12: Regulations And Maintenance
Regulations and Maintenance FCC compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 13 Use the type of power indicated on the marking label. ＊ Plugs Do not remove any of the prongs of the monitor’s three-pronged power plug. Disconnect the power plug from the AC outlet under following conditions: ◎ If you will not use it for an indefinite period time. ◎...
- Page 14 1DU00L5B-A.0...
