Dynabrade 4657971919 Disassembly & Assembly Instructions

Hide thumbs

Advertisement

Quick Links

Download this manual
Important: Use these instructions along with the tool parts page or manual.
Notice: To avoid damage, use the special repair tools contained in the 57098 Motor Repair Kit.
Shut off the air supply and deplete air from the hose. Disconnect the tool from the air supply.
Motor Disassembly:
1. Position the 57092 Repair Collar around the housing.
Fasten the sander in a vise with the sanding pad facing up. Notice: Do not over tighten
the sander in the vise. Over tightening will make it difficult to remove the 57059 Lock
Ring. (SEE STEP #3)

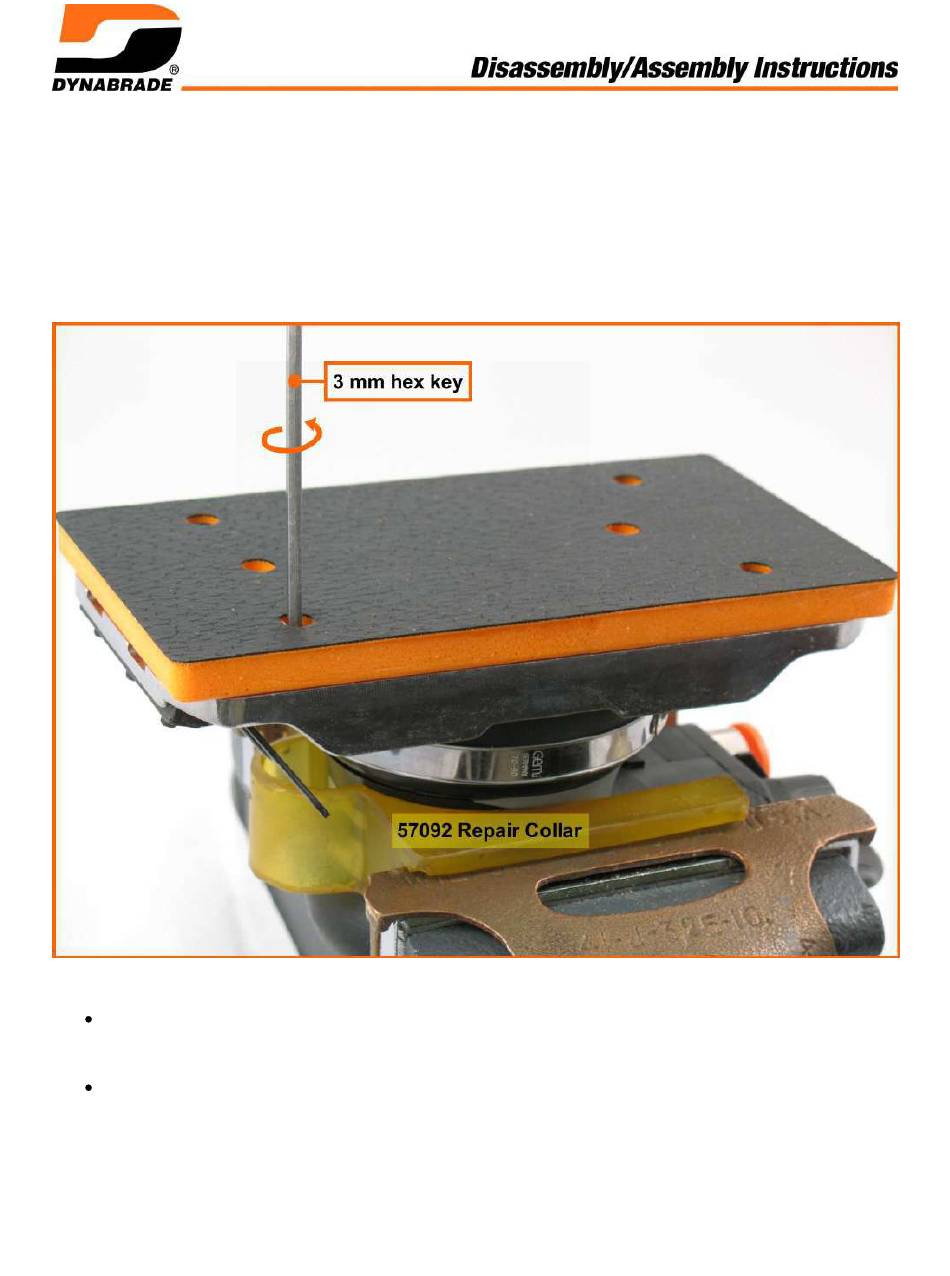

Use a 3 mm hex key to remove the pad screws (4).
Disassembly Instructions – Dynabug Sander
3 mm hex key
57092 Repair Collar
