OWNER'S MANUAL
Mobile Video System

Advertisement

Table of Contents
loading

Related Manuals for Soundstream VIR-4344

Summary of Contents for Soundstream VIR-4344

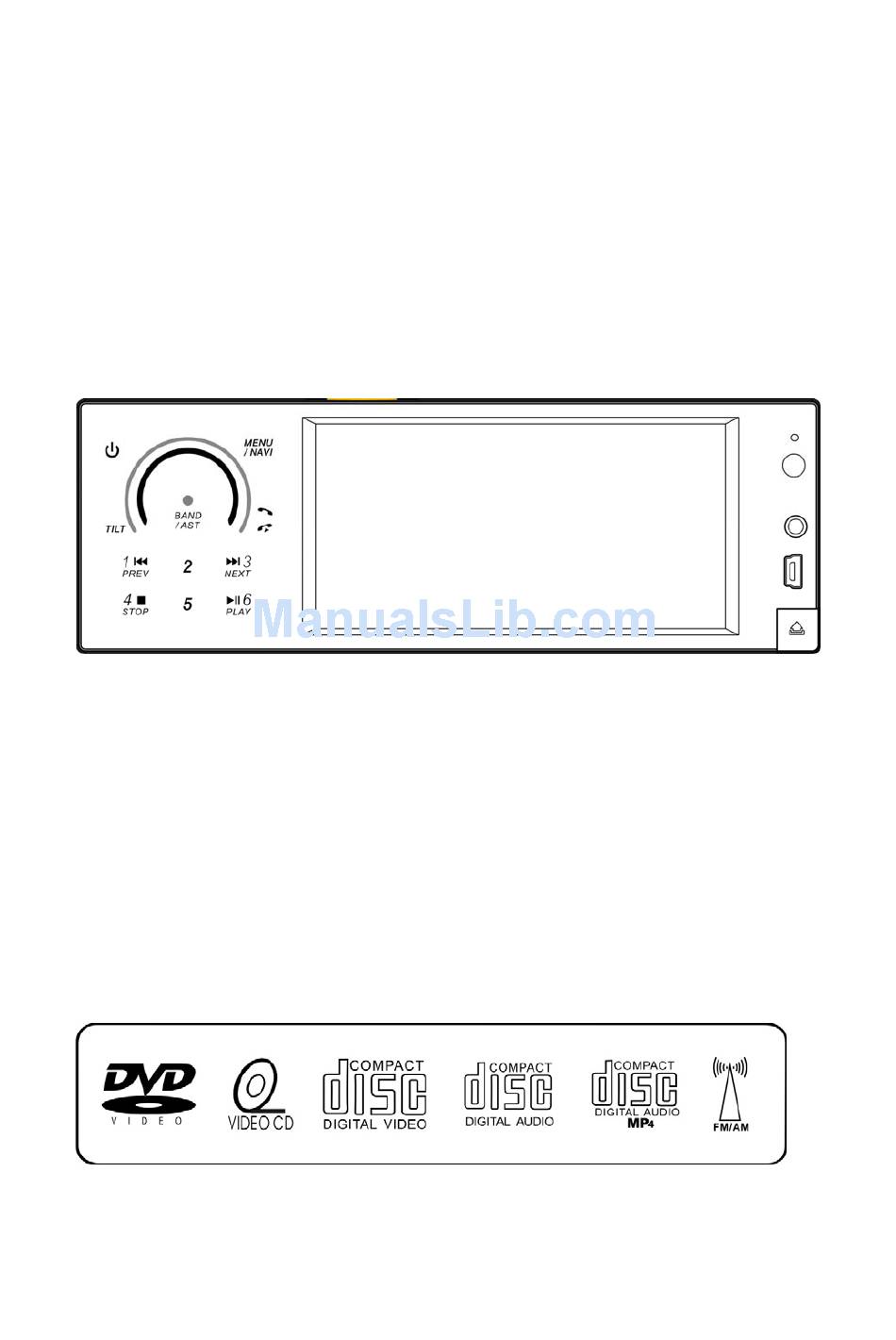

  • Page 1 OWNER’S MANUAL Mobile Video System...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Table of Contents…………………………………….…………….………………………..1 Safety Information………………………………………………….………………………2 Features…………………………………………………………….………………………3 Accessories……………………………………….…….………………………………….4 Wire Connection……………...……………………………..……………………………….5 Unit Installation and Removal………………………….….………………………………8 Front Panel………………………………………………………..…..……………………12 Base Panel.………………………………………………………..…..……………………14 Remote Control……………………………………………………………………………15 Touch Screen Operations………………………………………………….……………20 Touch Screen Calibrate…………………………………….………………………20 Main Menu…………………………………………………….………………………21 Radio Operations…………………………………………………….……………….22 DVD Operations…………………………………………………….……………….23 Bluetooth Operations…………………………………………………….…………28 i-POD Operations………………………………………………….………………..34 SD CARD Operations……………………………………………….………………..35 USB Operations…………………………………………………….………………..35 AV IN Operations…………………………………………………….………………36 AUX IN Operations………………………………………………….………………36...

  • Page 3: Safety Information

    SAFETY INFORMATION Please read the manual carefully before operating this unit and keep it for future reference. CAUTION: This unit is a class 1 laser product. To prevent direct exposure to the laser system, do not open the unit. The laser beam may hurt your eyes. If the unit requires adjustments, contact an authorized service centre.

  • Page 4: Features

    FEATURES • Motorized TFT-LCD w/ 4 Pre-Set Angles & Last Angle Memory • Theft Deterrent Detachable Faceplate • Accepts Add-On GPS Navigation Module, NAVIBOX-1 • Accepts Add-On Digital TV Tuner Module, DTV-1 • Car-Spec DVD Transport for Extreme Temperature Exposure •...

  • Page 5: Accessories

    ACCESSORIES Bolt x 1 Back Strap x 1 Power Wire x 1 Connecter Wire x 1 （White） Trim Bezel x 1 Mounting Sleeve x 1 Faceplate Case x 1 Microphone x 1 M5X5 Screws x 4 Connecter Wire x 1 Operational Manual x1 （Yellow）...

  • Page 6: Wire Connection

    WIRE CONNECTION 1. RADIO & ANALOG TV ANTENNA (OPTIONAL) 2. 15PIN SOCKET 3. AUDIO / VIDEO OUTPUT & INPUT 4. NAVI & DIGITAL TV ADAPTER (OPTIONAL) 5. IPOD ADAPTER - 5 -...
  • Page 7 Brake Control Connect the brake control wire AUTO_ANT (see Wiring Diagram). It is necessary to connect the Brake Control wire to the Hand-brake switch of the car. While driving, the TFT monitor will display the alarm picture (see as follows) in order to ensure the safety.
  • Page 8 Wiring Diagram - 7 -...

  • Page 9: Unit Installation And Removal

    UNIT INSTALLATION AND REMOVEL Installation Method 1: 1 Install the mounting sleeve 2 Bend the claws into place into the dashboard. to secure the sleeve. 3 Slide the units into the mounting 4 Install the trim bezel onto the unit. sleeve.
  • Page 10 Removal Method 1: 1 Detach the face panel by 2 Detach the trim bezel. pushing the release button. 3 Insert the keys into the aperture 4 Pull the unit out of the between the unit and the mounting mounting sleeve. sleeve to release the internal locks.
  • Page 11 Installation Method 2: 1 Tighten the bolt onto the rear 2 Tighten the back strap onto your panel of the unit. car inside the dashboard. 3 Place the unit into the dashboard; 4 Screw the unit on the car on the make the bolt bar across back strap;...
  • Page 12 Removal Method 2: 1 Detach the front panel by 2 Detach the trim bezel. pushing the release button. 4 Unscrew the Nut M5 screw on the rear 3 Unscrew the unit off the car on side of the unit and pull out the unit. the two sides.

  • Page 13: Front Panel

    FRONT PANEL 1. POWER / SOURCE 4. TILT 7. F. REV 10. NEXT 13. MIN USB 16. MIC 1. Power When ACC is on, touch the button to turn the unit on; hold on touching the button to turn off the unit. When the unit is on, touch to switch between different modes.
  • Page 14 TFT Viewing Angle Adjustment: Hold on touching the [TILT] button to adjust the viewing angle as following: Angle 1- Angle 2- Angle 3- Angle 4- Angle 1 Angle 1 Angle 2 Angle 3 Angle 4 5. Next / 10. Previous Touch to go to the next / pervious chapter, track or song.

  • Page 15: Base Panel

    BASE PANEL 17. Reset If the unit ever needs to be reset, you can do so by removing the face plate to gain access to the reset button. Press and hold this button to switch back to all the original factory settings. Keep in mind this will erase all your preset radio stations and any EQ settings you may have made and saved.

  • Page 16: Remote Control

    REMOTE CONTROL 1. POWER/SOURCE 2. MUTE 3. NUMBER BUTTONS 4. MENU / * 5. AUDIO / # 6. EQ / LOUD 7. UP (TUNE UP)/PTY 8. LEFT (SEEK DOWN) 9. ENTER / BAND 10. PROGRAM 11. DOWN(Tune Down)/AF 23. PBC / AST / CLEAR 12.
  • Page 17 1. [POWER/SOURCE] When ACC is on, press the button to turn the unit on; hold on pressing the button to turn off the unit. When the unit is on, press to switch between different modes. 2. [MUTE] Press to switch off the sound; press it again to resume to the previous volume level. 3.
  • Page 18 NAVI Mode, press the [∨] / [∧] buttons to decrease / increase the brightness of the screen. 9. [BAND/ENTER] DVD Mode, press to confirm the selection. Radio Mode, press to switch the wave band as following: FM1 – FM2 - FM3 - AM1- AM2 - FM1 TV Mode, press to switch the TV audio as following: NTSC –...
  • Page 19 18. [OPEN/CLOSE/P.ANGLE/EJECT] Press the button to open the monitor to eject the disc, press it again to close the monitor. Hold pressing the button to enter into adjusting mode, press it again to adjust the angle of the front panel as following: Angle 1 - Angle 2 - Angle 3 - Angle 4 - Angle 1 19.
  • Page 20 32. [A-B/PHONE PAIR] DVD Mode, press to set point A, press it again to set point B, then the unit starts to repeat from A to B. When playing DVD, MP3, press it again to stop repeating. When playing VCD, CD, press it again to repeat all tracks. Bluetooth Mode, press to start phone-pairing.

  • Page 21: Touch Screen Operations

    TOUCH SCREEN OPERATIONS TOUCH SCREEN CALIBRATION When “Power Off”, press the buttons 2, [BAND] of remote control to enter the CALIBRATION page: To touch the points from 1 to 5 until the points change to next cross by using a ballpoint pen or pencil.

  • Page 22: Main Menu

    MAIN MENU 1, Touch to access the DVD mode. 2, Touch to access the Radio mode. 3, Touch to access the NAVI mode. 4, Touch to access the i-POD mode. 5, Touch to access the ATSC mode. 6, Touch to access the SD CARD mode. 7, Touch to access the Bluetooth mode.

  • Page 23: Radio Operations

    RADIO OPERATIONS Touch the [RADIO] icon to access to Radio Mode. 1. Current Source Indicator Displays the source currently playing, touch to return the main menu. 2. Mute Touch to switch off the sound; touch it again to resume to the previous volume level. 3.

  • Page 24: Dvd Operations

    DVD PLAYER OPERATIONS 1, Touch the [DVD] icon to access to DVD Mode if disc inside. 2, The unit will be switched to DVD Mode automatically when inserting the disc. 3, The unit will switch to RADIO Mode automatically if disc ejected. 1.
  • Page 25 1. Capture Image Touch to capture the current playing image and store into memory for background or screen saver. 3. Display Touch to display the current playback information on the screen. 4. Repeat Touch to repeat as CHAPTER-TITLE-ALL-REPEAT OFF when DVD playback. Touch to repeat as TRACK-ALL-REPEAT OFF when VCD/CD playback.
  • Page 26 2. Setup Touch to access the DVD SETUP menu. Touch the [<] / [>] icons to switch the main menus as following: General – Speaker – Dolby Digital – Preference – General Touch the [ ] / [ ] icons to access the submenus from main menus. ∧...
  • Page 27 Screen Saver Select ON or OFF. Last Memory Select ON or OFF. Speaker Setup Page Downmix Following options are available for the Downmix: LT / RT Stereo Dolby Digital Setup Dynamic Following options are available for the Dynamic: FULL 6/8 OFF.
  • Page 28 Preference Page Audio Following options are available for the Audio Language: Danish Swedish Italian Polish Korean Russian Subtitle Following options are available for the Subtitle Language: English French Spanish Danish Swedish Italian Polish Korean Russian Disc Menu Following options are available for the Disc Menu Language: English French Spanish...

  • Page 29: Bluetooth Operations

    BLUETOOTH OPERATIONS Touch the [BLUETOOTH] icon to access the Bluetooth Mode: 1. Current Source Indicator Displays the source currently playing, touch to return the main menu. 2. Mute Touch to switch off the sound; touch it again to resume to the previous volume level. 3.
  • Page 30 1. Auto Answer Touch to select auto / manual answer when call is coming. 2. Phone Connect Touch to select auto / manual phone connect when return back the car. 3. Phone Pairing Touch the icon and the below words on information display: Then set the phone to pair with unit.
  • Page 31 PHONE CALL 1. Call Touch to call a number or receive a cell phone call. Touch to call the last number if no number input. 2. Clear Touch to cancel or clear the numbers you have input. 3. End Call Touch to reject or hang up a call.
  • Page 32 CALL IN When call in, you will see the below image: When talking, you will see the below image: When end the call, you will see the below image: - 31 -...
  • Page 33 PHONEBOOK 1. My Phonebook The phone numbers are stored in phone. 2. SIM Phonebook The phone numbers are stored in SIM card. 3. Dialed Call The phone numbers are dialed in phone. 4. Received Call The phone numbers are received in phone. 5.
  • Page 34 Phone Number List Touch the icon 1~5, when item is changed to yellow color, the item is selected. And touch it again and the item is changed to green color, the operation is active and you will see the below image: 1, Information Display You will see the phone number of the item in blue color.

  • Page 35: I-Pod Operations

    IPOD OPERATIONS (Optional) 1, Touch the [IPOD] icon to switch IPOD Mode if iPod connected. 2, The unit will switch to IPOD Mode automatically if iPod connected. 3, The unit will switch to RADIO Mode automatically if iPod disconnected. Music Page Under the Music Page, it is not effective for the controller of iPod itself, use the keys of unit to control the operation and all operations are same as DVD Mode.

  • Page 36: Sd Card Operations

    Video Page Under the Video Page, use the controller of iPod itself to control all operations of iPod including play music, videos and view pictures. 1. Current Source Indicator Displays the source currently playing, touch to return the main menu. 2.

  • Page 37: Av In Operations

    AV IN OPERATIONS Touch the icon “AV IN” to enter the AV IN Mode: 1. Current Source Indicator Displays the source currently playing, touch to return the main menu. 2. Mute Touch to switch off the sound; touch it again to resume to the previous volume level. NOTE: There are 2 RCA Audio Inputs &...

  • Page 38: Navi Operations

    NAVI OPERATIONS (Optional) Touch Screen Calibration When 1 time to enter NAVI mode, you will see the calibration screen. Please touch the points from 1 to 5 by using a ballpoint pen or pencil. To verify the calibration, please touch the points from 1 to 5 again. Then the following screen is displayed: - 37 -...
  • Page 39 The Touch Screen is restored to their default positions. Touch anywhere of panel to finish the calibration and go to the following screen: Read information and touch “I agree” button at the bottom of the screen, then enter the NAVI mode. NOTE: If change the NAVIbox to connect another unit, please take out the SD card from the NAVIbox and connect with computer, the following screen is displayed on computer:...
  • Page 40 Go to NAVI mode Touch the icon “NAVI” to enter the NAVI Mode if NAVIBOX connected: Following screen will be displayed: Read information and touch “I agree” button at the bottom of the screen. Enter the NAVI mode by main menu, the NAVI operations are effective only, all other processes are disable such as Radio, CD etc.
  • Page 41 Quick Access Key [NAVI] Under any working mode, hold on touching the [MENU/NAVI] button to switch to NAVI mode; hold on touching the [MENUNAVI] button again to return the previous working mode. For example, under Radio mode, hold on touching the [MENU/NAVI] button to switch to NAVI mode;...

  • Page 42: Atsc Operations

    ATSC OPERATIONS (Optional) 1. Current Source Indicator Displays the source currently playing, touch to return the main menu. 2. Mute Touch to switch off the sound; touch it again to resume to the previous volume level. 3. Return Touch to return submenu to menu. 4.

  • Page 43: System Parameters Setup

    SYSTEM PARAMETERS SETUP Touch the [SYSTEM] icon to enter the System Parameters Setup. SCREEN SETUP 1. Contrast Touch [UP] / [DOWN] icons to adjust the CONTRAST parameters (Range: -9 to 9); 2. Tint Touch [UP] / [DOWN] icons to adjust the TINT parameters (Range: -9 to 9); 3.
  • Page 44 4. Sub-Woofer Frequency Touch [UP] / [DOWN] icons to switch the SUB-WOOFER frequency as following: OFF — 80Hz — 120Hz — 160Hz — OFF 5. Buzzer Touch to turn Buzzer on or off; 6. Balance / Fader Touch [LEFT] / [RIGHT] icons to adjust the BALANCE parameters (Range: -9 to 9); Touch [FRONT] / [REAR] icons to adjust FADER parameters (Range: -9 to 9);...
  • Page 45 1. Source Images List Touch [UP] / [DOWN] icons to select the image captured from DVD, SD card and USB. 2. Screen Saver Images List Touch [UP] / [DOWN] icons to select the image of screen saver. 3. Desktop Touch to set the selected image of source images list as desktop image. 4.

  • Page 46: Specifications

    SPECIFICATIONS GENERAL Supply Voltage Load Impedance Max Power Output Bass 100Hz Treble 10KHz Dimensions (approx.) Mounting (approx.) FM TUNER Frequency Range Usable Sensitivity Stereo Separation Frequency Response AM TUNER Frequency Range Usable Sensitivity DVD PLAYER Signal-to-noise Ratio Distortion MONITOR Resolution Brightness Contrast NOTE:...

  • Page 47: Trouble Shooting

    TROUBLE SHOOTING If any of problem persists after checking the below list, Please consult your nearest service dealer. Never attempt to disassemble and repair unit personally. Problem Yellow wire not connected or incorrect voltage Re wire not connected or incorrect Unit will not voltage turn on...
  • Page 48 Problem No video display Reverse circuit not connected (when in Vehicle is not in reverse reverse) Front panel will Front panel obstructed open/close Flashing image DVD is not compatible with or interference current TV system settings appears on Image blurred, distorted, or dark screen Prolonged image Improper video signal...

  • Page 49: Disc Notes

    DISC NOTES ■ Disc formats supported by this player Handling and Cleaning ● Dirty, dusty, scratched or warped discs will cause misoperation. ● Do not place stickers or make scratches on discs. ● Do not warp discs. ● A disc should always be kept in its case when not in use to prevent from damage. ●...
