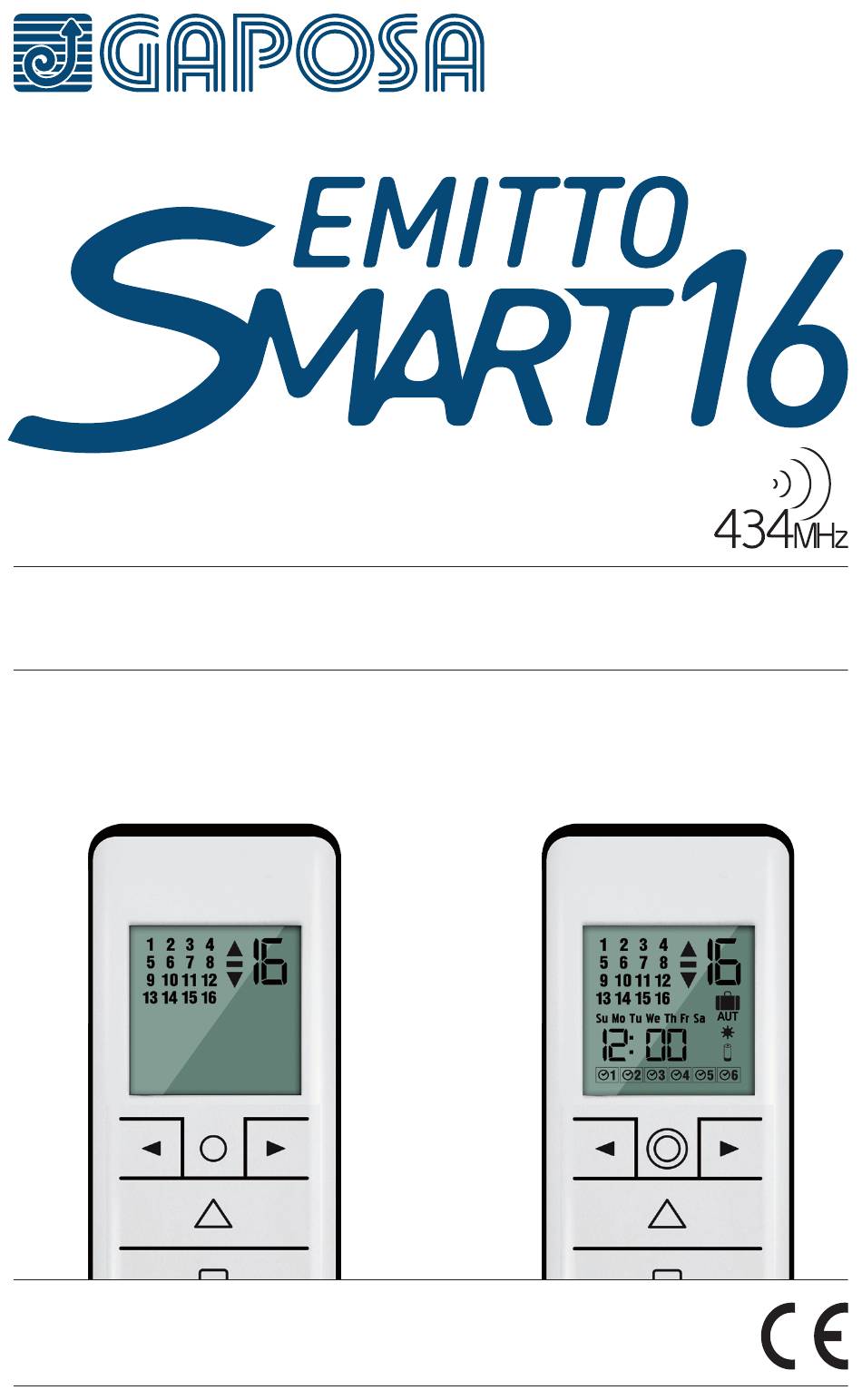

- Page 1 Transmitters QCTZ16Y QCTZ16SY channels handheld 16 channels handheld display remote display remote with timer Made in Italy...
- Page 2 INDEX TECHNICAL DETAILS BUTTONS AND FUNCTIONS SELECTING A CHANNEL/GROUP CUSTOMIZATION OF THE GROUPS DELETING GROUPS HIDING CHANNELS PROGRAMMING TRANSMITTER ADDING TRANSMITTER CHECKING/CHANGING DIRECTION ERASING TRANSMITTER RESET MOTOR MEMORY TRANSMITTER FACTORY RESET LIMIT SWITCH SETUP AUTOMATIC SETTING OF THE LIMITS INTERMEDIATE POSITION CLOCK SET-UP CREATING OR EDITING A SCHEDULE SCHEDULE DELETION...
-
Page 3: Technical Details
Please read this guide carefully before installing and using this product. Any use outside the sphere of application defined by GAPOSA is prohibited. This invalidates the warranty and discharges GAPOSA of all liability, as does any failure to comply with the instructions given herein. Never begin installing without first checking the compatibility of this product with the associated equipment and accessories. -
Page 4: Push Buttons
PUSHBUTTONS SYNC LIMIT STOP DOWN Select channel Single channel mode/ SYNC Program the transmitter Group control mode LIMIT Set the limit switch... - Page 5 PROGRAMMING SELECTING A CHANNEL/GROUP When pressing the circle button sequentially the modes can be switched from single channel control mode to group control mode. Single channel control mode: scroll the channels with the arrow buttons (◄ / ►). Each channel is identified by a number. Group control mode*: the first group to appear is the all channels group.
- Page 6 PROGRAMMING CUSTOMIZATION OF THE GROUPS Briefly press the circle button to enter in group control mode To create a group press both arrow buttons (◄ + ►) for 2 seconds. 2” The icon appears and channel 1 starts flashing. Using the arrow buttons (◄ / ►), scroll to the channel to be set into the group Press for 2 seconds both arrow buttons (◄...
-
Page 7: Deleting Groups
PROGRAMMING DELETING GROUPS Enter the group screen by pressing the circle button. Press and hold the circle button until appears on screen then press the STOP button to enter the delete groups mode. Page through the saved groups using the left and right arrow buttons. Once the group that needs to be deleted is selected Press the STOP button to confirm the... -
Page 8: Hiding Channels
PROGRAMMING HIDING CHANNELS Enter the channel screen by pressing the circle button. Press and hold the circle button until appears on screen. then press the STOP button to enter the hide channel mode. Once the required hidden channels are selected Press the STOP button to confirm the hidden channels. -
Page 9: Programming Transmitter
PROGRAMMING PROGRAMMING TRANSMITTER CAUTION: If more motors with receiver have to be installed, it is important to power up only one motor at time during the first programming session, in order to avoid any interferences with others. Power up the motor to be programmed. Press and hold the SYNC button until the motor starts moving. - Page 10 PROGRAMMING ADDING TRANSMITTER Press and Hold the SYNC button of a transmitter already paired until the motor starts moving. Check the rotation of the motor, then release the SYNC button (the motor stops). Within 5 seconds press the corresponding button (i.e. UP if the motor rotates upwards or DOWN if vice versa) on the new transmitter being added.
- Page 11 PROGRAMMING CHECKING/CHANGING DIRECTION IMPORTANT: change direction must be performed before starting limit setting otherwise limits must be reset. Press UP or DOWN the motor should go UP or DOWN, otherwise to change direction: Press and hold the SYNC button until the motor starts moving Press STOP: The motor makes a brief jog.
- Page 12 OPTION 2 - Without an already programmed transmitter Switch the motor power supply OFF. Then switch it ON. Within 8 seconds, using any Gaposa transmitter, press and hold both the SYNC and STOP buttons until the motor makes a long jog.
- Page 13 PROGRAMMING TRANSMITTER FACTORY RESET The factory reset will un-hide any hidden channels and delete all custom groups. Remove the battery. Press and hold the circle button while reinserting the battery. Once the screen comes back on and displays , the circle button can be released.
-
Page 14: Limit Switch Setup
LIMIT SWITCH LIMIT SWITCH SETUP (Just for motors with electronic limit switch) ATTENTION: ALWAYS SET THE UP LIMIT FIRST Push the LIMIT button until the motor makes a brief jog. Note: during “programming mode” the operations are in “deadman control” Press and hold the UP button and run the motor to the desired UP limit position. -
Page 15: Intermediate Position
INTERMEDIATE POSITION INTERMEDIATE POSITION SETUP (Just for motors with electronic limit switch) Stop the shutter/awning in the desired intermediate position. Press simultaneously the UP and DOWN buttons until the motor makes a brief movement in both directions. The intermediate position has been setup. RECALLING THE INTERMEDIATE POSITION Keep the STOP button pressed at least for at 3”... -
Page 16: Timer Functions
TIMER FUNCTIONS CLOCK SET-UP (Note: The clock is in 24-hour format) From the channels or groups screen, press and hold the circle button until appears on the screen. Press the circle button again and the timer/ clock screen will appear. Press the STOP button to enter the menu. - Page 17 TIMER FUNCTIONS CREATING OR EDITING A SCHEDULE After setting the clock, from either the channels or groups screen, press and hold the circle button until appears on the screen. Press the circle button again two times until the screen is reached. Press the STOP to enter the menu.
- Page 18 TIMER FUNCTIONS SCHEDULE DELETION From the channels or groups screen, press and hold the circle button until appears on the screen. Press the circle button again three times until appears on screen. Press the STOP button to enter the menu. Select the schedule to be deleted and press the STOP button to confirm.
-
Page 19: Battery Substitution
Insert the new battery respecting the correct polarity. IMPORTANT: Battery contains polluting substances. After removing, throw it in the designated batteries collection points. GAPOSA Inc. 300 Schell Lane Suite 306 - Phoenixville, PA 19460 USA Tel. 484.927.4385 - info@gaposa.com www.gaposa.com...
