Summary of Contents for GAPOSA Emitto Smart 16 QCTZ16Y

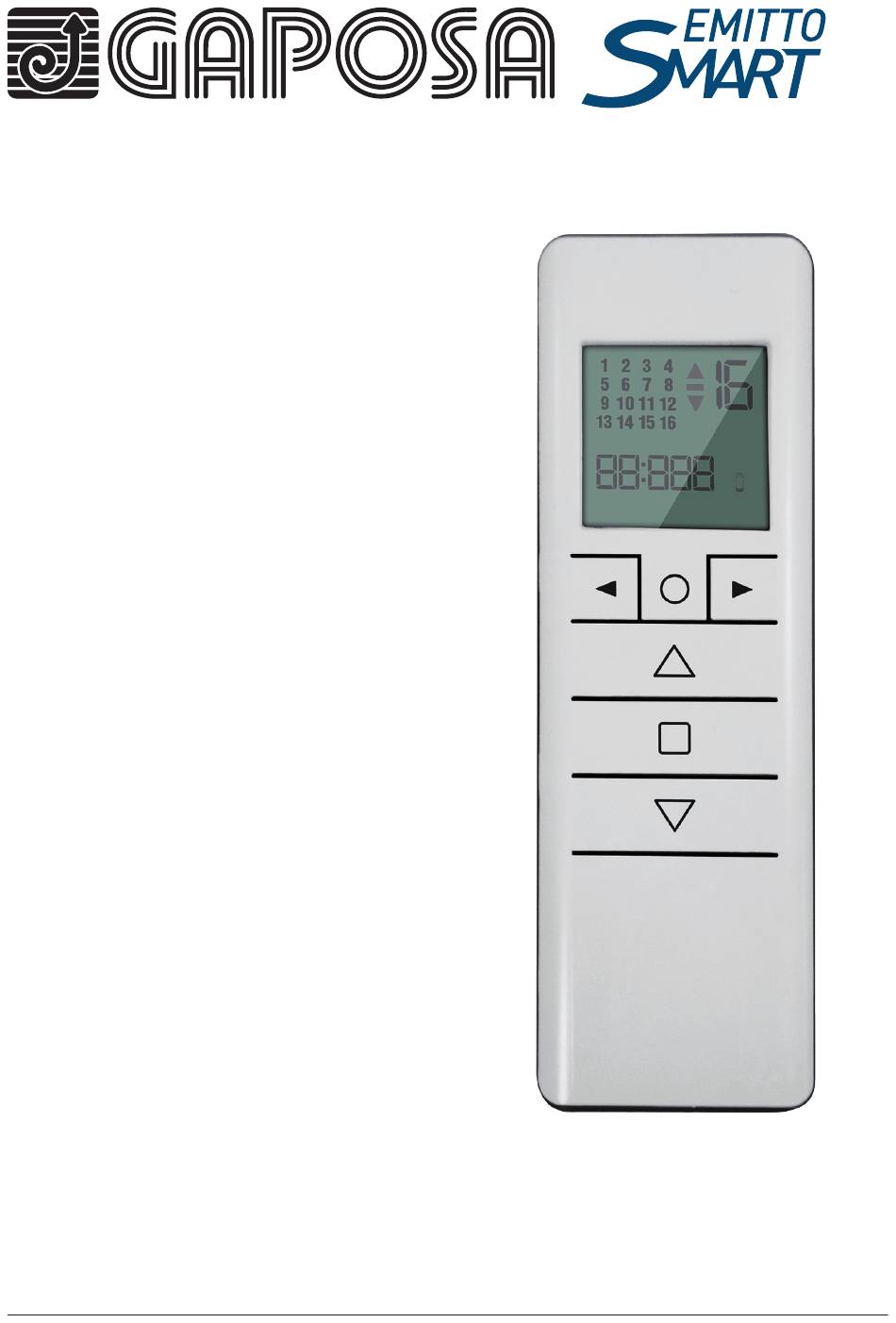

- Page 1 QCTZ16Y 16 channels hand held display remote INSTALLER MANUAL TECHNICAL DATA Radio frequency: 434.15 MHz Protection rating: IP 30 Operating temperature: 0°C to + 60°C (+ 32°F to + 140°F) Dimensions: 150 x 47 x 12 mm Power supply: 1 x 3V 2450 Lithium battery...
- Page 2 Any use outside the sphere of application defined by GAPOSA is prohibited. This invalidates the war- ranty and discharges GAPOSA of all liability, as does any failure to comply with the instructions given herein. Never begin installing without first checking the compatibility of this product with the associa- ted equipment and accessories.
- Page 3 SELECTING A CHANNEL/GROUP When pressing the circle button sequentially the modes can be switched from single channel control mode to group control mode. Briefly press the circle button to enter single channel mode, scroll the channels with the arrow buttons (◄ or ►): each channel is identi- fied by a number.
- Page 4 PROGRAMMING TRANSMITTER (Fig.1) CAUTION: If more motors with receiver have to be installed, it is important to power up only one motor at time during the first programming session, in order to avoid any interferences with the others. 1. Power up the motor to be programmed. 2.
- Page 5 OPTION 2 (Fig. 5) - Without an already programmed transmitter 1. Switch the motor power supply OFF. Then switch it ON. 2. Within 8 seconds, using any Gaposa transmitter, press and hold both SYNC and STOP buttons until the motor makes a long jog. Memory is now empty.
- Page 6 AUTOMATIC SETTING OF THE LIMITS (Just for motors with electronic limit switch) For limits set with torque sensor ( mechanical stop of shutters or cassette awnings/shades), press and hold UP button until the bottom bar hits the cassette or shutter box. A short jog will indicate that the UP position has been memorized.
- Page 8 GAPOSA Inc. GAPOSA srl 3920 Providence Road via Ete, 90 - 63900 Fermo - Italy Newtown Square PA 19073 T. +39.0734.220701 - F. +39.0734.226389 info@gaposa.com - www.gaposa.com Ph. 610 325 3697 info@gaposa.com QCTZ16Y_0220...
