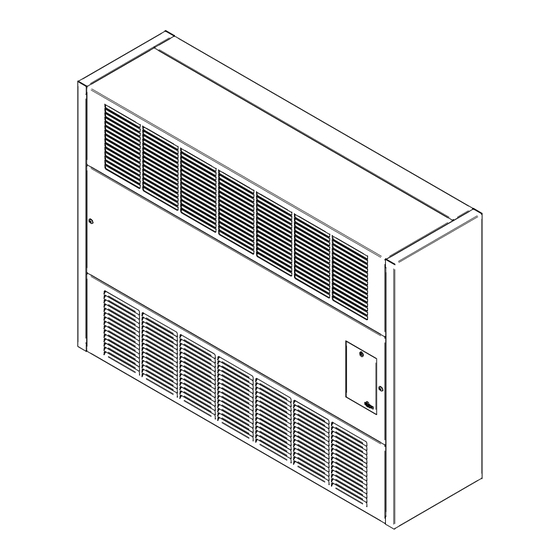

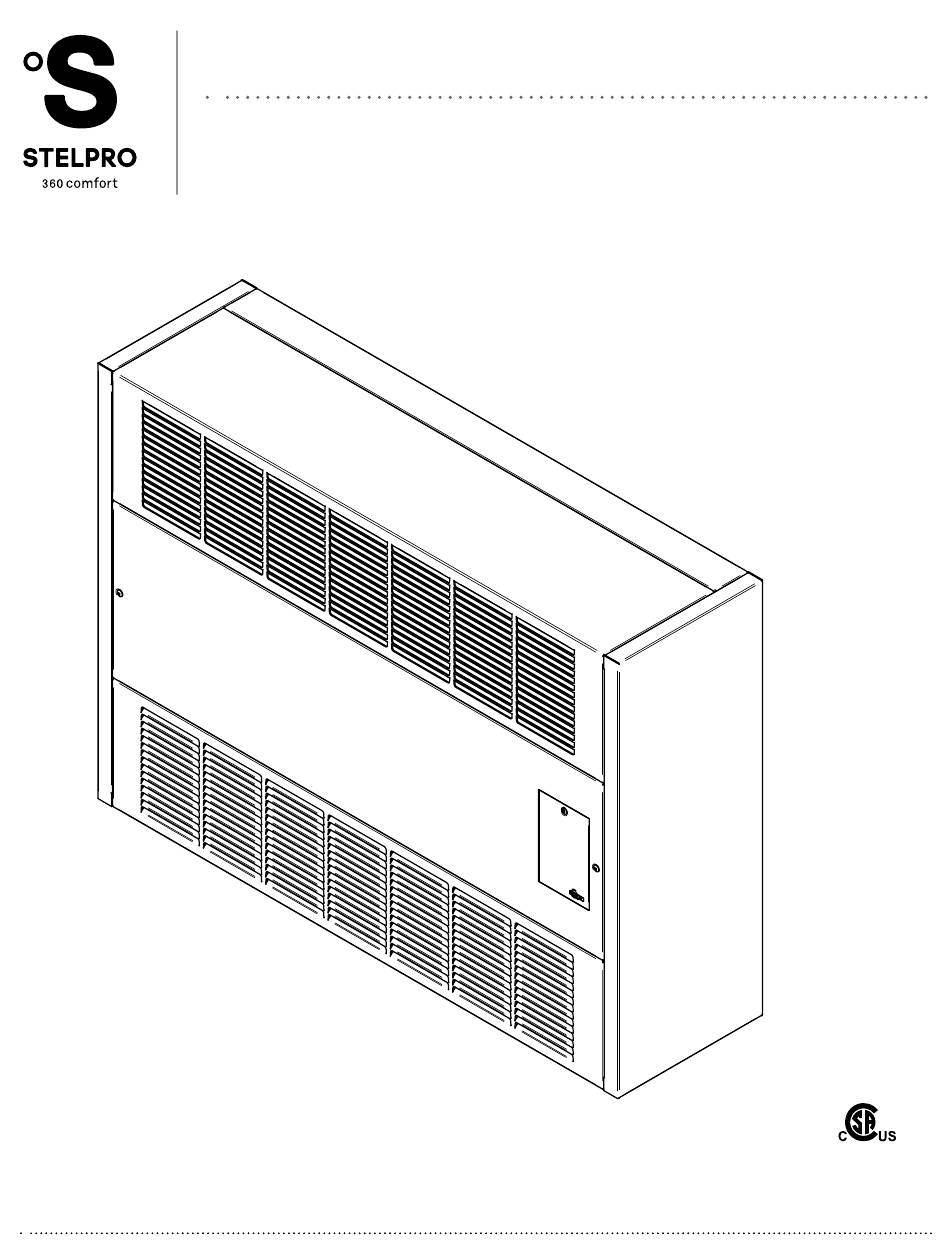

- Page 1 USER’S GUIDE ACBH SERIES CABINET HEATER REPLACEMENT COMPONENT LIST INCLUDED This unit complies with CSA and UL standards For further information or to consult this guide online, please visit our website at www.stelpro.com INSACBH0522...
- Page 2 If an option must be added, make sure it has been approved by Stelpro. This way, it will ensure that it has been tested in accordance with our safety rules and that an appropriate installation has been planned into the unit.
- Page 3 TECHNICAL DRAWINGS AND SPECIFICATIONS TECHNICAL DRAWINGS MODELS LENGTHS: 24"/36"/48" 6 7/8" 1 1/8" 175mm 29mm 5" ONLY ON 126mm CBH36"/48" 1 3/16" 10" 29mm 254mm 7/8" 22mm 26" 660mm 7/8" 22mm 1 15/16" 49mm 1 1/8" 5" 29mm FRONT 126mm 6 7/8"...
- Page 4 Stelpro recommands 8’ from the floor for units of 6000 W and less and 12’ for units of 8000 W and more. Units with BT and BF air inlets and outlets must be installed at least 8’...
- Page 5 INSTALLATION, OPERATION AND MAINTENANCE OPTIONS The ACBH can be installed on a wall or a ceiling, surface mounted, recessed or semi-recessed with a 4-piece frame. 24 in. units 24 1/2" [623 mm] 36 in. units 36 1/2" 27 1/2" [927 mm] 3"...
- Page 6 OPERATION, MAINTENANCE AND REPLACEMENT COMPONENTS LIST ELECTRICAL WIRING N.B. Cut off power supply at circuit breaker/fuse before proceeding to the installation and wiring connections. This product must be connected by a certified electrician, according to the electrical and building codes effective in your region. Consult the wiring plan found on the unit.
- Page 7 REPLACEMENT COMPONENTS LIST REPLACEMENT COMPONENT LIST REF # PART # DESCRIPTION REF # PART # DESCRIPTION REF # PART # DESCRIPTION ELF-CBH1583 ELEMENT (KIT) 15KW 208V 3PH ELF-CBH0261 ELEMENT (KIT) 2KW 600V 1PH ELF-CBH0881 ELEMENT (KIT) 8KW 208V 1PH ELF-CBH0253 ELEMENT (KIT) 2KW 480V 3PH ELF-CBH0883 ELEMENT (KIT) 8KW 208V 3PH...
- Page 8 Stelpro reserves the right to examine or to ask one of its representatives to examine the product itself or any part of it before honoring the warranty. Stelpro reserves the right to replace the entire unit, refund its purchase price or repair a defective part.
