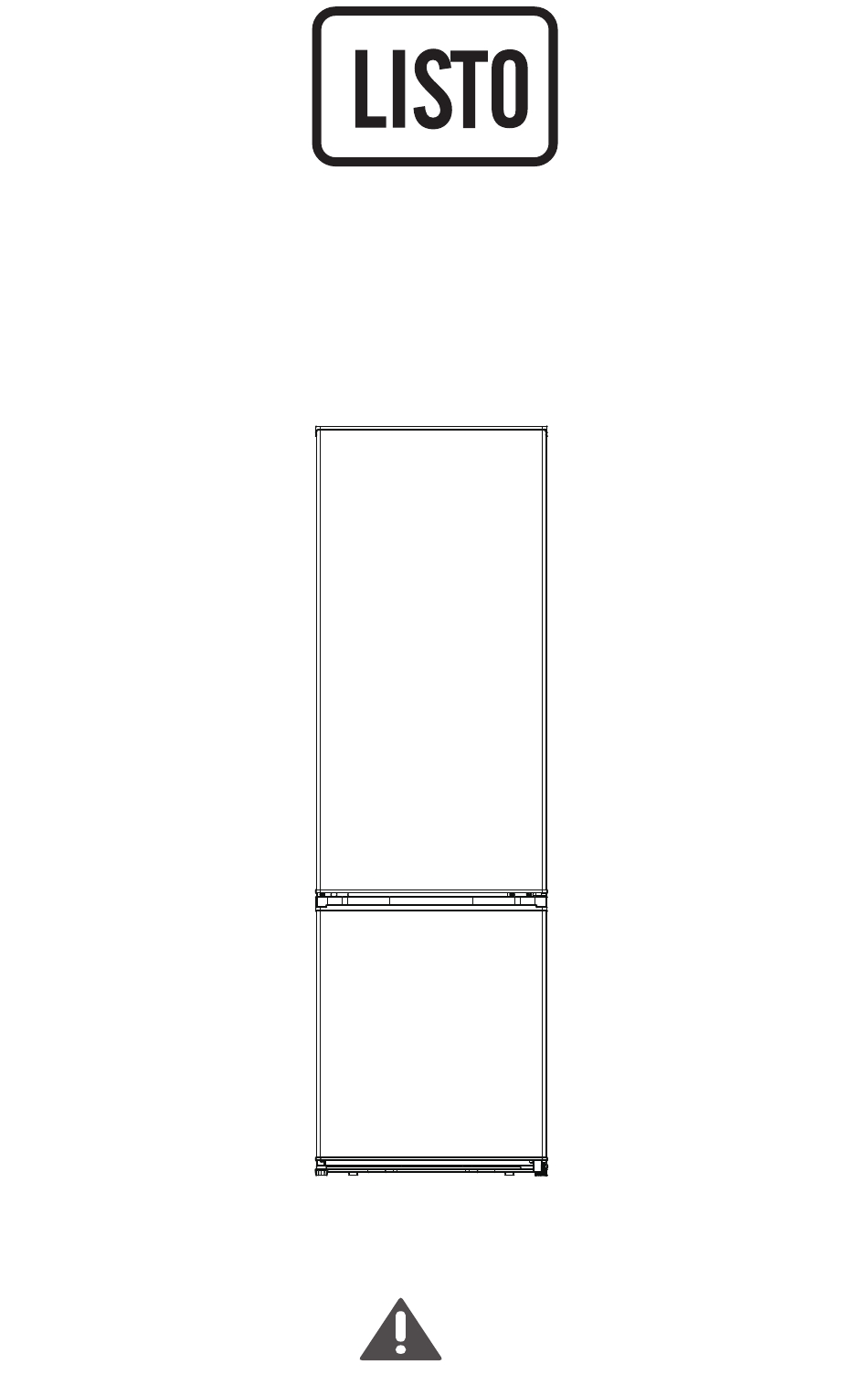

- Page 1 User Manual RCL170-55mib2 Please read the Manual carefully before use. The Manual shall be kept in good custody for later reference...
-
Page 2: Table Of Contents
CONTENTS 1 Safety warnings 1.1 Warning··································1 1.2 Meanings of safety warning symbols· · · · · · · · · · · · · · · · · · · · ·2 1.3 Electricity related warnings··························2 1.4 Warnings for using·······························3 1.5 Warnings for placement ··························3-4 ·... -
Page 3: Safety Warnings
1 Safety war nings 1.1 Warning Warning risk of fire / flammable materials This appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments;... - Page 4 Refrigerant and c yclopentane foaming material used for the appliance are flammable. Therefore, when the appliance is scrapped, it shall be kept away from any fire source and be recovered by a special recovering company with corresponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm.
-
Page 5: Meanings Of Safety Warning Symbols
Meaning of safety warning symbols This is a prohibition symbol. Any incompliance with instructions marked with this symbol may result in damage to the product or endanger the personal safety of the user. Prohibition symbol This is a warning symbol. It is required to operate in strict observance of instructions marked with this symbol;... -
Page 6: Warnings For Using
1.4 War nings for using Do not arbitrarily disassemble or reconstruct the refrigerator, nor damage the refrigerant circuit; maintenance of the appliance must be conducted by a specialist Damaged power cord must be replaced by the manufacturer, its maintenance department or related professionals in order to avoid danger. -
Page 7: Warnings For Energy
Do not store beer, beverage or other fluid contained in bottles or Freezing chamber enclosed containers in the freezing chamber of the refrigerator; otherwise the bottles or enclosed containers may crack due to freezing to cause damages. 1.6 War nings for energy Warning for energy 1)Refrigerating appliances might not operate consistently (possibility of defrosting of contents or temperature becoming too warm in the frozen food compartment) when sited for an extended period... -
Page 8: Placement
2 Proper use of refrigerators 2 1 Placement Before use, remove all packing materials, including bottom cushions, foam pads and tapes inside of the refrigerator; tear off the protective film on the doors and the refrigerator body. Keep away from heat and avoid direct sunlight. Do not place the freezer in moist or watery places to prevent rust or reduction of insulating effect. -
Page 9: Levelling Feet
2.2 Levelling feet Schematic diagram of the leveling feet （The picture above is only for reference. The actual configuration will depend on ） the physical product or statement by the distributor Adjusting procedures: a. Turn the feet clockwise to raise the refrigerator; b. - Page 10 1)Remove all food from the inner door liner. Dismantle of the other side top hinge cover, hinge and hole cap hole cap top hinge cover top hinge emove the refrigerator door , middle hinge,and screw hole caps of the other side screw hole cap middle hinge 4) Remove the freezer door and dismantle bottom hinge and left adjustable foot.
- Page 11 5) Dismantle the door stopper of freezer door, and install it on other side by fitting screw. stopper 6)Put the freezer door on bottom hinge, then install the middle hinge and screw hole caps (a). Dismantle the door stopper of refrigerator door, and install it on other side by fitting screw (b). 7) Change the installation position of top hinge shaft as shown as below, then put the refrigerator door on middle hinge, and fix the top hinge by fitting screws, finally to install the top hinge cover and hole cap.
-
Page 12: Changing The Light
2 4 Changing the Light Any replacement or maintenance of the LED lamps is intended to be made by the manufacture, its service agent or similar qualified person. 2.5 Starting Before initial start, keep the refrigerator still for half an hour before connecting it to power supply. -
Page 13: Key Components
.1 Key components LED light Temperature control Door tray Door tray Shelf Vegetable Door tray crisper Drawer flip （The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor） Dairy products, cheeses Butter, eggs Simmered dishes Small foods, cans, condiments... -
Page 14: Functions
3.2 Functions Temperature control Turn the temperature control knob to MAX, the internal temperature of the refrigerator becomes lower. Turn the temperature control knob to MIN, the internal temperature of the refrigerator becomes higher. Please adjust the temperature between "MAX" and "MIN". -
Page 15: Overall Cleaning
4. Maintenance and care of the appliance 4.1 Overall cleaning Dusts behind the refrigerator and on the ground shall be timely cleaned to improve the cooling effect and energy saving. Check the door gasket regularly to make sure there are no debris. Clean the door gasket with a soft cloth dampened with soapy water or diluted detergent. -
Page 16: Trouble Shooting
5 Trouble shooting 5.1You may try to solve the following simple problems by yourself. If them cannot be solved, please contact the after-sales department. Check whether the appliance is connected to power or whether the plug is in well contact Failed operation Check whether the voltage is too low Check whether there is a power failure or partial circuits have tripped... -
Page 17: Parameters
Parameters 6 . 1 Technical parameters Model Fresh Food Storage Compartment Volume Frozen Food Storage Volume Storage Temperature Energy Consumption Energy consumption___kWh per year, based on standard test results for 24 hours. Household Appliances Category Energy Grading EU Ecolabel Defrosting Type Climate Class This appliance is intended to be used at an ambient temperature between _°C and _°C. - Page 18 Table 1 Climate classes Class Symbol Ambient temperature range + 10 to + 32 Extended temperate Temperate + 16 to + 32 Subtropical + 16 to + 38 Tropical + 16 to + 43 Extended temperate: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C’;...
