- Page 1 SBS18350Qi manual...
- Page 2 The charging current is set to 0.5A, recommended for 18350 batteries. The dicodes SBS18350-Qi is equipped with a 0.5” OLED display at the side. By means of a sophisticated one button menu structure, the user can adjust all main parameters as well as all kinds of preference settings.
- Page 3 02 Feature List - Side by Side mod for use with a single 18350 battery - optional use of 18500 and 18650 batteries with changed battery tube - Atomizers with up to 24mm diameter - Qi compatible inductive charging at 0.5A - Qi compatible charging pad and USB-C cable included (*) - Adjustable battery discharge level (2.5-3V) - Up to 10V output voltage...
-
Page 4: Display Operation
03 Display Operation The SBS18350-Qi is equipped with a graphical OLED display which provides all important information about the status during and for 4 seconds after each vape. Temperature controlled mode: Battery-voltage during Temperature during vape the vape, including voltage Other modes: battery symbol drop. - Page 5 05 Main Menu (Page 1) Switching On/Off and Menu-Operation The dicodes SBS18350-Qi is switched on by pressing the button shortly 5 times. The display shows “Hello” and the user is led to the main menu. For actively switching off the device there is menu item “Switch Off”. When the value “0” is highlighted and pressing the button, the mod displays “Bye..”...
- Page 6 Note that for coils with very low resistance, like Nickel-coils, a slight mechanical rearrangement (tightening the atomizer) can lead to drastical changes in the temperature control due to the change of contact resistances. We therefore recommend to use other than Nickel coils, e.g. the NiFe30 (RESISTHERM) wire from dicodes.
- Page 7 05 Main Menu (Page 3) Battery Status Part1 The Check Battery item shows the battery voltage with little current drained (Ub0) and the battery voltage under load during the last puff (UbL). The difference is the voltage drop of the battery (dU). A high drop (e.g. dU>0.4V@20W and dU>0.7V@60W) indicates a poor battery and/or contact problems.
- Page 8 05 Main Menu (Page 4) Notes about high power vaping As the SBS18350-QI can be used up to 60W using special battery tubes, here some explanations for vaping at high power, i.e. 50-60W with one battery. It is strongly recommended that only the best in class batteries are used and that all contacts are kept clean. Always keep in mind that 60W taken even from a high drain battery will create power losses (heat) in the batteries inner resistance as well as at all mechanical contacts, which finally will reduce the total vape time and lead to volt drop.
- Page 9 “TempCof”. The range for the coefficient is 050 to 650. If you use the dicodes wire (RESISTHERM) it is guaranteed that the wire will always have the same coefficient, because the wire was especially designed for temperature regulation purposes. The regulation accuracy is best then, as the combination of resistivity and high coefficient is very good.
- Page 10 05 Main Menu (Page 6) 2. Heater Protection Mode (only when Expert Mode=1) Main Menu The heater protection mode is a periodic interruption of the power applied to the coil. The duration and the repetition rate of the interrupts is selected by means of the para- meter “Heater Prot”...
- Page 11 05 Main Menu (Page 7) Diagram for Boost-Function Fire Button Fire Button Power Power Boost-Time=6..10 Boost-Time=1-5 Boost-Pwr Boost-Pwr Power Time Time Active Switch Off The device is actively switched off using this menu item. As soon as the 0 is highlighted/inverted, pressing the button will switch off the device.
- Page 12 (*1 ) The temperature coefficient selects the type of wire material in the range 050 to 650: When TC-mode is selected (Main menu HCtrl=1), the user must select the wire type to be NiFe30 (320, dicodes wire), Ni200 (620), Titanium (350), SS304 (105, V2A), SS316 (88), SS316L (92), NiFe48 (480) or “Other”. The value for “Other” is adjusted here.
- Page 13 “Power”. The power limitation makes sense especially in the power vaping mode to reduce the range to the used atomizer. All dicodes devices have a functionality to adjust the minimum discharge level of the battery between 2.5V and 3.0V. Almost all available batteries on the market specify the minmum discharge level of 2.5V to 2.7V.
- Page 14 06 Extended Functions Menu Additional Explanation to several menu items, page 2 The display mode switches on and off the dynamic display of several parameters during and after the puff. The setting “cont” (continous) will display values during and 4 seconds after the vape.
- Page 15 06 Extended Functions Menu Additional Explanation to several menu items, page 3 With “Set Defaults” it is possible to reset all settings to the delivery status. The reset is initiated by selecting the menu an pressing a button. To avoid unintended resetting the user has to confirm the procedure by again pressing the button when “confirm”...
-
Page 16: Wireless Charging
07 Wireless Charging The SBS18350-Qi can be wireless charged using the provided small charger-pad. Batteries of size 18350 have a comparably low capacity of about 1000mAh. When vaping throughout the day the low capacity leads to a fast discharge and the requirement to replace the battery several times. By means of the small charging pad the replacment of the battery becomes obsolete, when the mod is always set onto the pad in between the vapes. -
Page 17: Warranty And Disclaimer
In case the device shows a permanent electric fail or if a software bug is detected, the user is free to send the device back to dicodes for repair without cost. The customer is requested to check the devices housing for scratches or marks, prior to any use. - Page 18 Friedrich der Große 70 D-44628 Herne Germany Phone: +49 2323 1463635 Email: info@dicodes-mods.de Web: www.dicodes-mods.de Errors excepted. Subject to technical or other changes without prior notice. c copyrights dicodes GmbH, Germany, no unauthorized reprint. July 2023, dicodes SBS18350-Qi manual, ENG, revision 1...
Need help?
Do you have a question about the SBS18350Qi and is the answer not in the manual?
Questions and answers

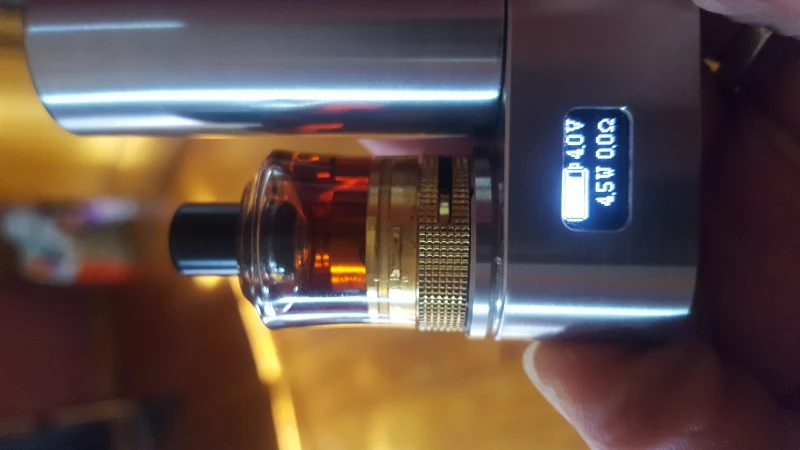

bjr en devissant de 2 milimetre environ, j'ai le contact avec le clearo. Vissé a fond comme cela doit etre, resistance non reconnu et impossible de vaper

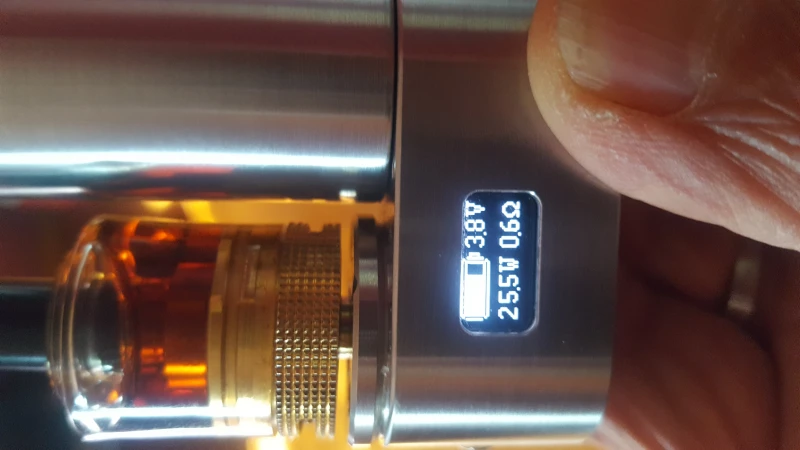

vissé a fond, voila le message. Probleme de connectique ?
