Summary of Contents for dicodes Dani 32.5

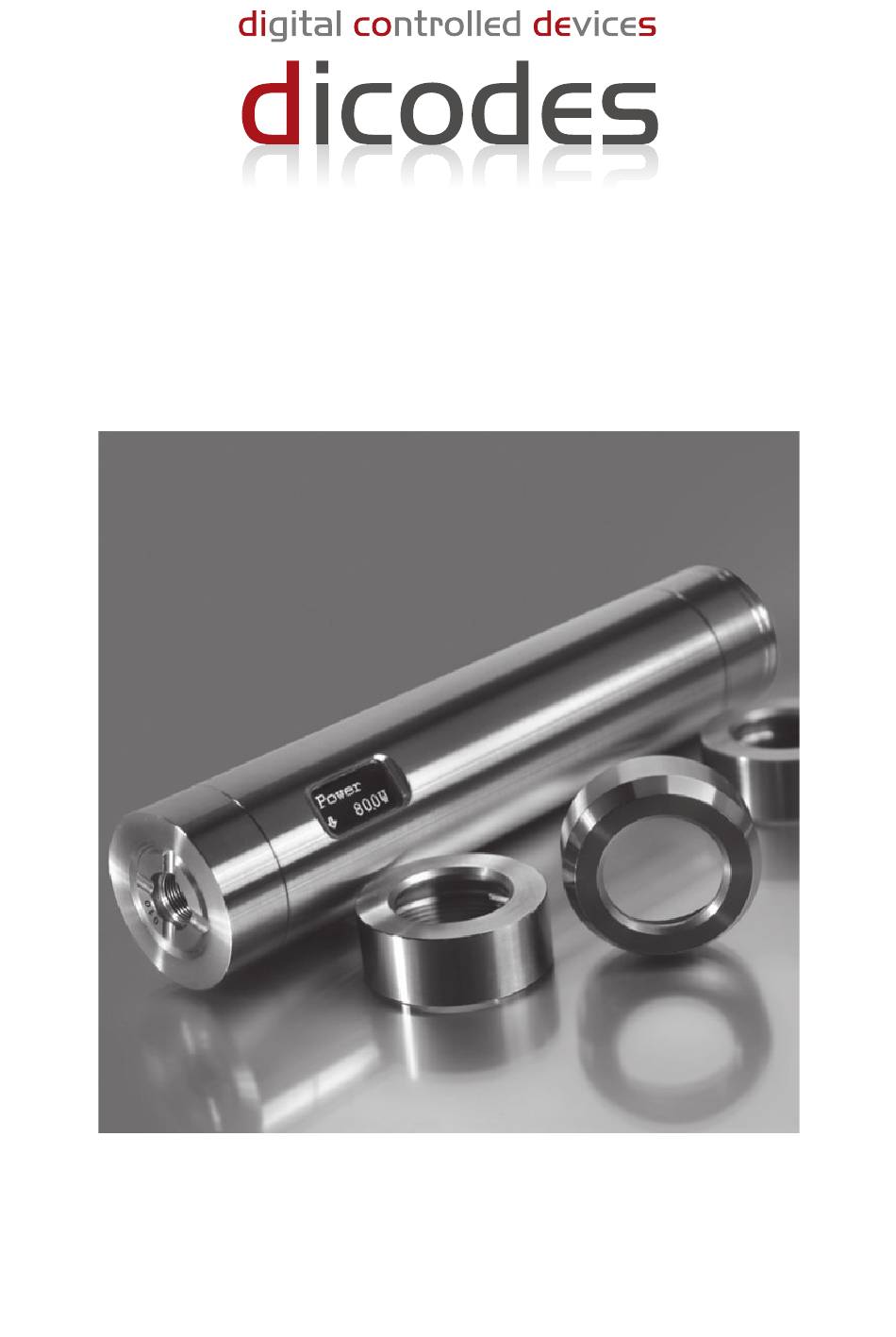

  • Page 1 Dani 32.5 manual...
  • Page 2 It is powered by a single Li-Ion battery of size 21700 or 20700. The Dani 32.5 has an adjustable high force spring loaded center pin made of copper beryllium (very hard), a new multi-contact battery spring and an unique simple to use menu structure.

  • Page 3: Display Operation

    03 Display Operation The MOD is equipped with a graphical OLED display which provides all important informations about the status during the vape and/or for 4 seconds after each vape (see display mode setting). Temperature controlled mode (TC-mode): Battery-voltage during Temperature during the vape the vape (including voltage Other modes: battery symbol...
  • Page 4 05 Main Menu (Page 1) Power Up and Power Down Power Up increases the power to the Power-Limit value and then rolls over to 5W. Power Down decreases the power down to 5W and then rolls over to the Power-Lim value.
  • Page 5 When Hctrl is set to 1, the menu directly jumps to the selection of the wire type. Here the user can select between dicodes-wire (NiFe30), Nickel 200, Titan, Stainless Steel (SS316L), Stainless Steel (SS304/Inox) and “Other”. With “Other” selected, the temperature coefficient defined in the Extended Functions Menu / Heater Menu under item “Tmp.
  • Page 6 05 Main Menu (Page 3) 2. Heater Protection Mode (only when Expert Mode=1) The heater protection mode is a periodic interruption of the power applied to the coil. The duration and the repetition rate of the interrupts is selected by means of the para- meter “Heater Prot”...
  • Page 7 05 Main Menu (Page 4) Diagram for Boost-Function Fire Button Fire Button Power Power PBoost=6..10 PBoost=1..5 Plim Plim Power Time Time Switch Off Device Beside the Auto-Power-Off feature, the user can actively switch off the device. It is recommended to switch the device off or to wait for auto-power-off, before the battery is replaced, because then the statistic counters (see below) are saved.
  • Page 8 Important remarks on the Use of Dani 32.5 1. The Dani 32.5 is capable to heat up the coil with 80W of power. With 80W continuous power, the coil will heat up to temperatures far beyond the recommended maximum temperature of 240°C. So we do not recommend vaping at permanent wattages beyond 60W.
  • Page 9 (*1 ) The temperature coefficient selects the type of wire material, range 50 to 650: When TC-mode is selected (Main menu HCtrl=1), the user must select the wire type to be NiFe30 (dicodes wire), Ni200, Titanium, Stainless Steel SS316L, Stainless Steel (Inox) or “Other”. The value for “Other” is adjusted here. The values of the predefined wire-types are 320=dicodes-wire, 620=Nickel, 92=SS316L, 105=SS304/INOX, 350=Titanium (varying literature values, danger: fire harzard).
  • Page 10 In contrast to other available tube- and box-mods on the market, which stop operation already at 3.4V, the lower discharge level on dicodes mods lead to a better battery utilization (up to 20%).
  • Page 11 When display mode =off the display is off during and after the vape.. The Dani 32.5 can be used in 5 different modes. But in order to keep the menu as short and simple as possible, 3 of the 5 modes are only available, if the Expert-Mode is set to 1.
  • Page 12 06 Extended Functions Menu 06 Extended Functions Menu 06 Extended Functions Menu Weitere Erläuterungen zu einzelnen Punkten im Extended Functions Menü Seite 3 Weitere Erläuterungen zu einzelnen Punkten im Extended Functions Menü Seite 2 Additional Explanation to several menu items, page 3 The Extended Functions Menu has another sub-menu showing several statistical values.
  • Page 13 In case the device shows a permanent electric fail or if a software bug is detected, the user is free to send the device back to dicodes for repair without cost. The customer is requested to check the devices housing for scratches or marks, prior to any use.
  • Page 14 GmbH Friedrich der Große 70 D-44628 Herne Germany Phone: +49 2323 1463635 Email: info@dicodes-mods.de Web: www.dicodes-mods.de Errors excepted. Subject to changes without prior notice. c copyrights dicodes GmbH, Germany, no unauthorized reprint. 17.07.2017 dicodes Dani 32.5 manual, ENG, revision 1...
