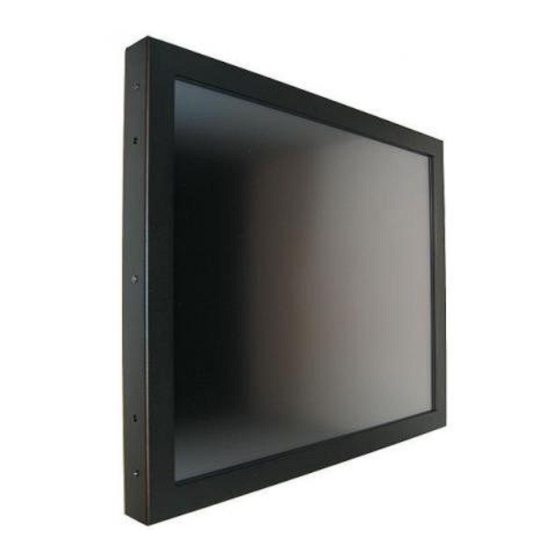

Aod/ats 190 metal case (touch) computer (10 pages)
Summary of Contents for A1Touch AOD 170
Page 1

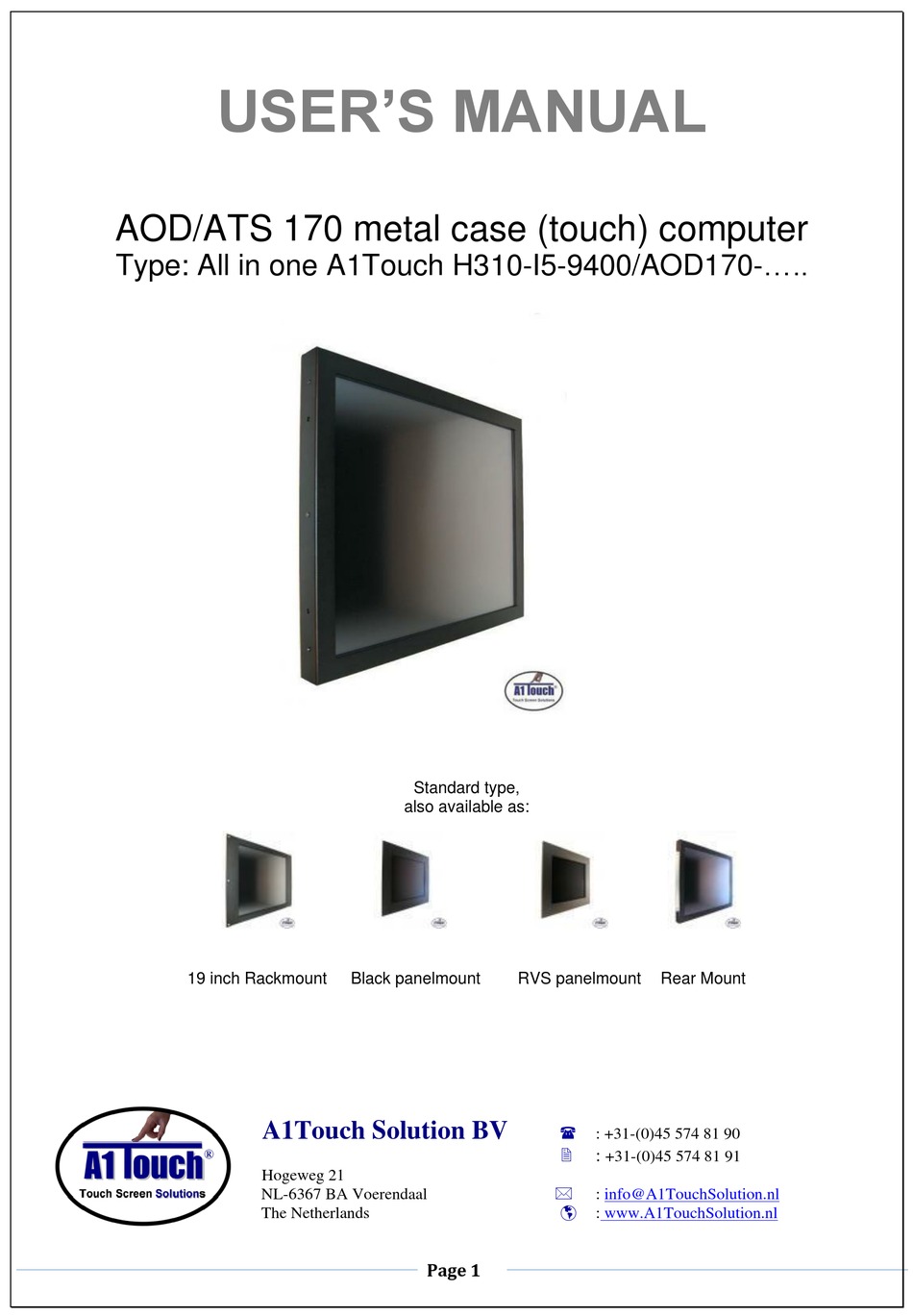

USER’S MANUAL AOD/ATS 170 metal case (touch) computer Type: All in one A1Touch H310-I5-9400/AOD170-….. Standard type, also available as: 19 inch Rackmount Black panelmount RVS panelmount Rear Mount A1Touch Solution BV : +31-(0)45 574 81 90 +31-(0)45 574 81 91 Hogeweg 21 ...
Contents: 1. (Touch) Computer User’s Manual 1.0. Connection to the computer 1.1. Installation 1.2. Features 1.3. Plug and play function 1.4. Safety Precaution 1.5. OSD (On-Screen-Menu) 1.6. OSD Menu 1.7. Specifications 1.8. Contents of the retail package 1.9. Troubleshooting Page 2...
1. (Touch) Computer User’s Manual Connection To the Computer: Installation • Mount the unit in position as desired. You can adjust the connection for your PC environment via I/O panel of computer. • Plug the DC cord of the AC adapter to the power connector and the plug the end of AC adapter to and electrical outlet socket(110V/220V) •...
Safety Precaution We strongly recommend that you carefully read this User’s Manual before operating your computer. FOLLOW INSTRUCTIONS in this manual. Please read and comprehend all using directives before use this machine. • Power Use the type of power indicated on the marking label. •...
OSD Menu • • ITEM Sub Menu Description Value Contrast 0 ~ 100 Brightness 0 ~ 100 Color Color Adjust Adjust color of red, green, blue Color Temp 9300,6500,5800, sRGB, User USER Clock 0 ~ 100 Phase 0 ~ 100 Image Setting Sharpness 0 ~ 4...
Page 7
With or without touch without touch: Acrylic or glass with touch for option "Mounting Projected Capacitive A1touch and Zytronic. behind glass = YES": Not sure what to use? Call us at +31 (0)45 5748190 or send us contactform Type of Touch: + Projected -For glass upto 5mm or Acrylic glass upto 2.5mm.
Contents of Package Computer system AC/DC Adapter Power cord Other Cables (option) Troubleshooting TO REDUCE THE RISK OF ELECTRIC SHOK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONELLE. • The system does not respond after you turn on the system : -Make sure that the monitor is turned on via OSD button.
