A1Touch AOD 260 User Manual

Metal case (touch) computer
Hide thumbs
Table of Contents

Advertisement

Quick Links

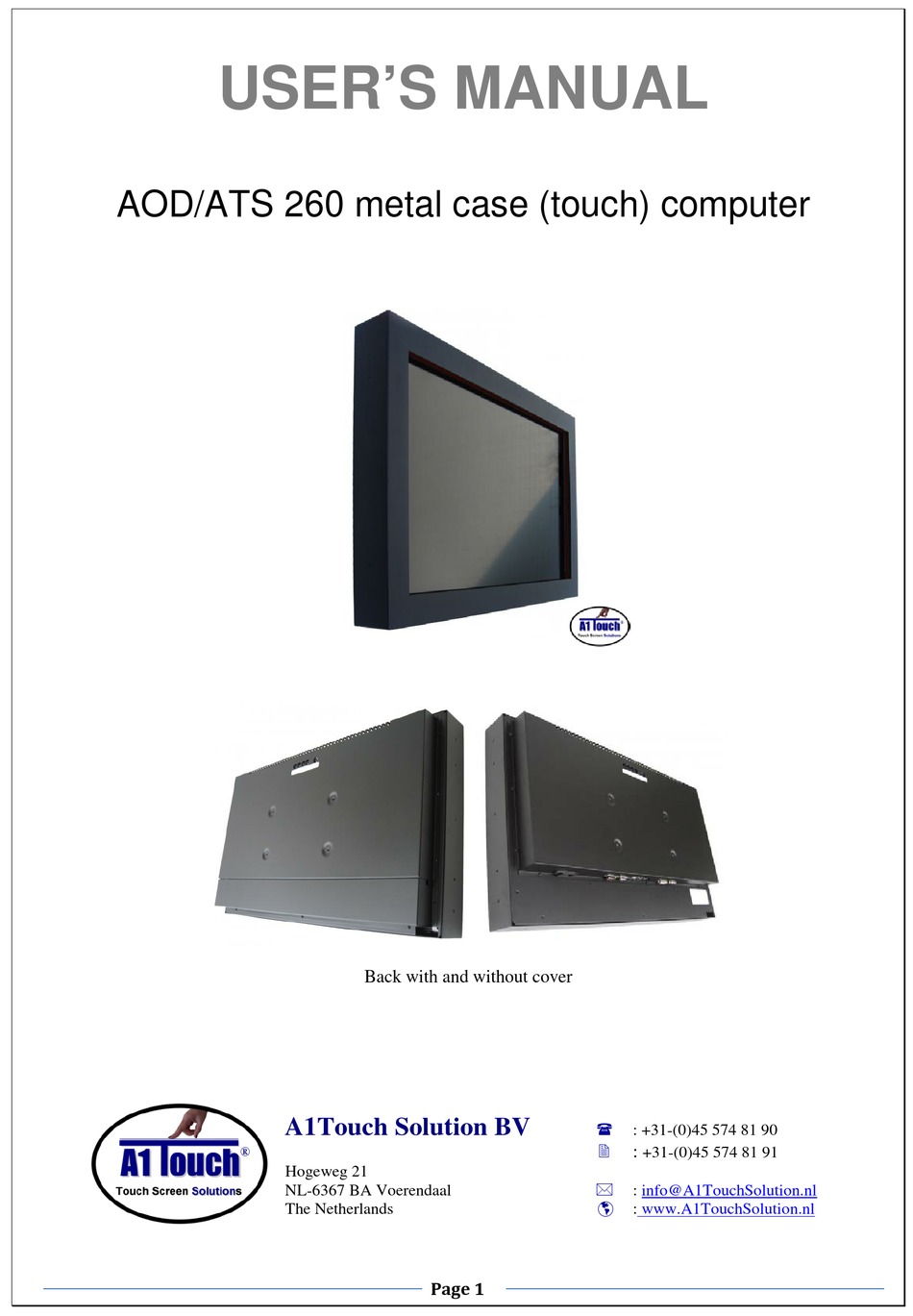

USER'S MANUAL
AOD/ATS 260 metal case (touch) computer
A1Touch Solution BV
Hogeweg 21
NL-6367 BA Voerendaal
The Netherlands
Back with and without cover
Page 1
: +31-(0)45 574 81 90
:
+31-(0)45 574 81 91
:
info@A1TouchSolution.nl
:
www.A1TouchSolution.nl

Advertisement

Table of Contents
loading

Related Manuals for A1Touch AOD 260

Summary of Contents for A1Touch AOD 260

  • Page 1 USER’S MANUAL AOD/ATS 260 metal case (touch) computer Back with and without cover A1Touch Solution BV  : +31-(0)45 574 81 90  +31-(0)45 574 81 91 Hogeweg 21  NL-6367 BA Voerendaal info@A1TouchSolution.nl  The Netherlands www.A1TouchSolution.nl Page 1...

  • Page 2: Table Of Contents

    Contents: 1. (Touch) Computer User’s Manual 1.0. Connection to the computer 1.1. Installation 1.2. Features 1.3. Plug and play function 1.4. Safety Precaution 1.5. OSD (On-Screen-Menu) 1.6. OSD Menu 1.7. Specifications 1.8. Contents of the retail package 1.9. Troubleshooting Page 2...

  • Page 3: Touch) Computer User's Manual

    1. (Touch) Computer User’s Manual Connection To the Computer: Installation • Mount the unit in position as desired. You can adjust the connection for your PC environment via I/O panel of computer: Page 3...

  • Page 4: Features

    • Connect 220v to the computer Features • AOD 260 has 26” LCD and support up to 75Hz. • Mini ITX format Computer with quad core Intel J1900 2.0 Ghz processor Passive cooled ! • Second connection external monitor via DVI (Digital) possible.

  • Page 5: Osd (On-Screen-Menu)

    OSD (On-Screen-Menu) menu select down power Button Function Status POWER Power ON or OFF ON/OFF Green: On Indicate working status Red: Stand-by Orange: No signal Launch OSD Menu or Move to OSD Menu add value Launch OSD Menu or DOWN Move to OSD Menu add value SELECT...
  • Page 6 English French German Language Spanish Select one of the seven language Italian Korean Japanese Usable in OSD H. Posi. Select OSD MENU horizontal position all Mode. OSD V. Posi. Select OSD MENU vertical position OSD MENU disappear from over the screen OSD Timer after setting time Transparency...

  • Page 7: Specifications

    Specifications Name: AOD / ATS 26" (touch)Computer Q1900B Color: Black powder Coated (other colors on request) Model: 26.0 inch / 660.87 mm TFT active matrix LCD Type: LG-Phillips / LC260EUN Resolution (max): FULL HD 1920 x 1080 WUXGA Color: 10-bit (D), 1.06 B kleuren Pixel: 0.3 mm x 0.3 mm Brightness:...
  • Page 8 Power 220V internal Weight 16 Kg Mounting: VESA 200x100mm; (No bracket included in delivery; See: mounting_brackets) Dimensions system(B x H x D) 650x388x99 mm Options: Functionality: With or without touch without touch: Acrylic or glass with touch: 5 wire resitive, Surface Accoustic Wave or Projected Type of Touch: Capacitive Not sure what to use? Call us at +31 (0)45 5748190 or send...

  • Page 9: Troubleshooting

    Contents of Package Computer system AC/DC Adapter Power cord Drivers cd Other Cables (option) Troubleshooting TO REDUCE THE RISK OF ELECTRIC SHOK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONELLE. • The system does not respond after you turn on the system : -Make sure that the monitor is turned on via OSD button.

This manual is also suitable for:

Ats 260
