USER'S MANUAL
AOD/ATS 190 metal case (touch) computer
PCAP panelmount 19 inch Rackmount
Type: J3455
Standard type,
also available as:
Black panelmount
A1Touch Solution BV
Hogeweg 21
NL-6367 BA Voerendaal
The Netherlands
RVS panelmount
Hinges
: +31-(0)45 574 81 90
:
+31-(0)45 574 81 91
:
info@A1TouchSolution.nl
:
www.A1TouchSolution.nl

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the J3455 and is the answer not in the manual?

Questions and answers

Related Manuals for A1Touch J3455

Summary of Contents for A1Touch J3455

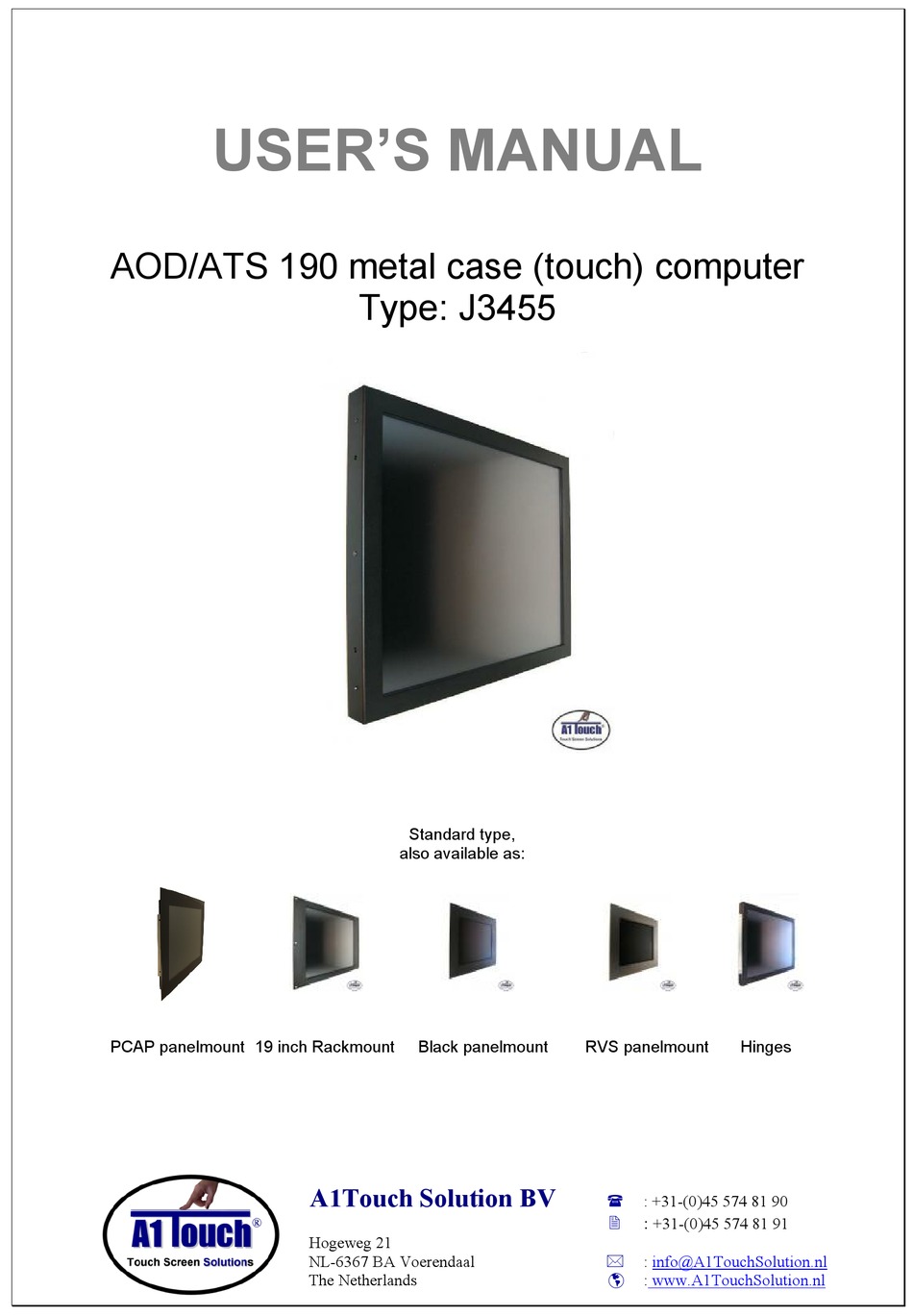

  • Page 1 USER’S MANUAL AOD/ATS 190 metal case (touch) computer Type: J3455 Standard type, also available as: PCAP panelmount 19 inch Rackmount Black panelmount RVS panelmount Hinges A1Touch Solution BV : +31-(0)45 574 81 90  +31-(0)45 574 81 91  Hogeweg 21 NL-6367 BA Voerendaal info@A1TouchSolution.nl...

  • Page 2: Table Of Contents

    Contents: 1. (Touch) Computer User’s Manual 1.0. Connection to the computer 1.1. Installation 1.2. Features 1.3. Plug and play function 1.4. Safety Precaution 1.5. OSD (On-Screen-Menu) 1.6. OSD Menu 1.7. Specifications 1.8. Contents of the retail package 1.9. Troubleshooting...

  • Page 3: Touch) Computer User's Manual

    1. (Touch) Computer User’s Manual Connection To the Computer: Installation • Mount the unit in position as desired. You can adjust the connection for your PC environment via I/O panel of computer:...

  • Page 4: Features

    Connect DC cord of adapter 12V DC (option 24v or 220v) to the computer Features AOD190 has 19” LCD and support up to 75Hz. • Mini ITX format Computer with quad core Intel J3455 upto 2.3 Ghz processor Passive cooled ! • • Second connection external monitor via DVI (Digital) possible.

  • Page 5: Osd (On-Screen-Menu)

    OSD (On-Screen-Menu) menu select down power Button Function Status Hot Key POWER Power ON or OFF Green : Normal operation Off Mode Indicate operation status Amber : No valid input, Sleep mode Green Blinking: No Signal Select next menu item Auto Configuration on no Increase slider value menu status...
  • Page 6 OSD STRUCTURE ITEM Sub Menu Description Value Brightness Adjust the backlight level of screen 50(0~100) Contrast Increase/ decrease picture contrast 50(0~100) Sharpness Control the clarity of details of pictures 2(0 ~ 4) H Position Adjust picture horizontal position 50(0~100) Picture V Position Adjust picture vertical position 50(0~100)

  • Page 7: Specifications

    Response time 8 ms Active area: 376,32 (H) x 301,056 (V) mm Computer specs: Type computerboard Intel J3455 Quad core upto 2.3 Ghz, passive cooled Chipset No seperate chipset Memory 2 x DDR3/DDR3L SO-DIMM Slots Bios - 64Mb AMI UEFI Legal BIOS with GUI support - Supports Plug and Play - ACPI 5.0 compliant wake up events...
  • Page 8 With or without touch without touch: Acrylic or glass with touch for option "Mounting behind glass = Projected Capacitive A1touch and Zytronic YES": Not sure what to use? Call us at +31 (0)45 5748190 or send us contactform Type of Touch:...
  • Page 9 + Projected Capacitive -For glass upto 5mm or Acrylic glass upto 2.5mm. (A1touch): -Touchable with finger, glove and pcap stylus. -10 points touch -activation force less than 1 gramm. + Projected Capacitive -For glass upto 20mm or Acrylic glass upto 10mm.

  • Page 10: Troubleshooting

    AC/DC Adapter Power cord Drivers cd Other Cables (option) Troubleshooting TO REDUCE THE RISK OF ELECTRIC SHOK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONELLE. The system does not respond after you turn on the system : •...
