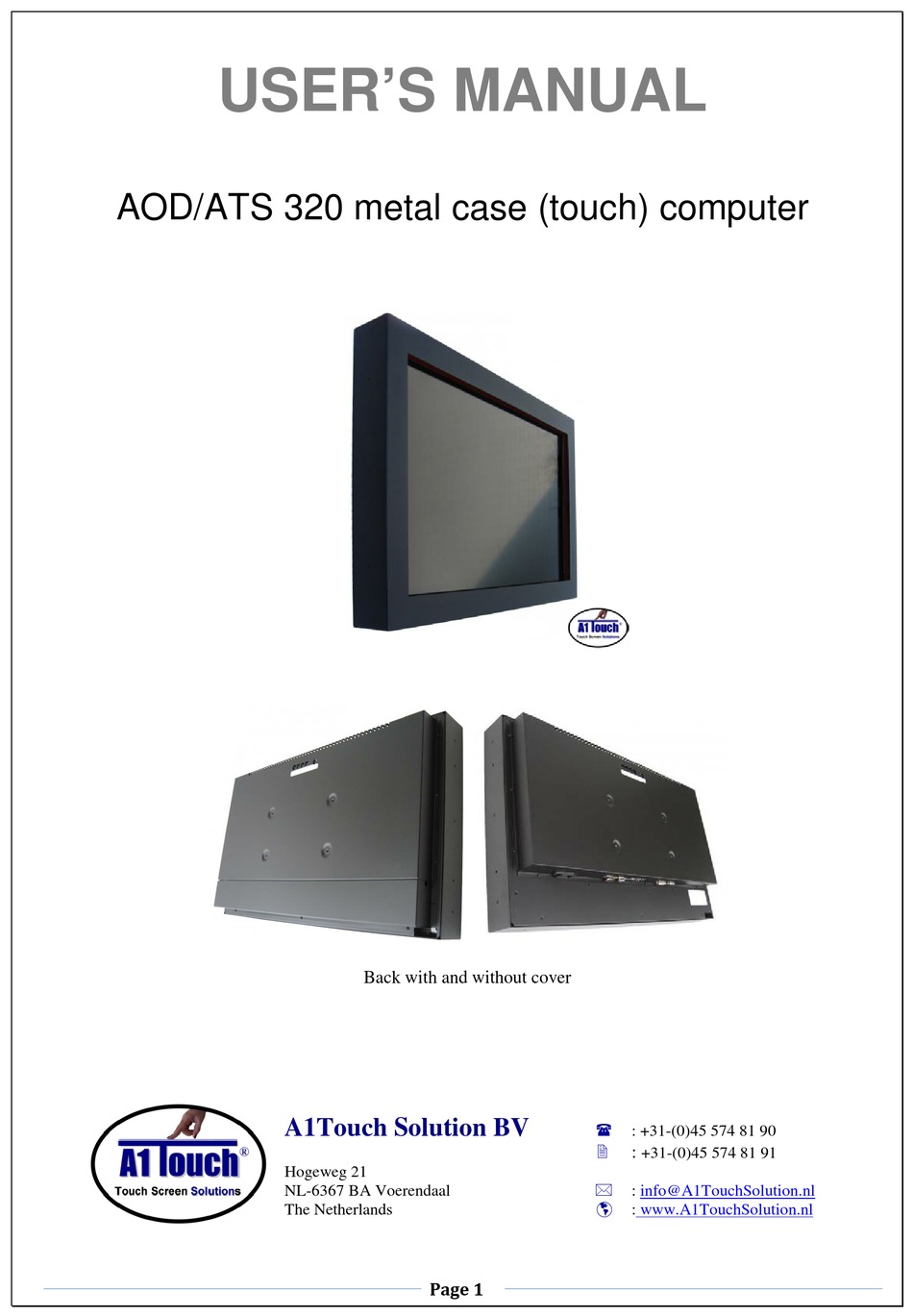

USER'S MANUAL
AOD/ATS 320 metal case (touch) computer
A1Touch Solution BV
Hogeweg 21
NL-6367 BA Voerendaal
The Netherlands
Back with and without cover
Page 1
: +31-(0)45 574 81 90
:
+31-(0)45 574 81 91
:
info@A1TouchSolution.nl
:
www.A1TouchSolution.nl

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ATS 320 and is the answer not in the manual?

Questions and answers

Related Manuals for A1Touch ATS 320

Summary of Contents for A1Touch ATS 320

  • Page 1 USER’S MANUAL AOD/ATS 320 metal case (touch) computer Back with and without cover A1Touch Solution BV  : +31-(0)45 574 81 90  +31-(0)45 574 81 91 Hogeweg 21  NL-6367 BA Voerendaal info@A1TouchSolution.nl  The Netherlands www.A1TouchSolution.nl Page 1...

  • Page 2: Table Of Contents

    Contents: 1. (Touch) Computer User’s Manual 1.0. Connection to the computer 1.1. Installation 1.2. Features 1.3. Plug and play function 1.4. Safety Precaution 1.5. OSD (On-Screen-Menu) 1.6. OSD Menu 1.7. Specifications 1.8. Contents of the retail package 1.9. Troubleshooting Page 2...

  • Page 3: Touch) Computer User's Manual

    1. (Touch) Computer User’s Manual Connection To the Computer: Installation • Mount the unit in position as desired. You can adjust the connection for your PC environment via I/O panel of computer: Page 3...

  • Page 4: Features

    • Connect 220v to the computer Features • AOD 320 has 32” LCD and support up to 75Hz. • Mini ITX format Computer with quad core Intel J1900 2.0 Ghz processor Passive cooled ! • Second connection external monitor via DVI (Digital) possible. •...

  • Page 5: Osd (On-Screen-Menu)

    OSD (On-Screen-Menu) menu select down power Button Function Status POWER Power ON or OFF ON/OFF Green: On Indicate working status Red: Stand-by Orange: No signal Launch OSD Menu or Move to OSD Menu add value Launch OSD Menu or DOWN Move to OSD Menu add value SELECT...
  • Page 6 English French German Language Spanish Select one of the seven language Italian Korean Japanese Usable in OSD H. Posi. Select OSD MENU horizontal position all Mode. OSD V. Posi. Select OSD MENU vertical position OSD MENU disappear from over the screen OSD Timer after setting time Transparency...

  • Page 7: Specifications

    Specifications Name: AOD / ATS 32" (touch) Computer Q1900B Monitor specs: Color panel: Black powder Coated (other colors on request) Model: 32 inch WUXGA TFT LCD Monitor Type: AUO P320HVN01.1 Resolution (max): FULL HD 1920 x 1080 WUXGA Color: 16,7 million Pixel: 0.36375 x 0.36375 mm Brightness:...
  • Page 8 Mounting: VESA 200x100mm; (No bracket included in delivery; See: mounting_brackets) Dimensions system(W x H x D) 803x498x132 mm Options: Functionality: With or without touch without touch: Acrylic or glass with touch: Surface Accoustic Wave or Projected Capacitive SAW: -Standard glare. -Touchable with finger and glove.

  • Page 9: Troubleshooting

    Troubleshooting TO REDUCE THE RISK OF ELECTRIC SHOK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONELLE. • The system does not respond after you turn on the system : -Make sure that the monitor is turned on via OSD button. -Turn off the power and check the system’s power cord, AC adapter, for proper connection.
