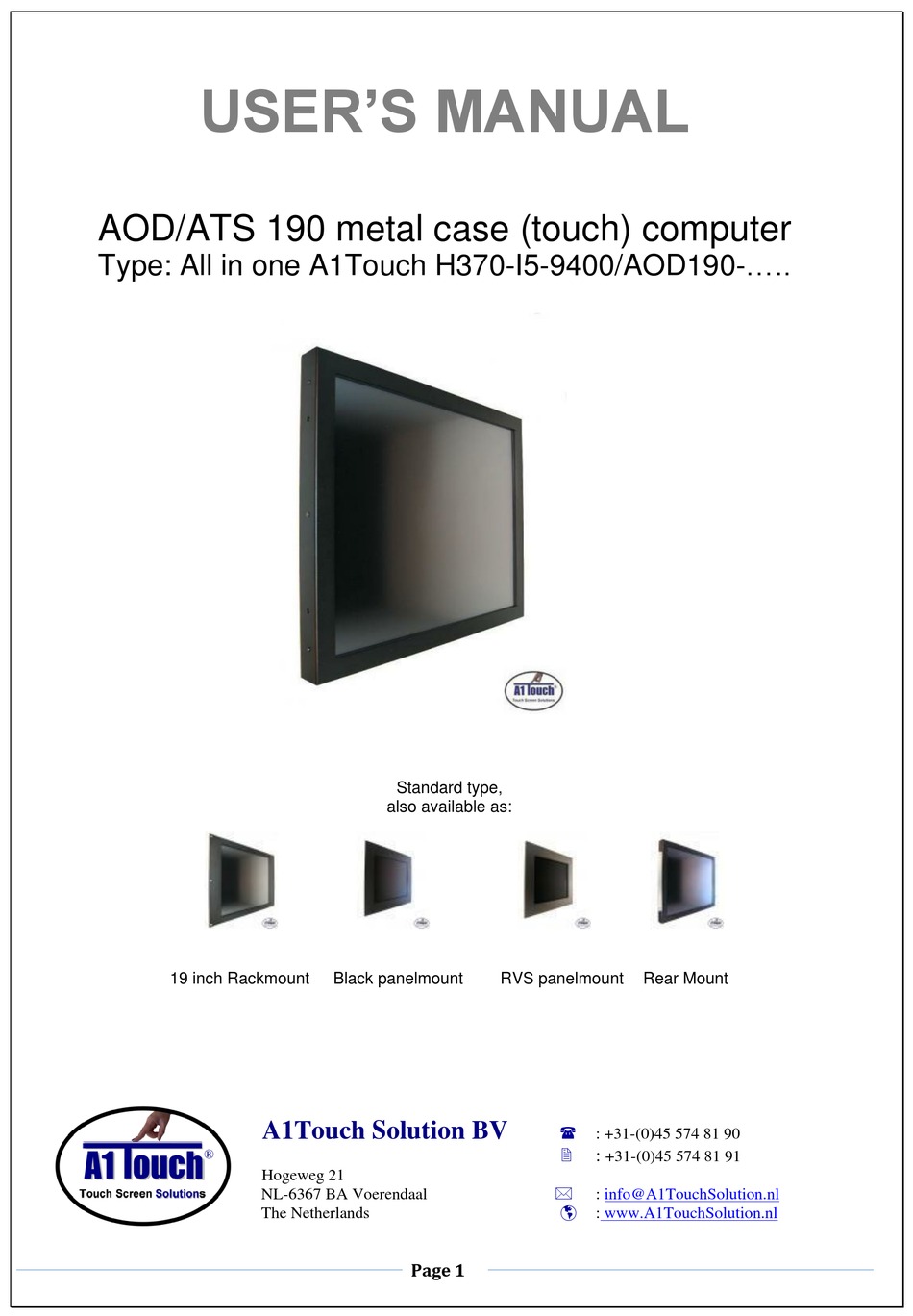

USER'S MANUAL
AOD/ATS 190 metal case (touch) computer
Type: All in one A1Touch H370-I5-9400/AOD190-.....
19 inch Rackmount
A1Touch Solution BV
Hogeweg 21
NL-6367 BA Voerendaal
The Netherlands
Standard type,
also available as:
Black panelmount
RVS panelmount
Page 1
Rear Mount
: +31-(0)45 574 81 90
:
+31-(0)45 574 81 91
:
info@A1TouchSolution.nl
:
www.A1TouchSolution.nl

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AOD190 and is the answer not in the manual?

Questions and answers

Related Manuals for A1Touch AOD190

Summary of Contents for A1Touch AOD190

  • Page 1 USER’S MANUAL AOD/ATS 190 metal case (touch) computer Type: All in one A1Touch H370-I5-9400/AOD190-….. Standard type, also available as: 19 inch Rackmount Black panelmount RVS panelmount Rear Mount A1Touch Solution BV  : +31-(0)45 574 81 90  +31-(0)45 574 81 91 Hogeweg 21 ...

  • Page 2: Table Of Contents

    Contents: 1. (Touch) Computer User’s Manual 1.0. Connection to the computer 1.1. Installation 1.2. Features 1.3. Plug and play function 1.4. Safety Precaution 1.5. OSD (On-Screen-Menu) 1.6. OSD Menu 1.7. Specifications 1.8. Contents of the retail package 1.9. Troubleshooting Page 2...

  • Page 3: Touch) Computer User's Manual

    1. (Touch) Computer User’s Manual Connection To the Computer: Installation • Mount the unit in position as desired. You can adjust the connection for your PC environment via I/O panel of computer: • Plug the DC cord of the AC adapter to the power connector and the plug the end of AC adapter to and electrical outlet socket(110V/220V) •...

  • Page 4: Features

    Features • AOD190 has 19” LCD and support up to 75Hz. • Mini ITX format Computer with 6 core 6 threads Intel Core i5-9400 2.9 Ghz processor Active cooled • Second connection external monitor via Displayport (Digital) possible. • Microphone and speaker integration possible (option).

  • Page 5: Osd (On-Screen-Menu)

    OSD (On-Screen-Menu) menu select down power Button Function Status POWER Power ON or OFF ON/OFF Green: On Indicate working status Red: Stand-by Orange: No signal Launch OSD Menu or Move to OSD Menu add value Launch OSD Menu or DOWN Move to OSD Menu add value SELECT...

  • Page 6: Specifications

    Specifications Monitor specs: Color: Black powder Coated (other colors on request) Model: 19 inch XGA TFT LCD Monitor 19 inch Color Active Matrix TFT LCD (LG LM190EOA) Type: Resolution (max): 1280 x 1024 (SXGA) Color: 16,7 million Pixel: 0.0976 x 0.2928 mm Brightness: 300 cd/m²...
  • Page 7 With or without touch without touch: Acrylic or glass with touch for option "Mounting Projected Capacitive A1touch and Zytronic. behind glass = YES": Not sure what to use? Call us at +31 (0)45 5748190 or send us contactform Type of Touch: + Projected -For glass upto 5mm or Acrylic glass upto 2.5mm.
  • Page 8 5 wire resistive : -Standard non-glare. -Touchable with finger, glove and stylus. -Single touch -activation force less than 40 gramm. SAW: -Standard glare. -Touchable with finger and glove. -Single touch -activation force less than 85 gramm. Projected -Standard glare. Capacitive: -Touchable with finger, glove and pcap stylus.

  • Page 9: Troubleshooting

    Troubleshooting TO REDUCE THE RISK OF ELECTRIC SHOK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONELLE. • The system does not respond after you turn on the system : -Make sure that the monitor is turned on via OSD button. -Turn off the power and check the system’s power cord, AC adapter, for proper connection.
