INSTRUCTIONS

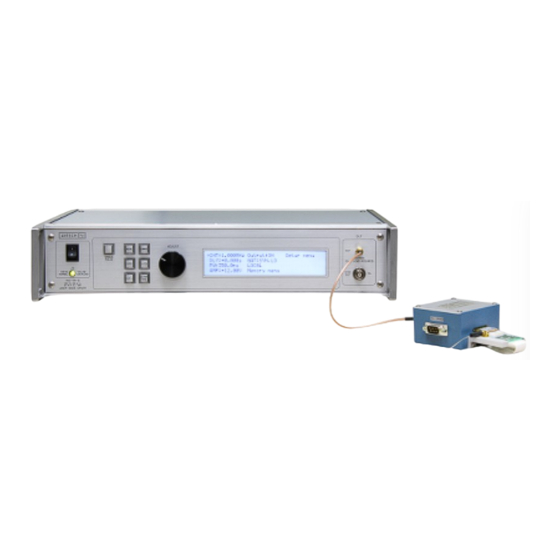

MODEL AVOZ-DF5-B
250 VOLT, 50 AMP
PULSE GENERATOR
WITH IEEE 488.2 / RS-232 / ETHERNET CONTROL
SERIAL NUMBER:
14345
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for AVTECH ELECTROSYSTEMS AVOZ-DF5-B
Summary of Contents for AVTECH ELECTROSYSTEMS AVOZ-DF5-B
- Page 1 1 9 7 5 info@avtechpulse.com Tel: 888-670-8729 (USA & Canada) BOX 5120, LCD MERIVALE http://www.avtechpulse.com/ or +1-613-686-6675 (Worldwide) OTTAWA, CANADA K2C3H5 INSTRUCTIONS MODEL AVOZ-DF5-B 250 VOLT, 50 AMP PULSE GENERATOR WITH IEEE 488.2 / RS-232 / ETHERNET CONTROL SERIAL NUMBER: 14345...
-
Page 2: Warranty
WARRANTY Avtech Electrosystems Ltd. warrants products of its manufacture to be free from defects in material and workmanship under conditions of normal use. If, within one year after delivery to the original owner, and after prepaid return by the original owner, this Avtech product is found to be defective, Avtech shall at its option repair or replace said defective item. -
Page 3: Table Of Contents
TABLE OF CONTENTS WARRANTY........................2 TECHNICAL SUPPORT....................2 TABLE OF CONTENTS....................3 INTRODUCTION......................5 SPECIFICATIONS......................6 REGULATORY NOTES....................7 FCC PART 18.......................... 7 EC DECLARATION OF CONFORMITY..................7 DIRECTIVE 2011/65/EU (RoHS).....................8 DIRECTIVE 2002/96/EC (WEEE)....................8 FIRMWARE LICENSING......................9 INSTALLATION......................10 VISUAL CHECK........................10 POWER RATINGS........................ 10 CONNECTION TO THE POWER SUPPLY................10 PROTECTION FROM ELECTRIC SHOCK................11 ENVIRONMENTAL CONDITIONS..................12... - Page 4 PCB 228D - MISC OP AMP....................36 PCB 317A - HIGH-CURRENT BIAS SOURCE..............37 PCB 104H - KEYPAD / DISPLAY BOARD................38 MAIN WIRING - POSITIVE (-P) UNITS.................39 PERFORMANCE CHECK SHEET................40 Manual Reference: /fileserver1/officefiles/instructword/avoz/AVOZ-DF5-B,ed2.odt. Last modified May 24, 2023. Copyright © 2023 Avtech Electrosystems Ltd, All Rights Reserved.
-
Page 5: Introduction
2 kHz. The pulse width is variable from 20 to 200 ns. Rise and fall times are fixed at less than 15 ns. The AVOZ-DF5-B includes an internal trigger source, but it can also be triggered or gated by an external source. A front-panel pushbutton can also be used to trigger the instrument. -
Page 6: Specifications
SPECIFICATIONS Model AVOZ-DF5-B Amplitude: voltage: 25 to 250V current: 0 to 50A Required load impedance 5 Ω LOAD Pulse width (FWHM): 50 to 200 ns Rise and fall times (20%-80%): < 15 ns Maximum PRF: 2 kHz Maximum average output power:... -
Page 7: Regulatory Notes
This instrument does not normally require regular maintenance to minimize interference potential. However, if loose hardware or connectors are noted, they should be tightened. Contact Avtech (info@avtechpulse.com) if you require assistance. EC DECLARATION OF CONFORMITY Avtech Electrosystems Ltd. P.O. Box 5120, LCD Merivale Ottawa, Ontario Canada K2C 3H5 declare that this pulse generator meets the intent of Directive 2004/108/EG for Electromagnetic Compatibility. -
Page 8: Directive 2011/65/Eu (Rohs)
(also known as “RoHS Recast”). In addition, this declaration of conformity is issued under the sole responsibility of Avtech Electrosystems Ltd. Specifically, products manufactured do not contain the substances listed in the table below in concentrations greater than the listed maximum value. -
Page 9: Firmware Licensing
laws) on behalf of the customer, as provided for under Article 9 of Directive 2002/96/EC. Customers who have purchased Avtech equipment through local representatives should consult with the representative to determine who has responsibility for WEEE compliance. Normally, such responsibilities with lie with the representative, unless other arrangements (under Article 9) have been made. -
Page 10: Installation
INSTALLATION VISUAL CHECK After unpacking the instrument, examine to ensure that it has not been damaged in shipment. Visually inspect all connectors, knobs, liquid crystal displays (LCDs), and the handles. Confirm that a power cord, a GPIB cable, and two instrumentation manuals (this manual and the “Programming Manual for -B Instruments”) are with the instrument. -
Page 11: Protection From Electric Shock
Destination Region Description Option Manufacturer Part Number United Kingdom, Hong Kong, BS 1363, -AC00 Qualtek 370001-E01 Singapore, Malaysia 230V, 50 Hz AS 3112:2000, Australia, New Zealand -AC01 Qualtek 374003-A01 230-240V, 50 Hz Continental Europe, Korea, European CEE 7/7 -AC02 Qualtek 364002-D01 Indonesia, Russia “Schuko”... -
Page 12: Environmental Conditions
ENVIRONMENTAL CONDITIONS This instrument is intended for use under the following conditions: 1. indoor use; 2. altitude up to 2 000 m; 3. temperature 5 °C to 40 °C; 4. maximum relative humidity 80 % for temperatures up to 31 °C decreasing linearly to 50 % relative humidity at 40 °C;... -
Page 13: Fuses
FUSES This instrument contains four fuses. All are accessible from the rear-panel. Two protect the AC prime power input, and two protect the internal DC power supplies. The locations of the fuses on the rear panel are shown in the figure below: Fuses #1 and #2 Fuse #4 Fuse #3... -
Page 14: Dc Fuse Replacement
DC FUSE REPLACEMENT The DC fuses may be replaced by inserting the tip of a flat-head screwdriver into the fuse holder slot, and rotating the slot counter-clockwise. The fuse and its carrier will then pop out. FUSE RATINGS The following table lists the required fuses: Recommended Replacement Part Nominal Fuses... -
Page 15: Front Panel Controls
FRONT PANEL CONTROLS 1. POWER Switch . This is the main power switch. When turning the instrument on, there is normally a delay of 10 seconds before anything is shown on the main display, as the internal operating system boots up. 2. - Page 16 5. KEYPAD . Control Name Function MOVE This moves the arrow pointer on the display. CHANGE This is used to enter the submenu, or to select the operating mode, pointed to by the arrow pointer. ×10 If one of the adjustable numeric parameters is displayed, this increases the setting by a factor of ten.
-
Page 17: Rear Panel Controls
REAR PANEL CONTROLS GATE TRIG RS-232 GPIB Note: some connectors may be in different positions than shown above, depending on the exact combination of options ordered. 1. AC POWER INPUT . An IEC-320 C14 three-pronged recessed male socket is provided on the back panel for AC power connection to the instrument. One end of the detachable power cord that is supplied with the instrument plugs into this socket. - Page 18 When triggering externally, the instrument can be set such that the output pulse width tracks the pulse width on this input, or the output pulse width can be set independently. 6. GPIB Connector . A standard GPIB cable can be attached to this connector to allow the instrument to be computer-controlled.
-
Page 19: General Information
GENERAL INFORMATION BASIC PULSE CONTROL This instrument can be triggered by its own internal clock or by an external TTL trigger signal. In either case, two output channels respond to the trigger: OUT and SYNC. The OUT channel is the signal that is applied to the load. Its amplitude and pulse width are variable. -
Page 20: Trigger Modes
> 50 ns TRIG TTL LEVELS (external input) (0V and 3V-5V) PROPAGATION DELAY (FIXED) 100 ns, FIXED SYNC OUT 3V, FIXED DELAY > 0 PULSE WIDTH AMPLITUDE, VARIABLE MAIN OUTPUT Figure C As before, if the delay is negative, the order of the SYNC and OUT pulses is reversed. The delay, pulse width, and frequency (when in the internal mode), of the OUT pulse can be varied with front panel controls or via the GPIB or RS-232 computer interfaces. -
Page 21: Gating Modes
No pulses are truncated in this mode. THE LOAD AND OUTPUT MODULE The AVOZ-DF5-B is a voltage pulser designed to drive 5Ω load impedances. An AVX-RL2-5 output module is included which provides a high-current low-inductance 5Ω series resistance internally, to allow low-impedance loads (such as laser diodes) to be driven directly. -
Page 22: Measurement Bandwidth Issues
No output should be left unterminated, or reflections may occur on the connected outputs. MEASUREMENT BANDWIDTH ISSUES The rise and fall times of the AVOZ-DF5-B are specified to be < 15 ns, and in practice are closer to 7 ns. For best results, the bandwidth of the measurement system should exceed 1 GHz. - Page 23 PRF is kept to a minimum, i.e. operate in a low PRF range when possible rather than in a high PRF range. Keep the output PW to a minimum. Never apply an externally generated voltage to the output port.
-
Page 24: Operational Check
4. Turn on the AVOZ-DF5-B. The main menu will appear on the LCD. 5. To set the AVOZ-DF5-B to trigger from the internal clock at a PRF of 100 Hz: a) The arrow pointer should be pointing at the frequency menu item. If it is not, press the MOVE button until it is. - Page 25 c) The arrow pointer should be pointing at the “Internal” choice. If it is not, press MOVE until it is. d) Press CHANGE to return to the main menu. 6. To set the delay to 100 ns: a) Press the MOVE button until the arrow pointer is pointing at the delay menu item.
- Page 26 a) Press the MOVE button until the arrow pointer is pointing at the amplitude menu item. b) Press the CHANGE button. The amplitude submenu will appear. Rotate the ADJUST knob until the amplitude is set at +200V (or -200V for "-N" instruments).
-
Page 27: Programming Your Pulse Generator
PROGRAMMING YOUR PULSE GENERATOR KEY PROGRAMMING COMMANDS The “Programming Manual for -B Instruments” describes in detail how to connect the pulse generator to your computer, and the programming commands themselves. A large number of commands are available; however, normally you will only need a few of these. -
Page 28: All Programming Commands
ALL PROGRAMMING COMMANDS For more advanced programmers, a complete list of the available commands is given below. These commands are described in detail in the “Programming Manual for -B Instruments”. (Note: this manual also includes some commands that are not implemented in this instrument. - Page 29 :SOURce INTernal | EXTernal | MANual | HOLD | IMMediate *CLS [no query form] *ESE <numeric value> *ESR? [query only] *IDN? [query only] *OPC *SAV 0 | 1 | 2 | 3 [no query form] *RCL 0 | 1 | 2 | 3 [no query form] *RST [no query form]...
-
Page 30: Mechanical Information
MECHANICAL INFORMATION TOP COVER REMOVAL If necessary, the interior of the instrument may be accessed by removing the four Phillips screws on the top panel. With the four screws removed, the top cover may be slid back (and off). Always disconnect the power cord and allow the instrument to sit unpowered for 10 minutes before opening the instrument. -
Page 31: Maintenance
MAINTENANCE REGULAR MAINTENANCE This instrument does not require any regular maintenance. On occasion, one or more of the four rear-panel fuses may require replacement. All fuses can be accessed from the rear panel. See the “FUSES” section for details. CLEANING If desired, the interior of the instrument may be cleaned using compressed air to dislodge any accumulated dust. -
Page 32: Wiring Diagrams
WIRING DIAGRAMS WIRING OF AC POWER... -
Page 33: Wiring Of Dc Power
WIRING OF DC POWER... -
Page 34: Pcb 158R7 - Low Voltage Power Supply
PCB 158R7 - LOW VOLTAGE POWER SUPPLY... -
Page 35: Pcb 235D - High Voltage Dc Power Supply
PCB 235D - HIGH VOLTAGE DC POWER SUPPLY... -
Page 36: Pcb 228D - Misc Op Amp
PCB 228D - MISC OP AMP... -
Page 37: Pcb 317A - High-Current Bias Source
PCB 317A - HIGH-CURRENT BIAS SOURCE... -
Page 38: Pcb 104H - Keypad / Display Board
PCB 104H - KEYPAD / DISPLAY BOARD... -
Page 39: Main Wiring - Positive (-P) Units
MAIN WIRING - POSITIVE (-P) UNITS... -
Page 40: Performance Check Sheet
PERFORMANCE CHECK SHEET...
