A V T E C H
E L E C T R O S Y S T E M S
L T D .
N A N O S E C O N D
W A V E F O R M
E L E C T R O N I C S
S I N C E
1 9 7 5
info@avtechpulse.com
Tel: 888-670-8729 (USA & Canada)
BOX 5120, LCD MERIVALE
http://www.avtechpulse.com/
or +1-613-686-6675 (Worldwide)
OTTAWA, CANADA K2C3H5
INSTRUCTIONS

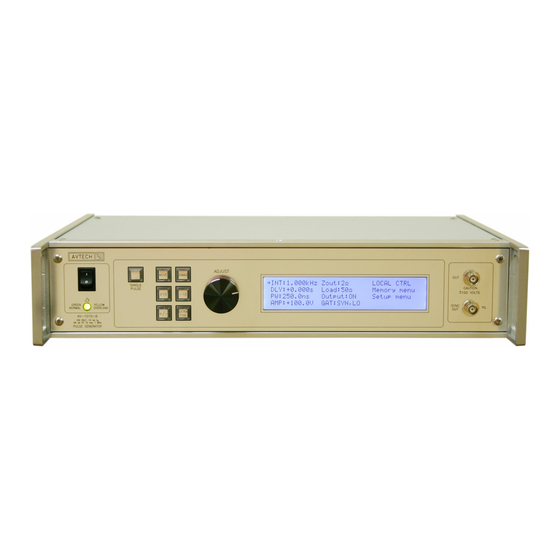

MODEL AV-1011B1-B
±100 VOLT, 2 AMP, 100 kHz
2 ns RISE TIME
GENERAL PURPOSE LAB PULSE GENERATOR
AND LASER DIODE DRIVER
WITH IEEE 488.2 AND RS-232 CONTROL
SERIAL NUMBER:
14330
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for AVTECH ELECTROSYSTEMS AV-1011B1-B
Summary of Contents for AVTECH ELECTROSYSTEMS AV-1011B1-B
- Page 1 Tel: 888-670-8729 (USA & Canada) BOX 5120, LCD MERIVALE http://www.avtechpulse.com/ or +1-613-686-6675 (Worldwide) OTTAWA, CANADA K2C3H5 INSTRUCTIONS MODEL AV-1011B1-B ±100 VOLT, 2 AMP, 100 kHz 2 ns RISE TIME GENERAL PURPOSE LAB PULSE GENERATOR AND LASER DIODE DRIVER WITH IEEE 488.2 AND RS-232 CONTROL...
-
Page 2: Warranty
WARRANTY Avtech Electrosystems Ltd. warrants products of its manufacture to be free from defects in material and workmanship under conditions of normal use. If, within one year after delivery to the original owner, and after prepaid return by the original owner, this Avtech product is found to be defective, Avtech shall at its option repair or replace said defective item. -
Page 3: Table Of Contents
TABLE OF CONTENTS WARRANTY........................2 TECHNICAL SUPPORT....................2 TABLE OF CONTENTS....................3 INTRODUCTION......................5 SPECIFICATIONS......................6 REGULATORY NOTES....................8 FCC PART 18.......................... 8 EC DECLARATION OF CONFORMITY..................8 DIRECTIVE 2011/65/EU (RoHS).....................9 DIRECTIVE 2002/96/EC (WEEE)....................9 FIRMWARE LICENSING.......................10 INSTALLATION......................11 VISUAL CHECK........................11 POWER RATINGS........................ 11 CONNECTION TO THE POWER SUPPLY................11 PROTECTION FROM ELECTRIC SHOCK................12 ENVIRONMENTAL CONDITIONS..................13 LABVIEW DRIVERS...................... - Page 4 PCB 96F - HIGH VOLTAGE DC POWER SUPPLY, 3/3............40 PCB 104G - KEYPAD / DISPLAY BOARD................41 PCB 112C - AMPLITUDE RANGE CONTROL..............42 MAIN WIRING........................43 PERFORMANCE CHECK SHEET................44 Manual Reference: /fileserver1/officefiles/instructword/av-1011/AV-1011B1-B,ed14.odt. Last modified March 16, 2023. Copyright © 2023 Avtech Electrosystems Ltd, All Rights Reserved.
-
Page 5: Introduction
±100 V into 50 Ω. Pulse delay, advance and width are variable up to 1 ms. Rise times are fixed at less than 2 ns. The AV-1011B1-B provides single or double pulse output and can be triggered or gated by an external source. A front-panel pushbutton can also be used to trigger the instrument. -
Page 6: Specifications
SPECIFICATIONS Model AV-1011B1-B Amplitude , with Z = 2Ω: ≤10 to 100 Volts with Z = 50Ω: ≤2 to 50 Volts Pulse width, PW (FWHM) 100 ns to 1 ms Rise time (20%-80%) ≤ 2 ns Fall time (80%-20%) ≤ 2 ns for ≤ 100 us PW ≤... - Page 7 These instruments are provided with a basic calibration checksheet, showing a selection of measured output parameters. These measurements are performed with equipment that is calibrated on a regular basis by a third-party ISO/IEC 17025:2005 accredited calibration laboratory. However, Avtech itself does not claim any accreditation. For applications requiring traceable performance, use a calibrated measurement system rather than relying on the accuracy of the pulse generator settings.
-
Page 8: Regulatory Notes
This instrument does not normally require regular maintenance to minimize interference potential. However, if loose hardware or connectors are noted, they should be tightened. Contact Avtech (info@avtechpulse.com) if you require assistance. EC DECLARATION OF CONFORMITY Avtech Electrosystems Ltd. P.O. Box 5120, LCD Merivale Ottawa, Ontario Canada K2C 3H5 declare that this pulse generator meets the intent of Directive 2004/108/EG for Electromagnetic Compatibility. -
Page 9: Directive 2011/65/Eu (Rohs)
(also known as “RoHS Recast”). In addition, this declaration of conformity is issued under the sole responsibility of Avtech Electrosystems Ltd. Specifically, products manufactured do not contain the substances listed in the table below in concentrations greater than the listed maximum value. -
Page 10: Firmware Licensing
laws) on behalf of the customer, as provided for under Article 9 of Directive 2002/96/EC. Customers who have purchased Avtech equipment through local representatives should consult with the representative to determine who has responsibility for WEEE compliance. Normally, such responsibilities with lie with the representative, unless other arrangements (under Article 9) have been made. -
Page 11: Installation
INSTALLATION VISUAL CHECK After unpacking the instrument, examine to ensure that it has not been damaged in shipment. Visually inspect all connectors, knobs, liquid crystal displays (LCDs), and the handles. Confirm that a power cord, a GPIB cable, and two instrumentation manuals (this manual and the “Programming Manual for -B Instruments”) are with the instrument. -
Page 12: Protection From Electric Shock
Destination Region Description Option Manufacturer Part Number United Kingdom, Hong Kong, BS 1363, -AC00 Qualtek 370001-E01 Singapore, Malaysia 230V, 50 Hz AS 3112:2000, Australia, New Zealand -AC01 Qualtek 374003-A01 230-240V, 50 Hz Continental Europe, Korea, European CEE 7/7 -AC02 Qualtek 364002-D01 Indonesia, Russia “Schuko”... -
Page 13: Environmental Conditions
ENVIRONMENTAL CONDITIONS This instrument is intended for use under the following conditions: 1. indoor use; 2. altitude up to 2 000 m; 3. temperature 5 °C to 40 °C; 4. maximum relative humidity 80 % for temperatures up to 31 °C decreasing linearly to 50 % relative humidity at 40 °C;... -
Page 14: Fuses
FUSES This instrument contains four fuses. All are accessible from the rear-panel. Two protect the AC prime power input, and two protect the internal DC power supplies. The locations of the fuses on the rear panel are shown in the figure below: Fuses #1 and #2 Fuse #4 Fuse #3... -
Page 15: Dc Fuse Replacement
DC FUSE REPLACEMENT The DC fuses may be replaced by inserting the tip of a flat-head screwdriver into the fuse holder slot, and rotating the slot counter-clockwise. The fuse and its carrier will then pop out. FUSE RATINGS The following table lists the required fuses: Recommended Replacement Part Nominal Fuses... -
Page 16: Front Panel Controls
FRONT PANEL CONTROLS 1. POWER Switch . This is the main power switch. When turning the instrument on, there is normally a delay of 10 seconds before anything is shown on the main display, as the internal operating system boots up. 2. - Page 17 5. LIQUID CRYSTAL DISPLAY (LCD) . This LCD is used in conjunction with the keypad to change the instrument settings. Normally, the main menu is displayed, which lists the key adjustable parameters and their current values. The “Programming Manual for -B Instruments” describes the menus and submenus in detail.
-
Page 18: Rear Panel Controls
REAR PANEL CONTROLS GATE TRIG RS-232 GPIB Note: some connectors may be in different positions than shown above, depending on the exact combination of options ordered. 1. AC POWER INPUT . An IEC-320 C14 three-pronged recessed male socket is provided on the back panel for AC power connection to the instrument. One end of the detachable power cord that is supplied with the instrument plugs into this socket. - Page 19 When triggering externally, the instrument can be set such that the output pulse width tracks the pulse width on this input, or the output pulse width can be set independently. 6. GPIB Connector . A standard GPIB cable can be attached to this connector to allow the instrument to be computer-controlled.
-
Page 20: General Information
GENERAL INFORMATION BASIC PULSE CONTROL This instrument can be triggered by its own internal clock or by an external TTL trigger signal. In either case, two output channels respond to the trigger: OUT and SYNC. The OUT channel is the signal that is applied to the load. Its amplitude and pulse width are variable. - Page 21 > 50 ns TRIG TTL LEVELS (external input) (0V and 3V-5V) PROPAGATION DELAY (FIXED) 100 ns, FIXED SYNC OUT 3V, FIXED DELAY > 0 PULSE WIDTH AMPLITUDE, VARIABLE MAIN OUTPUT Figure C As before, if the delay is negative, the order of the SYNC and OUT pulses is reversed. The last figure illustrates the relationship between the signal when an external TTL-level trigger is used in the PW mode.
-
Page 22: Trigger Modes
TRIGGER MODES This instrument has four trigger modes: Internal Trigger: the instrument controls the trigger frequency, and generates the clock internally. External Trigger: the instrument is triggered by an external TTL-level clock on the back-panel TRIG connector. Manual Trigger: the instrument is triggered by the front-panel “SINGLE PULSE”... -
Page 23: Minimizing Waveform Distortions
The output impedance is the resistance in series with the output, inside the instrument. It is different than the load impedance. The output impedance of the AV-1011B1-B can be set at 2Ω or 50Ω using the front panel controls (or GPIB/RS-232 commands). -
Page 24: Use Low-Inductance Loads
, the bandwidth of the oscilloscope must exceed 1/t . For the AV-1011B1-B, the rise time is typically 1 ns, so 1/t = 1 GHz. For best results, the bandwidth of the oscilloscope (and any attenuators and cables used in the measurement system) should exceed 2 GHz. -
Page 25: Operational Check
2. Turn on the AV-1011B1-B. The main menu will appear on the LCD. 3. To set the AV-1011B1-B to trigger from the internal clock at a PRF of 10 kHz: a) The arrow pointer should be pointing at the frequency menu item. If it is not, press the MOVE button until it is. - Page 26 a) Press the MOVE button until the arrow pointer is pointing at the pulse width menu item. b) Press the CHANGE button. The pulse width submenu will appear. Rotate the ADJUST knob until the pulse width is set at 1 us. c) The arrow pointer should be pointing at the “Normal”...
- Page 27 b) Press the CHANGE button. The amplitude submenu will appear. c) Press the “+/-” button. The amplitude as seen on the oscilloscope should become negative. d) Press CHANGE to return to the main menu. This completes the operational check.
-
Page 28: Programming Your Pulse Generator
PROGRAMMING YOUR PULSE GENERATOR KEY PROGRAMMING COMMANDS The “OP1B Interface Programming Manual” describes in detail how to connect the pulse generator to your computer, and the programming commands themselves. A large number of commands are available; however, normally you will only need a few of these. -
Page 29: All Programming Commands
In the above example, the pulse width of the output was set by a programming command. To set the output pulse width to track the trigger pulse width in external mode, use: *rst (resets the instrument) trigger:source external (selects internal triggering) pulse:width in = PW output:impedance 2... - Page 30 :TRIPped? [query only] STATUS: :OPERation :[EVENt]? [query only, always returns "0"] :CONDition? [query only, always returns "0"] :ENABle <numeric value> [implemented but not useful] :QUEStionable :[EVENt]? [query only, always returns "0"] :CONDition? [query only, always returns "0"] :ENABle <numeric value> [implemented but not useful] SYSTem: :COMMunicate...
-
Page 31: Other Information
OTHER INFORMATION APPLICATION NOTES Application notes are available on the Avtech web site, at http://www.avtechpulse.com/appnote. MANUAL FEEDBACK Please report any errors or omissions in this manual, or suggestions for improvement, to info@avtechpulse.com. Thanks! -
Page 32: Mechanical Information
MECHANICAL INFORMATION TOP COVER REMOVAL If necessary, the interior of the instrument may be accessed by removing the four Phillips screws on the top panel. With the four screws removed, the top cover may be slid back (and off). Always disconnect the power cord and allow the instrument to sit unpowered for 10 minutes before opening the instrument. -
Page 33: Maintenance
MAINTENANCE REGULAR MAINTENANCE This instrument does not require any regular maintenance. On occasion, one or more of the four rear-panel fuses may require replacement. All fuses can be accessed from the rear panel. See the “FUSES” section for details. CLEANING If desired, the interior of the instrument may be cleaned using compressed air to dislodge any accumulated dust. -
Page 34: Wiring Diagrams
WIRING DIAGRAMS WIRING OF AC POWER... -
Page 35: Wiring Of Floating Dc Power
J11 = CO NN2-0.156 U13 = RPA 60-2424SFW/P OR PQA 50-D24-S24-D A V-1 01 1 B1 -B1 PO W E R S UP P LY Printed Revision 1 3-Jan -2 02 1 Z :\engineering\circuits\av -101x\av-101x .D db - AV-1011B1-B\OBS\1011B1 PS V5.sch... -
Page 36: Pcb 158R5 - Low Voltage Power Supply
PCB 158R5 - LOW VOLTAGE POWER SUPPLY... -
Page 37: Pcb 235B - High Voltage Dc Power Supply
PCB 235C - HIGH VOLTAGE DC POWER SUPPLY... -
Page 38: Pcb 96F - High Voltage Dc Power Supply, 1/3
PCB 96F - HIGH VOLTAGE DC POWER SUPPLY, 1/3 CON1 OP1B POWER CONNECTOR PCB96 F-MAIN.SCH PCB96 F-MAIN.SCH +1 5V +1 5V -V TO PG -V TO PG -15 V -15 V +V TO PG +V TO PG MAS-CON-2 MAS-CON-2 RELAY-POL RELAY-POL UV ON UV ON... -
Page 39: Pcb 96F - High Voltage Dc Power Supply, 2/3
PCB 96F - HIGH VOLTAGE DC POWER SUPPLY, 2/3 U9 D +V TO PG RN2A RN2C R2 1 C1 0 C1 3 C1 6 10 K R1 3 10 0K RN2E 0.1 uF 0.1 uF 0.1 uF 10 K U1 0B 10 K 56 K R2 0... -
Page 40: Pcb 96F - High Voltage Dc Power Supply, 3/3
PCB 96F - HIGH VOLTAGE DC POWER SUPPLY, 3/3 S PA RE PA RTS +2 4VF 78 15 +1 5VF +1 5V +1 5V Vo ut -15 V -15 V 47 uF,3 5V 47 uF,3 5V GNDF R1 8 HV11 +V TO PG 43 4-13 -33 1M 22 OY... -
Page 41: Pcb 104G - Keypad / Display Board
PCB 104G - KEYPAD / DISPLAY BOARD... -
Page 42: Pcb 112C - Amplitude Range Control
PCB 112C - AMPLITUDE RANGE CONTROL... -
Page 43: Main Wiring
M 10-S150/A/Y (O R S200) R5 = PPA-10-20 (STD) NO D1 AND D2 (STD) CHS GND A V-1 01 1 B1 -B Printed Revisi on 1 3-Jan -2 02 1 1 1A Z :\engineering\circuits\av-101x \av-101x.D db - AV-1011B1-B\1011B1-B WIR ING V11.sch... -
Page 44: Performance Check Sheet
PERFORMANCE CHECK SHEET...
