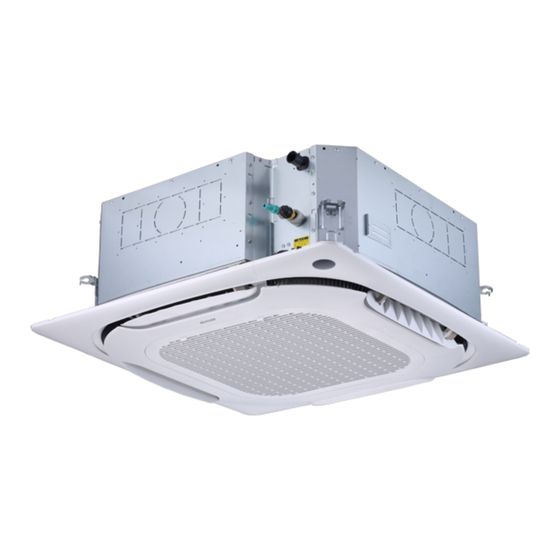

- Page 1 FULL DC INVERTER SYSTEMS USER AND INSTALLATION MANUAL INDOOR UNITS SDV6-Cxxx C O M M E R C I A L A I R C O N D I T I O N E R S S D V 6...
- Page 2 Original instructions IMPORTANT NOTE: Read this manual carefully before installing or operating your new air conditioning unit. Make sure to save this manual for future reference.
- Page 3 For downloading manual for this pro- Um das Handbuch für dieses Produkt duct, please enter the model name at herunterzuladen, geben Sie bitte den this link: Modellnamen für diesen Link ein: Para descargar el manual de este pro- Per scaricare il manuale di questo pro- ducto, ingrese la designación del mo- dotto, inserisci il nome del modello a delo en el siguiente enlace:...
- Page 4 Preface Dear u s e r s , Thank you for purchasing and using our product. Please read this manual carefully before you install, use, maintain or troubleshoot this product so that you can familiarize yourself with the product and use it correctly. For ODUs or other IDUs, please refer to the applicable installation &...
-
Page 5: Table Of Contents
Contents Safety Warning Warning Signs / 1 Safety Precautions / 2 Electric Safety Requirements / 3 Appendix / 3 Operation Operating Precautions / 7 Optimum Operation / 8 Symptoms That Are Not Faults / 9 Display Panel / 11 Installation Installation Precautions / 12 Installation Materials / 20 Preparations Before Installation / 22... -
Page 6: Warning Signs
Please thoroughly read and ensure that you fully understand the safety precautions (including the signs and symbols) in this manual, Safety Warning and follow relevant instructions during use to prevent damage to health or property. Explanation of symbols displayed on the unit This symbol shows that this appliance used a flammable refrigerant. -
Page 7: Safety Precautions
Warning contents Ensure Proper Grounding Professional Only Prohibition signs No Flammable Materials No Strong Current No Open Fire No Acid or Alkali Materials Safety Precautions [ Danger ] During thunderstorms, disconnect the main power switch. Otherwise, lightning may damage the unit. In the event of refrigerant leakage, smoking and open flames are prohibited. -
Page 8: Electric Safety Requirements
Electric Safety Requirements [ Warning ] The air conditioner shall be installed according to the local wiring specifications. Wiring work must be completed by qualified electricians. All wiring work must comply with electrical safety specifications. The air conditioner must be well grounded. Specifically, the main switch of the air conditioner must have a reliable grounding cable. - Page 9 non-sparking, adequately sealed or intrinsically safe. If any hot work is to be conducted on the refrigeration equipment or any associated parts, appropriate fire extinguishing equipment shall be available to hand. Have a dry powder or CO2 fire extinguisher adjacent to the charging area.
- Page 10 When breaking into the refrigerant circuit to make repairs – or for any other purpose – conventional procedures shall be used. However, it is important that best practice is followed. Since flammability is a consideration. The following procedure shall be adhered to: •...
- Page 11 The recovered refrigerant shall be returned to the refrigerant supplier in the correct recovery cylinder, and the relevant Waste Transfer Note arranged. Do not mix refrigerants in recovery units and especially not in cylinders. If compressors or compressor oils are to be removed, ensure that they have been evacuated to an acceptable level to make certain that flammable refrigerant does not remain within the lubricant.
-
Page 12: Operation
Operation Operation Precautions [ Warning ] If the unit will be not used for a long time, disconnect the main power switch. Otherwise, an accident may occur. The installation height of the air conditioner shall be at least 2.5m above the ground to avoid the following risks: 1. -
Page 13: Optimum Operation
Disposal: Do not dispose of this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary. Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact your local government for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being. -
Page 14: Symptoms That Are Not Faults
Operating Range To maintain good performance, operate the air conditioner under the following temperature conditions: Indoor 16~32°C temperature Cooling ≤80% Indoor (When the humidity exceeds 80%, long-time operation of the IDU may cause dew humidity condensation on the surface of the IDU or generate mist-like cold air from the air outlet.) Indoor Heating 15~30°C... - Page 15 Normal Phenomena that Are Not Air Conditioner Faults The following phenomena are normal during operation of the air conditioner. They can be solved according to the instructions below or do not need to be solved. The IDU emits white mist 1.
-
Page 16: Display Panel
In winter, the outdoor temperature is low, and heating effects may be decreased 1. During the heating operation of the heat pump type air conditioner, the air conditioner absorbs heat from the outdoor air and releases it to heat the indoor air. This is the heat pump heating principle of the air conditioner. -
Page 17: Installation
Installation Carefully read this manual before installing the IDU. Installation Precautions Qualification and Safety Regulation Requirements [ Warning ] Please carry out the installation according to local standards. Ask your local dealer or professionals to install the product. This unit must be installed by professional technicians with relevant specialized knowledge. Users MAY NOT install the unit themselves;... - Page 18 Before and after installation, exposing the unit to water or moisture will cause electrical short circuit. Do not store the unit in a humid basement or expose it to rain or water. Make sure the installation base and lifting are robust and reliable; Insecure installation of the base may cause the air conditioner to fall, leading to an accident.
- Page 19 Precautions for Carrying and Lifting the Air Conditioner Before carrying the air conditioner, determine the route that will be used to move it to the installation site. Do not unseal the air conditioner until it is moved to the installation site. When unpacking and moving the air conditioner, you must hold the hanger seat and do not apply force to other parts, especially the refrigerant piping, drainage pipe and plastic accessories, so as to avoid damaging the air conditioner and causing personal injury.
- Page 20 Recommended Installation Sites It is recommended to install the air conditioner according to the design drawing of the HVAC engineer. The selection principle for the installation site is as follows: Ensure that the airflow in and out of the IDU is reasonably organized to form an air circulation in the room. Ensure IDU maintenance space.
- Page 21 Avoid installation in narrow spaces or where there are more stringent noise requirements. The IDU needs to be installed at a position greater than 2.5m and less than 4.5m from the ground. Condensate water can be discharged smoothly. The length of the piping between the indoor and ODUs is within the permitted range. Refer to the Installation &...
- Page 22 Recommended Installation Sites Crowded places such as living rooms and offices The air outlet must not face the areas where people frequently spend time, such as sofas and coffee tables. Instead, let the airflow exit from the side for enhanced comfort. Air outlets at corners can be blocked with optional accessories (which can be found in the packaging material) Air outlet blocked...
- Page 23 Parts Part Description Panel (optional) Air outlet Fresh air inlet Drainage pipe Liquid pipe Gas pipe *Power cable and ground wire *Connection wire Wired controller (optional) Remote controller (optional) Access hole *Communication line Water cover assembly/water level, water level switch check Expanded air inlet/outlet * To be purchased separately on site.
- Page 24 Product Dimensions (Unit: mm) 4-M4 Φ103 Φ105 (Fresh air inlet) 122.5 950 (with panel) Side air outlet (available for four sides) Suspender installation Φ23 (internal diameter) Drainage pipe Φ25 (OD) E: Connect to refrigerant piping (liquid side) Hex nut (to adjust level) F: Connect to refrigerant piping (gas side) Ceiling...
-
Page 25: Installation Materials
Installation Materials Accessories List of accessories Ins tallation & Owner's Brass nut X 2 Cable tie X 4 Thermal insulation Cardboard X 1 Manual X 1 pipe X 2 Used to determine the IDU Ins tallation Ins tructions For use in the ins tallation of To tightly secure the drainage Used for insulation and (Make sure to hand it over to... - Page 26 Locally Purchased Accessories List of accessories Expansion screw (M10)X4 Copper pipe PVC water discharge pipe Thermal insulation pipe Lifting bolt (M10)X4 Used to connect the IDU Used to drain the Used to prevent pipe Used to ins tall the IDU. Used to ins tall the IDU.
-
Page 27: Preparations Before Installation
Preparations Before Installation Unpacking Check Before installation, check whether the packing materials are in The red ① dot bulges good condition, whether the accessories that come with the product Sealing are complete, whether the air conditioner is intact, and whether the surfaces of the heat exchanger and other parts are worn. - Page 28 Determine the positions of the ceiling opening, the unit and the lifting bolts. Cut a hole with a size of 910mm x 910mm according to the (Unit: mm) outline of the mounting cardboard. Shape cutting of the mounting cardboard Lifting bolt hole 4-Φ12 788 (suspender distance) 798 (cardboard fixing hole) 840 (IDU size)
-
Page 29: Idu Installation
When installing the air conditioner on a new ceiling, affix a piece of cardboard to the main body of the installed air conditioner for reference to determine the size, location, and center of the ceiling opening. [ Caution ] Evenly adjust the four hex nuts to make sure that the main body of the air conditioner is level. When the air conditioner is to be fixed onto the ceiling with a frame: The horizontal distance of the overlapping part of the ceiling and decoration panel must be more than 10mm. - Page 30 Installation of Lifting Bolts [ Note ] High-quality carbon steel bolts (galvanized or with other anti-rust paint applied) or stainless steel bolts are used. How the ceiling is treated will differ with the type of building. For specific measures, please consult the building and renovation engineers.
- Page 31 Determine the location of lifting bolts according to the lifting bolt hole at the four corners of the mounting cardboard. a. Drill four holes with a diameter of Φ12mm and a depth of 50–55mm on the roof according to the specified position, and then embed expansion hooks.
- Page 32 For units with fresh air functions, before installing IDUs: 1. Use diagonal pliers to remove the knockout at the fresh air unit at one side of the unit in advance. Install a fresh air flange at the fresh air unit and secure it with the flange connecting screws.
- Page 33 New rooms and new ceilings For the installation of lifting bolts, a hook can be embedded in the new room. Make sure the hook can withstand 4 times the weight of the IDU and will not loosen due to the shrinkage of the concrete. After the main body is lifted, fix the mounting cardboard on the air conditioner unit with M6×16 screws to predetermine the size and position of the ceiling opening.
- Page 34 Panel Installation Remove the air inlet grille Press the two grille clamps at the same time to lift it. Auxiliary buckle Display panel (inner) Grille clamp Decoration panel Louver Air inlet grille Decorative cover plate for corner Raise the air inlet grille to about 45° and remove the grille. 45°...
- Page 35 Install the panel Align the decoration panel with the IDU direction: The following text is engraved on the decoration panel: "Piping side" and "Drainage side". Rotate the decoration panel to align the direction engraved with "Piping side" with the refrigerant piping direction of the IDU. Due to product updates, the current drain side is the same as the piping side, as shown in the two serial numbers ①...
- Page 36 The ceiling shall have sufficient strength to ensure that the panel and the ceiling can be tightly fitted without gap. If the ceiling is not strong enough, add a stiffener. (See the figure below) Stiffener Ceiling Do not pull the display panel and its connecting cable during installation; otherwise a fault could occur.
- Page 37 Pay attention to the direction of the G3 primary filter, including the airflow direction and mounting bracket direction. The wire mesh side is near the fan. The bracket should be placed as shown below, so that the filter can be pulled out easily. The G3 and F6 filters need mounting brackets, which are to be fixed at the air inlet grille using eight 3.9*10 screws.
- Page 38 Install the air inlet grille Tilt the air inlet grille by 45°, and insert the suspension hooks into the hook holes around the return air inlet of the decoration panel. The air inlet grille can be installed at four directions around the return air inlet. But only two directions provide structures to install the safety sling.
- Page 39 Install the decorative cover plate for the corners and the display cover plate Fix the safety sling on the decorative cover plate for corner on the decoration panel. Do not clamp the safety sling when snap-fitting the cover plate Safety sling installation method Snap-fit the decorative cover plate for corner: There are three buckles on the decorative cover plate.
-
Page 40: Refrigerant Connecting Piping Installation
Refrigerant Connecting Piping Installation Length and Level Difference Requirements for the Pipe Connections of IDU and ODU Different ODUs have different requirements for length and level differences for the piping. Refer to the Installation & Owner's Manual attached with the ODU. [ Warning ] During the installation of the connecting pipes, do not allow air, dust, and other debris to penetrate the piping system, and make sure the interior of the pipes is dry. - Page 41 Pipe Connection Steps Measure the required length of the connecting pipe. Make the connecting pipe using the following method (see "Pipe Connection" for details). Connect the IDU first, then connect the ODU. Before tightening the flare nut, apply refrigeration oil on the inner and outer surface of the pipe flare (you must use refrigeration oil compatible with the refrigerant for this model), and turn it 3 or 4 turns by hand to tighten it.
- Page 42 Brazing pipes When brazing pipes, fill the pipes with nitrogen. First evenly heat the inner pipes, then the outer pipes, and fill the joints with welding material. [ Caution ] When it is necessary to fill the piping with nitrogen during welding, the pressure must be kept at 0.02MPa using a pressure relief valve.
- Page 43 The protective nut is a one-time part, it can not be reused. In case it is removed, it should be replaced with a new one.(For IEC 60335-2-40: 2018 only) Handle Yoke Cone Copper pipe Clamp handle Red arrow mark Protective nut Indoor unit tubing Flare nut Pipings...
- Page 44 Vacuum Pumping Check valve Connect the refrigerant piping to the gas and liquid pipes of the ODU, and use a vacuum pump to evacuate the gas and liquid pipes of the ODU at the same time. Do not use the refrigerant enclosed High pressure gauge in the ODU for vacuuming.
-
Page 45: Drainage Pipe Installation
Drainage Pipe Installation [ Caution ] Before installation of the condensate pipeline, determine its direction and elevation to avoid intersection with other pipelines to ensure that the slope is smooth and straight. The highest point of the drainage pipe should be equipped with a discharge port to ensure the smooth discharge of condensate water, and the discharge port must face downwards to prevent dirt from entering the pipe. - Page 46 The drainage pipes of the unit (especially the indoor part) must be evenly wrapped with thermal insulation pipes and fastened with cable ties to prevent air from entering and producing condensate water. Cable tie Drainage pipe Thermal insulation pipe To prevent water from flowing back into the air conditioner when it stops running, avoid installing the drainage pipe in a way that slopes upwards for a long distance.
- Page 47 The end of the drainage pipe must be more than 50mm above the ground or from the base of the water discharge slot. In addition, do not submerge it in water. To discharge the condensed water directly into a ditch, the water discharge pipe must bend upwards to form a U-shaped water plug to stop odors from entering the room via the water discharge pipe.
- Page 48 Water Discharge Test Before the test, make sure that the water discharge pipeline is smooth, and check that each connection is properly sealed. Conduct the water discharge test in a new room before the ceiling is plastered. Drainage pipe Test water outlet Master unit The drainage pipes for IDUs may use a PVC pipe Water cover...
-
Page 49: Electrical Connection
Electrical Connection [ Danger ] The power supply must be cut off before any electrical work is carried out. Do not conduct electrical work when the power is on; otherwise, it may cause serious personal injury. The air conditioning unit must be grounded reliably and must meet the requirements of the local country/region. - Page 50 Electrical Characteristics Electric specifications of the IDU Unit power power Frequency Voltage (kW) input (Hz) 0.51 0.41 0.51 0.41 0.59 0.47 0.59 0.47 0.94 0.75 220~240 1.05 0.84 1.09 0.87 10.0 0.95 0.76 11.2 1.18 0.94 1.41 1.13 14.0 Notes: MCA: Min.
- Page 51 Schematic diagram of the main terminal blocks of main control board CN22 CN10 CN18 CN55 Terminals of function Terminals of remote M1 M2 D1(X) D2(Y) module adapter board switch signal Power cable and earth Terminals of communication line Terminals of strong Alarm signal line terminals current sterilization...
- Page 52 Weak current inlet Strong current inlet Communication Power cable and line and ground ground wire, etc. wire, etc. [ Caution ] The strong and weak current wires must be separated. Alarm signal output, strong current sterilization, remote switch, and function expansion board are custom or optional functions.
- Page 53 [ Caution ] Do not bond and connect the power cable. Bonding and connecting the power cable may cause it to heat up, resulting in a fire. The power cable must be crimped reliably using an If it fails to crimp the insulated circular terminal block due to insulated circular terminal block, and then connected on-site limitations, connect the power cables of the same to the power supply terminal of the IDU, as shown in...
- Page 54 2. Power cable system connection Power cable system connection depends on the forms of communication between the IDU and ODU. For the HyperLink communication form with independent power supply, IDUs are allowed to have independent power supply. For other communication forms, IDUs should be provided with uniform power supply. IDUs are provided with independent power supplies*, which are wired as follows: For HyperLink communication with independent power supply: Master ODU...
- Page 55 IDUs are provided with uniform power supply*, which are wired as follows: 1. HyperLink communication with the uniform power supply: Power supply for IDU L1+La+Ln ≤ 2000m Wire diameter: 0.75mm2 × × Communication wire Circuit breaker Power cable Distribution box Distribution box Master ODU IDU 1#...
- Page 56 [ Caution ] When the IDUs are provided with a uniform power supply, if the IDUs in the same refrigerant system SDV6IDUs, then IDUs and ODU can communicate either via HyperLink with a uniform power supply, via P/Qcommunication. If some of the IDUs in the same refrigerant system are non-SDV6 series, then IDUs and ODUcan only communicate via P/Q or P/Q/E communication.
- Page 57 2. Table of selection of communication line diameter One controller One-to-more to one IDU (centralized Function IDU and ODU communication (Two controllers controller) to one IDU) Communication Communication HyperLink communication HyperLink communication P/Q communication P/Q/E communication X1X2 D1D2 Item (IDUs are powered (IDUs are (IDUs are (IDUs are...
- Page 58 3. IDU and ODU communication HyperLink communication (with independent power supply) Single unit: HyperLink communication is a new type of IDU and ODU communication technology. When the IDUs are provided with independent power supplies, use 2×1.5mm communication cables. M1 and M2 ports are located at terminal block "CN10"...
- Page 59 [ Caution ] If the total distance is ≤ 200m and the total number of IDUs is ≤ 10 sets, the valve is powered and controlled by the master ODU. If the total distance is longer than 200m or the total number of IDUs is more than 10 sets, a repeater is required to increase the bus voltage.
- Page 60 System: The HyperLink communication line with a uniform power supply between IDU and ODU can reach a length of up to 2000 meters, supporting any topology connection. The following figure shows a serial connection: Power supply for IDU Communication wire Circuit breaker Power cable Distribution box...
- Page 61 System: The maximum total length of the P/Q communication cable of the IDU and ODU can be up to 1200m, and can be connected in serial, as shown in the figure below: Power supply for IDU Communication wire × × Circuit breaker Power cable Distribution box...
- Page 62 [ Caution ] When P/Q or P/Q/E communication is used, the IDUs need to be powered uniformly. Either P/Q, P/Q/E communication or HyperLink communication can be selected. If it is required for IDUs to have independent power supplies, then HyperLink communication must be selected. Use only shielded cables for P/Q or P/Q/E communication.
- Page 63 5. D1D2 communication line connection (limited to ODU and system configuration) Achieving one-to-multiple and two-to-multiple functions of the IDU wired controller through D1D2 communication (a maximum of 16 sets) D1D2 communication is 485 communication. The one-to-more and two-to-more functions of the IDU wired controller can be achieved through D1D2 communication, as shown in the figure below: IDU 2# IDU 16#...
- Page 64 External board connection (limited to ODU and system configuration) The external board is a connection module outside the main control board, including a display panel, a function module adapter board, and optional function expansion boards 1 and 2. 1. Display panel connection The display panel is connected to the main control board through a 4-core cable, and is connected to the "CN30"...
- Page 65 Reclose the electric control box cover Straighten out the connecting wires and lay them flat, and close the electric control box cover again. [ Caution ] Do not cover the electric control box during power-on. When covering the electric control box, arrange the cables carefully and do not clip the connecting wires on the electric control box cover.
-
Page 66: Application Control
Application Control Error Codes and Definitions In the following circumstances (warning failures excluded), please stop the air conditioner immediately, cut off the power switch and contact the local air conditioner customer service center. The error code is displayed on the display panel and the wired controller display. Error Error code Digital display... - Page 67 Error Error code Digital display Abnormal communication between the IDU and ODU Abnormal communication between the IDU main control board and fan drive board Abnormal communication between the IDU and wired controller Abnormal communication between the IDU and Wi-Fi Kit Abnormal communication between the IDU main control board and display board Abnormal communication between the AHU Kit slave unit and master unit Number of AHU Kits is not the same as the set number...
- Page 68 Error Error code Digital display The built-in room temperature sensor of the wired controller short-circuits or cuts off The wireless temperature sensor short-circuits or cuts off The external room temperature sensor short-circuits or cuts off Tcp (pre-cooled fresh air temperature sensor) short-circuits or cuts off Tph (pre-heated fresh air temperature sensor) short-circuits or cuts off TA (outlet air temperature sensor) short-circuits or cuts off Outlet air humidity sensor fault...
- Page 69 Error Error code Digital display Low bus voltage fault High bus voltage fault Phase current sample bias error Motor and IDU are unmatched The IPM and IDU are unmatched Motor startup failure Motor blocking protection Speed control mode setting error Phase lack protection of motor Operating Status Codes and Definitions (Non-Error) Definition...
- Page 70 Spot Check Description Use the bi-directional communication wired controller (for example, SWC-61) to activate the spot check function in the following steps: 1. On the main page, hold " " and "▲" for 2s to enter Check No. the query page. The ODU displays u00-u03, the IDU displays n00-n63 (the last two digits show the IDU Spot check address), and the wired controller displays CC.
- Page 71 Parameter setting interface Hold for 3s to Selection BACK OK key enter the page buttons button Parameter code Parameter name Parameter range Default value Remarks The IDU sets the Unit external Unit external static pressure: selected corresponding static pressure 00/01/02/03/04/05/~/19 static pressure value FF.
-
Page 72: Test Run
Test Run Before the Test Run, Make Sure That IDUs and the ODU are properly installed. The piping is correct, and the refrigerant piping system has been checked for leakage. Piping length and the amount of refrigerant charged have been recorded. The wiring is correct and firm without virtual connection issues. - Page 73 Inspection After Installation To ensure a comfortable indoor environment, please run down through the list to check whether the installation of the air conditioner meets the requirements. Insert a "×" for Fail and a "√" for Pass. Check Result Check Item Check Criteria (Pass/Fail) The air conditioner does not fall or...
-
Page 74: Cleaning, Maintenance And After-Sales Service
Cleaning, Maintenance and After-Sales Service Safety Warning [ Warning ] For safety reasons, always turn off the air conditioner and turn off the power before cleaning the air conditioner. Do not disassemble or repair the air conditioner by yourself; otherwise, it may cause fire or other hazards. Only professional service personnel can carry out the maintenance. - Page 75 Procedure diagram Remove the air inlet grille. Press the two grille clamps at the same time to lift it. Raise the air inlet grille to about 45°, and remove the grille. Auxiliary buckle Display panel (inner) 45° Grille clamp Decoration panel Louver Air inlet grille Decorative cover...
- Page 76 Cleaning Air Outlets and Exterior Panels Wipe the air outlet and panel with a dry cloth. If a stain is hard to remove, clean it with clean water or neutral detergent. [ Caution ] Do not use gasoline, benzene, volatile agents, decontamination powder or liquid insecticides. Otherwise, the air outlet or panel may become discolored or deformed.
-
Page 77: Maintenance Of Conventional Parts
Maintenance of Conventional Parts Maintenance of Electronic Control Main Board and Room Temperature Sensor Open the air inlet grille. Press the two grille clamps of the air inlet grille to the left and open the grille downwards. Raise the air inlet grille to about 45°, and push the grille towards the unit direction to separate the grille from the panel. - Page 78 Maintenance of Fan Follow the steps above to remove the main control board and the main control board support. Loosen the four screws on the right and remove Replace the fan after removing the nuts at the the sheet metal of the electric control box; loosen center of the fan and the fan clip.
- Page 79 Maintaining the Evaporator and Temperature Sensor Follow the steps above to remove the air inlet grille (recover refrigerant before repairing the evaporator). Loosen the locking screws at four corners and remove Remove the decoration panels at four corners. the hooks at four corners of the panel from the IDU. Take the auxiliary hooks of the panel from the air guide ring to remove the panel.
- Page 80 First remove the screws (three) connecting the electric control box and the sealing plate, and then remove the screws (four) of the wire clip and the screw (one) of the electric control box. Connection between the electric control box assembly and sealing plate Wire clip Screw (three)
- Page 81 Remove the connecting pipes of IDU and ODU After removing three fixing screws, remove the and unscrew the two screws of the sealing evaporator board. Then remove plate of the piping to remove the plate. evaporator. Connecting pipes of the IDU and ODU Screw Screw (two)
- Page 82 Maintenance of Water Pump Follow the steps above to remove the air inlet grille, electric control box cover, wires, panel, electric control box, air guide ring, and drain pan. Unplug the drainage pipe. After removing the two fixing screws, the pump can be taken out for replacement or maintenance. Remove the fixing screws of the water pump and the pump bracket, and remove the water pump and water level switch.
- Page 84 United Kingdom www.sinclair-world.com This product was manufactured in China (Made in China). R E P R E S E N T A T I V E SINCLAIR Global Group s.r.o. Purkynova 45 612 00 Brno Czech Republic T E C H N I C A L S U P P O R T SINCLAIR Global Group s.r.o.
