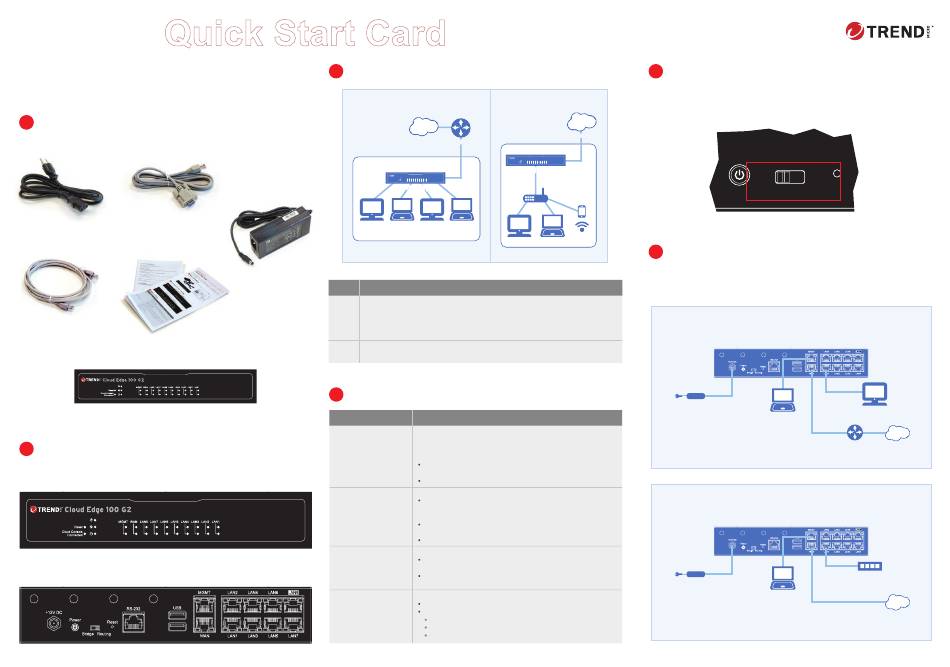

Trend Micro Cloud Edge 100 G2 Quick Start Manual

TREND MICRO
TM
Cloud Edge 100 G2
Trend Micro Cloud Edge is a next generation security solution for MSPs (Managed
Service Provider) that combines on-premises and cloud-based security features. Deploy
your Cloud Edge gateways on-premises and the MSP can remotely manage your
network through the cloud.
1 1

Opening and Inspecting the Carton

Opening and Inspecting the Carton
Verify that the Cloud Edge gateway carton contains the following items: Verify that the Cloud Edge gateway carton contains the following items:
Serial cable
Power Cord
Ethernet cables (2)
Documents
Cloud Edge Gateway
2

Examining the Cloud Edge Gateway

Cloud Edge Gateway Front Panel
Cloud Edge Gateway Back Panel
3

Deployment Modes

Bridge Mode
Internet
Cloud Edge 100 G2
MGMT WAN LAN8 LAN7 LAN6 LAN5 LAN4 LAN3 LAN2 LAN1
Reset
Cloud Console
Connected
Cloud Edge Cloud Edge
... ...
LAN1 LAN2 LAN3
AC adapter
Mode
Bridge The Cloud Edge gateway acts as a transparent layer 2 device, providing scan and threat
protection without interrupting traffic flow. In addition, the gateway functions as a
hardware switch with a WAN port that provides the uplink to the Internet and seven LAN
ports that can be connected directly to endpoints such as clients, servers, and Wi-Fi
access routers.
Routing
The Cloud Edge gateway is visible on the network and acts as a layer 3 routing device
with traffic scanning and control capabilities.
4

Deployment Checklist

Requirement
Ethernet cables (3 cables) Connect a laptop to the MGMT port. Connect the WAN port, which
serves as an uplink to the Internet, to the upstream side of the
network.
Bridge Mode:
Connect the LAN1 port to an internal endpoint.
Routing Mode:
Connect the LAN1 port to an internal network.
IP addresses (1-2 Bridge Mode:
Obtain information for one internal address (sw0), either DHCP or
addresses)
static (IP address, netmask, and gateway).
Routing Mode:
Obtain the information about connecting to the WAN from your
Internet Service Provider (ISP): DHCP, Static, or PPPoE.
Obtain IP address information for the LAN1 connection (Static).
Bridge Mode:
DNS settings
Your network DNS server IP addresses.
Routing Mode:
Use either automatic DNS settings assigned by the ISP's DHCP or
obtain your network DNS server IP addresses.
Laptop with Ethernet port A computer that has the following software installed:
Adobe ™ Flash ™ 10 or later
Supported web browser
•
Firefox ™ 61 or later
•
Google ™ Chrome 68 or later
•
Internet Explorer ™ 10-11
Routing Mode/Bridge Mode
Routing Mode
Internet Internet
Router
Cloud Edge 100 G2
MGMT WAN LAN8 LAN7 LAN6 LAN5 LAN4 LAN3 LAN2 LAN1
Reset WAN
Cloud Console Connected
Cloud Edge Cloud Edge
LAN
WAN
...
Switch
...
LAN7
WLAN
Description
Details
5

Setting up the Hardware

1. Toggle the switch on the back panel as needed.
2. Connect the Cloud Edge gateway to a power source.
3. Power on the Cloud Edge gateway.
Power
Reset
Bridge Routing
6

Connecting to the Network

1. Connect the WAN port to a wide area network (i.e. Internet).
2. Connect the LAN1 port to an internal endpoint (Bridge Mode) or an internal
network (Routing Mode).
Bridge Mode
100 - 240V AC
AC Adapter
Management
Laptop
Routing Mode
100 - 240V AC
AC Adapter
Management
Laptop
Endpoint
Modem/Router Internet
Internal
Switch
Internet
