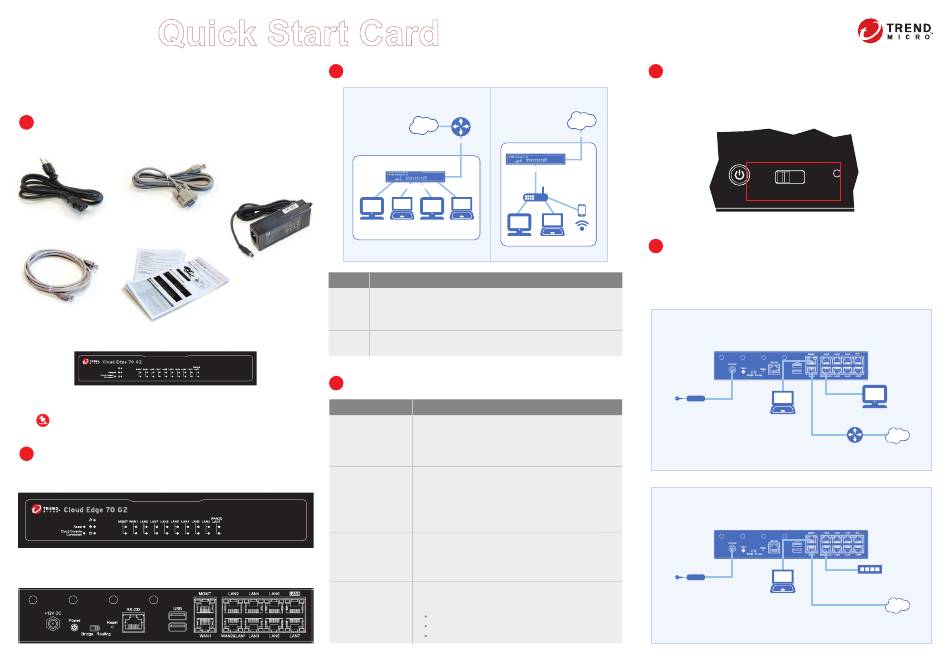

Trend Micro Cloud Edge 70 G2 Quick Start Manual

TREND MICRO
TM
Cloud Edge 70 G2
Trend Micro Cloud Edge is a next generation security solution for MSPs (Managed
Service Provider) that combines on-premises and cloud-based security features. Deploy
your Cloud Edge 70 G2 on-premises and the MSP can remotely manage your network
through the cloud.
1 1

Opening and Inspecting the Carton

Opening and Inspecting the Carton
Verify that the Cloud Edge gateway carton contains the following items: Verify that the Cloud Edge gateway carton contains the following items:
Serial cable
Power Cord
Ethernet cable
Documents
Cloud Edge Gateway
Note: Cable connectors and colors may vary depending on product version.
2

Examining the Cloud Edge Gateway

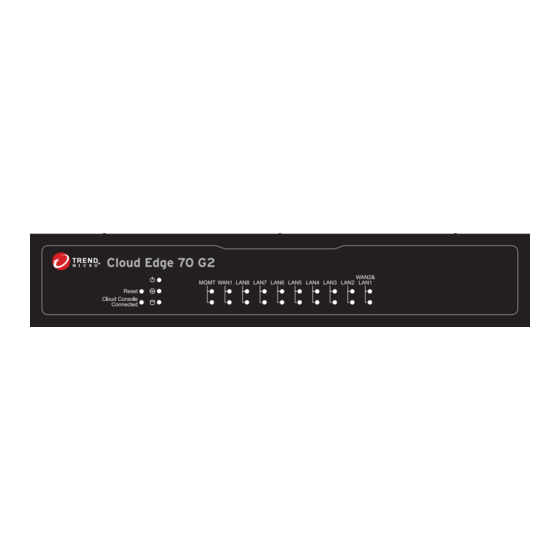

Cloud Edge Gateway Front Panel

Cloud Edge Gateway Back Panel

3

Deployment Modes

Bridge Mode
Internet
Cloud Edge Cloud Edge
... ...
LAN1 LAN2 LAN3
AC adapter
Mode
Bridge Gateway acts as a transparent layer 2 device, providing scan and threat
protection without interrupting traffic flow. Also functions as a hardware
switch. WAN1 connects to the Internet and seven LAN ports connect
directly to endpoints.
Routing Gateway is visible on the network and acts as a layer 3 routing device with
traffic scanning and control capabilities.
4

Deployment Checklist

Requirement
Ethernet cables (3) Connect to MGMT and WAN ports.
Bridge Mode:
Connect LAN1 to internal endpoint.

Routing Mode:
Connect LAN1 to internal network.

IP addresses (1-2) Bridge Mode:
Internal address for virtual interface (sw0): DHCP or Static

(IP address, netmask, gateway)
Routing Mode:
External address for WAN1: DHCP, Static, or PPPoE (user

name/password)
Internal address for LAN1 (Static)

DNS settings Bridge Mode:
Your network DNS server IP addresses.

Routing Mode:
Your network DNS server IP addresses if not assigned by

ISP
Laptop with Ethernet Laptop with the following:
port Adobe ™ Flash ™ 10 or later

Supported web browser

• Firefox ™ 70 or later
• Google ™ Chrome 78 or later
• Internet Explorer ™ 11
Routing Mode/Bridge Mode
Routing Mode
Internet Internet
Router
WAN
Cloud Edge Cloud Edge
LAN
WAN
...
Switch
...
LAN7
WLAN
Description
Details
5

Setting up the Hardware

1. Toggle the switch on the back panel as needed.
2. Connect the Cloud Edge gateway to a power source.
3. Power on the Cloud Edge gateway.
Power
Reset
Bridge Routing
6

Connecting to the Network

1. Connect the WAN1 port to a wide area network (i.e. Internet).
2. Connect the LAN1 port to an internal endpoint (Bridge Mode) or an internal
network (Routing Mode).
3. Power on the Cloud Edge gateway.
Bridge Mode
100 - 240V AC
AC Adapter
Management
Laptop
Routing Mode
100 - 240V AC
AC Adapter
Management
Laptop
Endpoint
Modem/Router Internet
Internal
Switch
Internet
