Network VirusWall Enforcer 3600i (R420 Series)
TM
Trend Micro Network VirusWall Enforcer 3600i controls access to
™ ™
your corporate network to ensure that all devices — managed or
unmanaged, local or remote — comply with corporate security policies
before they connect. It prevents threats from entering the network by
scanning devices for the most up-to-date security software and critical
Microsoft patches.
™
Use this Quick Start Guide to get Network VirusWall Enforcer up and
running on your network. To obtain more information on product
features and advanced settings, see the following documentation:
Dell Product Information Guide—this printed document provides
™

safety, environmental, and regulatory information about the device.
Read the safety information in this document before using Network
VirusWall Enforcer.
Readme — a text file on the DVD provided, the Readme covers

basic getting started instructions, new features, known issues, and
late-breaking information.
Installation and Deployment Guide — included in the DVD, this PDF

document describes installation, planning, deployment, and initial
configuration.
Administrator's Guide — also in the DVD provided, this PDF document

contains a comprehensive overview of Network VirusWall Enforcer.
It also provides detailed configuration and management information.
For the latest versions of Network VirusWall Enforcer documents, visit
the Trend Micro Update Center at
http://www.downloadcenter.trendmicro.com.
1

Open and inspect the package

Your package should include the following items:
Device with bezel Power cord
Rack kit Documents & DVD-ROM
If there are any items missing in your package, please contact your
Trend Micro sales representative.
2

Understand the device interface

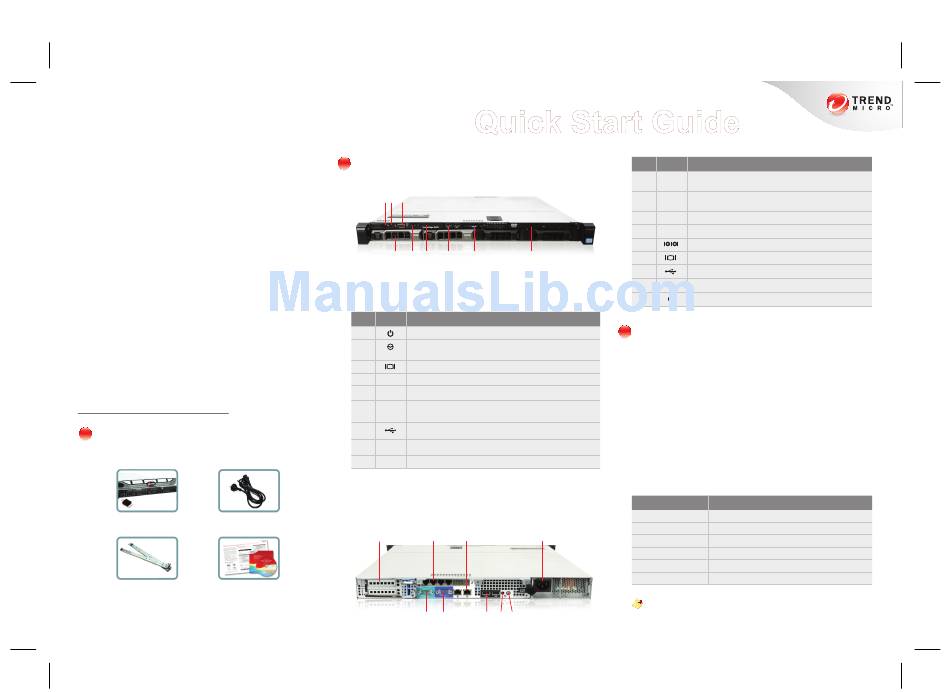

Review the physical interface of your Network VirusWall Enforcer device.
1 2 3
4 5 6 7 8

Front Panel

The front panel provides a quick way to connect a keyboard
and a VGA monitor to the device.
Item Icon Component
1 Power-on indicator, power button
2 Nonmaskable interrupt (NMI) button for troubleshooting
software and driver issues with support
3 Video connector
4 2.5-inch hard drive
5 LCD menu buttons for use with support
6 LCD panel provides device ID, status information, and
system error messages for use with support
7 USB 2.0 connectors
8 Device identification panel
9 DVD drive

Back Panel

The back panel contains all the network interface ports. These ports
are grouped into the management interface ports and the data
interface ports.
1 2 3
5 6 7 8 9
Item Icon Component
1 Optional expansion card ports using a Silicom
server adapter card (data interface)
2 Expansion card ports using a Silicom
adapter card (data interface)
3 Onboard Ethernet ports (management interface)
4 Power supply connector
5 Serial connector
9
6 Video connector
7 USB 2.0 connectors
8 Device status indicator connector
9 Device identification button for locating the device in a rack
3

Plan your deployment

Decide how to integrate the device into your network and determine
which topology it will support. Position Network VirusWall Enforcer
between layer 2 and layer 3 switches to scan all packets entering
and leaving that section of the network.
Identify segments of your network to protect by considering which
kinds of endpoints may introduce viruses or violate security policies.
Also, consider the location of resources that are critical to your
organization.

Network Settings

As part of your deployment planning, prepare the network settings
that the devices should use to successfully connect to your network
and scan packets.
Setting
IP Address
Netmask/Prefix Length
4
Default gateway
DNS Server 1
DNS Server 2
VLAN
Note: If you are connecting Network VirusWall Enforcer to a dual-stack
network, you need to supply IPv4 and IPv6 addresses.
LAN bypass
™
LAN bypass server
™
Value
