Thank you for being our valued customer. Be sure to check all packing materials carefully for small parts which may have
come loose inside the carton during shipment. Identify and count all items and compare them with the parts list and
hardware list below.
CAUTION: Read the instructions carefully before assembly.
1. We recommend that you assemble this product with the assistance of another person to eliminate damage to the
product during assembly.
2. Do not over-tighten the screws and bolts as they may damage the threads.
3. Keep all hardware parts out of reach of children.
4. When you want to reposition the product, please always "LIFT & MOVE".
PARTS LIST
NO.
DESCRIPTION
A
Headboard
B
Headboard Leg
C
Footboard
D
Bed Rail
E
Slat
F
Support Leg
Step 1
Attach Headboard Leg (B) to
Headboard (A) by using Bolt (1).
1
B
All images shown are for illustration purposes only. The actual product may vary due to product enhancement.

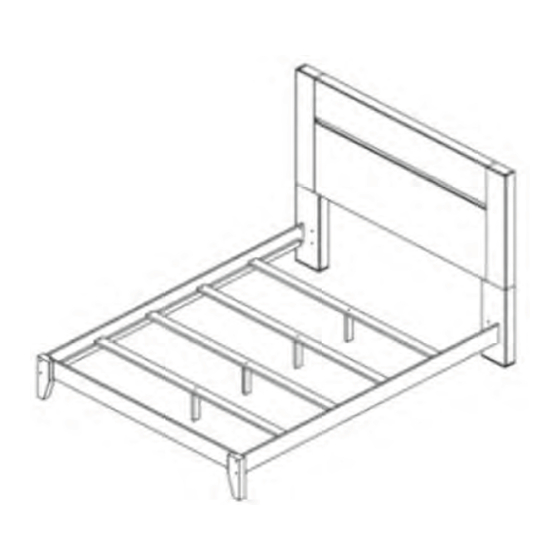

ASSEMBLY INSTRUCTIONS
DOMINGO COLLECTION
B5902-110
B5902-130
SKETCH
1
1
1
A
6/6-6/0 EK/WK Headboard
6/6 EK Footboard And Rails
QTY
NO.
1PC
1
2PCS
2
1PC
3
2PCS
4
4PCS
5
4PCS
Step 2
Turn the finished headboard around.
5
1
1
HARDWARE LIST
DESCRIPTION
Bolt 1/4" x 1 1/2"
Bolt 1/4" x 3 1/4"
Bolt 1/4" x 4 3/4"
Chipboard Screw
Allen Wrench
SKETCH
QTY
10PCS
4PCS
4PCS
8PCS
2PCS
1 of 2
Advertisement
Table of Contents
Related Manuals for New Classic Furniture DOMINGO B5902-110
Summary of Contents for New Classic Furniture DOMINGO B5902-110

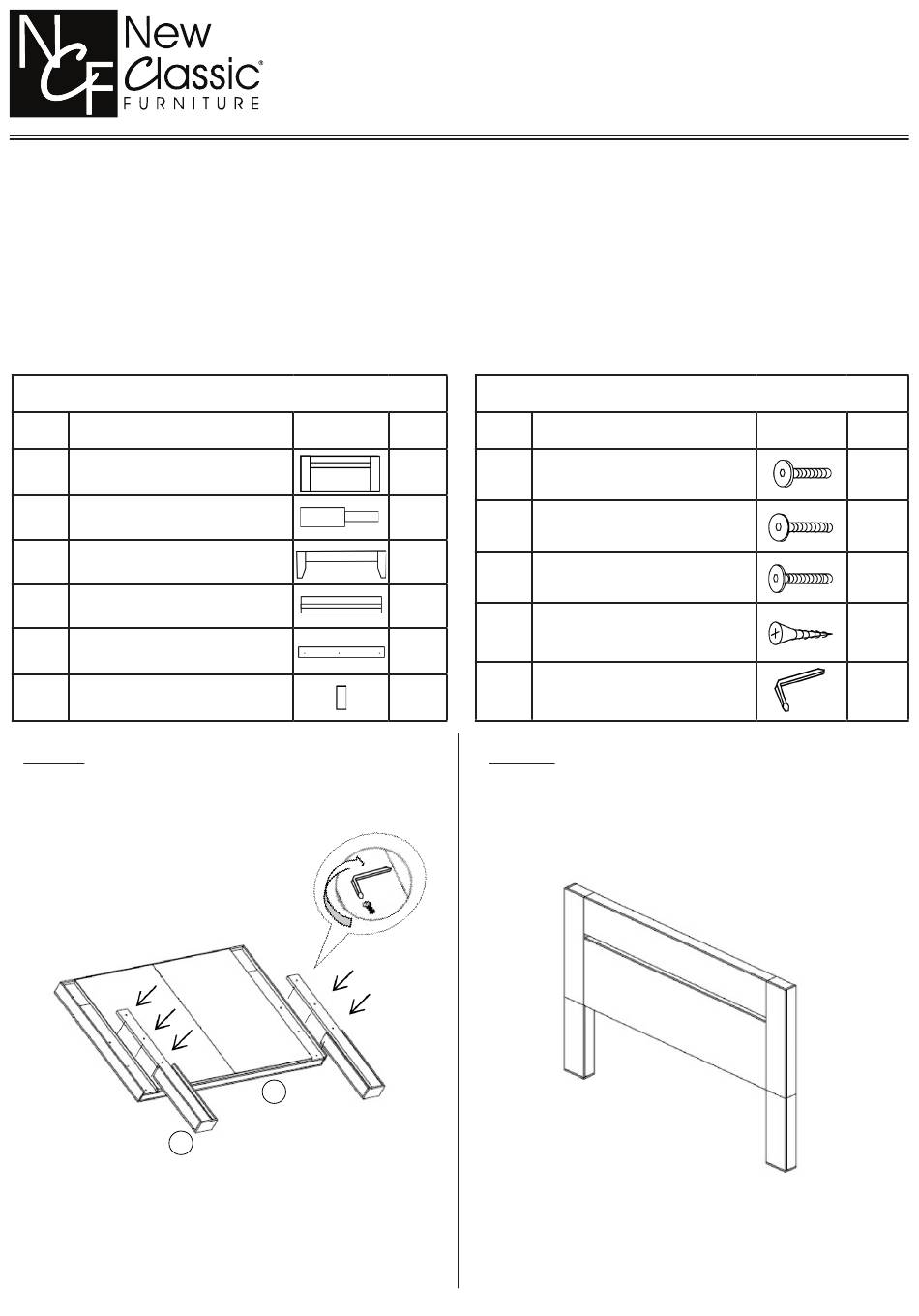

- Page 1 ASSEMBLY INSTRUCTIONS DOMINGO COLLECTION B5902-110 6/6-6/0 EK/WK Headboard B5902-130 6/6 EK Footboard And Rails Thank you for being our valued customer. Be sure to check all packing materials carefully for small parts which may have come loose inside the carton during shipment. Identify and count all items and compare them with the parts list and hardware list below.
