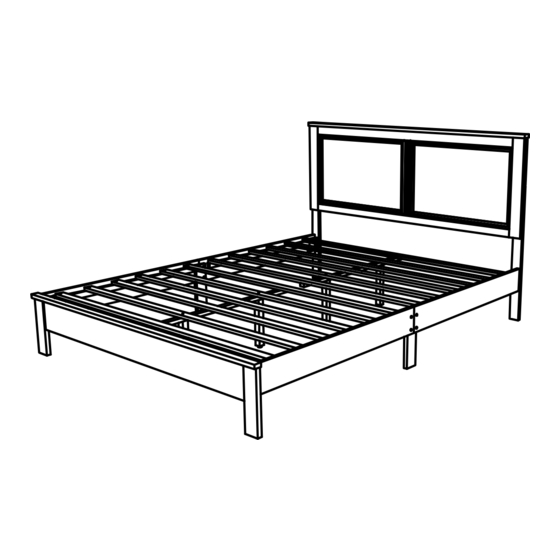

New Classic Furniture B561-300 ARIES 5/0 Q PANEL BED-HB/FB/RAILS Assembly Instructions

Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small parts,
which may have come loose inside the carton during shipment. Identify and count all items and compare with
the parts list and/or hardware list shown.
PARTS LIST
No
A Headboard
B
Footboard
C
Headboard Leg LSF
D Headboard Leg RSF
E Bed Roll-Out Slats
F
Bed Slats Support
G
Side Rail Left
H
Side Rail Right
I
Center Slat
J
Side Rail Leg
Attach Head Board Leg ( C,D ) to Head Board ( A ) as shown using
STEP 1.1 :
Flat washer (3)and securing with ALLEN KEY ( 4 ) .
STEP 1.2 : Fix the other holes with Csk Screw (6) as shown.
A
RIGHT
D
NOTE : MUST TIGHTEN SCREWS PERIODCALLY WITH USE SCREW WILL BECOME LOOSE CHECK TIGHTNESS OF ALL SCREW EVERY 6-8 WEEKS.
ASSEMBLY INSTRUCTIONS
B561-300 ARIES 5/0 Q PANEL BED-HB/FB/RAILS
ITEM
2 sets
C
LEFT
BACK VIEW
STEP 1.1 :
Qty No
1 pc
1
1 pc
2
1 pc
1 pc
3
4 pcs
4
2 pcs
2 pcs
1 pc
5
2 pcs
6
C
4x
HARDWARE LIST
ITEM
JCBC M6 x 30mm
JCBC M6 x 50mm
Flat Washer 1/4"ID x
19mmOD Blk
ALLEN KEY
m4x65mm Blk
(FOR HB LEG)
ALLEN KEY
m5x65mm Blk
(FOR SIDE RAIL)
Flat Head Chipboard
Screw m4x32mm Rbw
JCBC BOLT( 1 ) with
4
1
C
3
STEP 1.2 :
Qty
12 pcs
4 pcs
12 pcs
1 pc
1 pc
32 pcs
6
8x
1 OF 2
