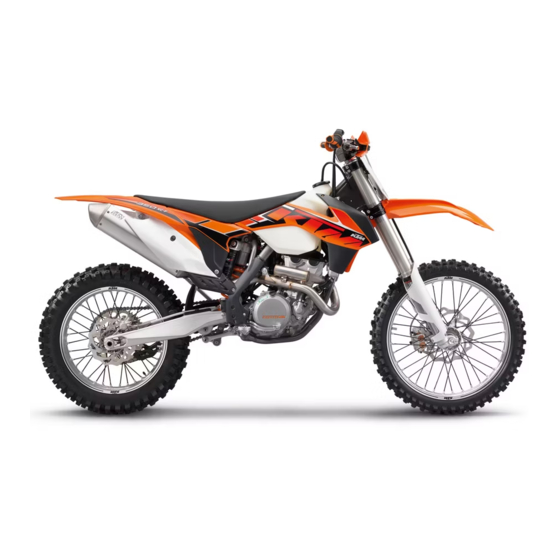

SETUP INSTRUCTIONS
2014
350 SX‑F EU
350 SX‑F USA
350 XC‑F USA
Art. no. 3213127en

Advertisement

loading
Need help?

Need help?

Do you have a question about the 350 SX-F EU 2014 and is the answer not in the manual?

Questions and answers

Summary of Contents for KTM 350 SX-F EU 2014

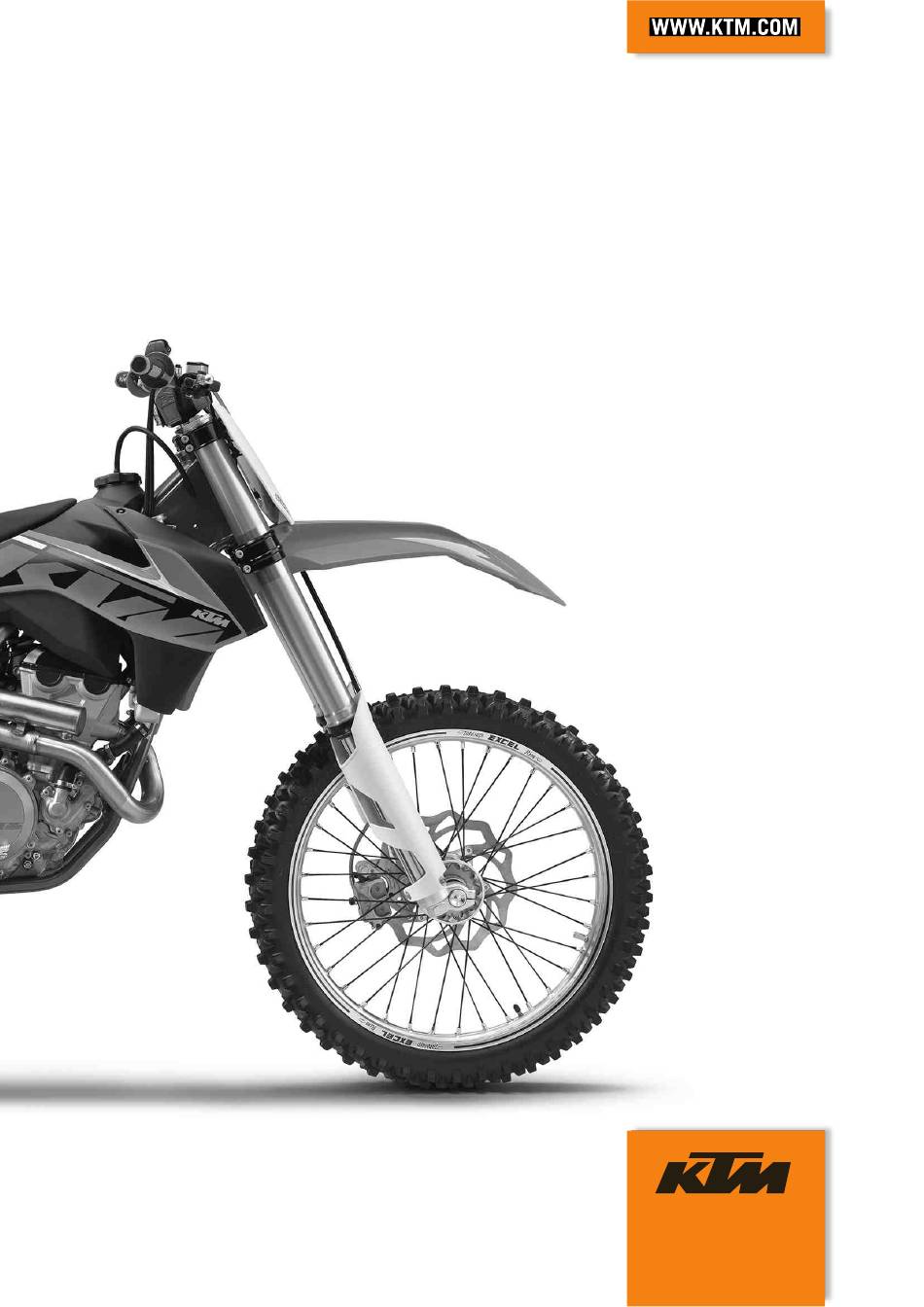

  • Page 1 SETUP INSTRUCTIONS 2014 350 SX‑F EU 350 SX‑F USA 350 XC‑F USA Art. no. 3213127en...
  • Page 3 KTM accepts no liability for delivery options, deviations from illustrations and descriptions, as well as misprints and other errors.
  • Page 4: Means Of Representation

    MEANS OF REPRESENTATION Symbols used The meaning of specific symbols is described below. Indicates an expected reaction (e.g. of a work step or a function). Indicates an unexpected reaction (e.g. of a work step or a function). Indicates a page reference (more information is provided on the specified page). Indicates information with more details or tips.
  • Page 5 SETUP Unpacking and setting up the vehicle Packaging 2 – Remove the box and the plastic packaging. Info To avoid damaging the motorcycle during the setup, leave the protective film on the vehicle until you have finished. – Remove the separate enclosure and unpack it. Check that the scope of supply is complete on the basis of the enclosed packing list.
  • Page 6 SETUP – Position FI warning lamp with holder . Mount and tighten screw. Guideline Remaining screws, chassis 10 Nm (7.4 lbf ft) – Attach connector to the wiring harness. – Mount cable holder to the frame. B00534-10 – Route the clutch line with the clutch master cylinder toward the front between the upper and lower triple clamps.
  • Page 7 Apply the label included in the delivery (optional). – Refuel. ( p. 10) – Position all controls in their exact positions on the handlebar. Tighten all screws. – Print out the current PDI form found on KTM DEALER.NET and perform the delivery inspection.
  • Page 8 WORK Raising the motorcycle with the lift stand Note Danger of damage The parked vehicle may roll away or fall over. – Always place the vehicle on a firm and even surface. – Raise the motorcycle at the frame underneath the engine. The wheels must no longer touch the ground.
  • Page 9 WORK – Mount and tighten screw Guideline Screw, front wheel spindle M24x1.5 45 Nm (33.2 lbf ft) – Activate the hand brake lever multiple times until the brake linings are in contact with the brake disc. – Remove the motorcycle from the lift stand. ( p.
  • Page 10: Installing The Battery

    WORK Removing the seat – Remove screw – Lift up the seat at the rear, pull it back and then remove it from above. 101279-10 Mounting the seat – Hook in the front of the seat at the collar bushing of the fuel tank, lower it at the rear and simultaneously it push forward.
  • Page 11 – Do not discard batteries with the household waste. Dispose of faulty batteries in an environmentally compatible manner. Give the battery to your authorized KTM dealer or dispose of it at a collection point for used batteries. Warning Environmental hazard Hazardous substances cause environmental damage.
  • Page 12 WORK Warning Environmental hazard Improper handling of fuel is a danger to the environment. – Do not allow fuel to get into the ground water, the ground, or the sewage system. (All SX‑F models) – Turn filler cap counterclockwise and lift it off. B01452-10 (XC‑F) –...
  • Page 13 WORK Note Material damage Premature clogging of the fuel filter. – In some countries and regions, the available fuel quality and cleanliness may not be sufficient. This will result in problems with the fuel system. – Only refuel with clean fuel that meets the specified standards. Warning Environmental hazard Improper handling of fuel is a danger to the environment.
  • Page 14: Technical Data - Tightening Torques For Chassis

    TECHNICAL DATA - TIGHTENING TORQUES FOR CHASSIS – EJOT PT ® Screw, air filter box lid K60x20-Z 3 Nm (2.2 lbf ft) – Screw, pressure regulator EJOT PT ® 3 Nm (2.2 lbf ft) – Spoke nipple, front wheel M4.5 5…...
  • Page 15 SUBSTANCES Super unleaded (ROZ 95/RON 95/PON 91) According to – DIN EN 228 (ROZ 95/RON 95/PON 91) Guideline – Only use unleaded super fuel that matches or is equivalent to the specified fuel grade. – Fuel with an ethanol content of up to 10 % (E10 fuel) is safe to use. Info Do not use fuel containing methanol (e.
  • Page 16: Auxiliary Substances

    AUXILIARY SUBSTANCES Long-life grease Guideline – KTM recommends Motorex ® products. Supplier Motorex ® – Bike Grease 2000...
  • Page 17 *3213127en* 3213127en 08/2013 KTM-Sportmotorcycle AG 5230 Mattighofen/Austria Photo: Mitterbauer/KTM http://www.ktm.com...
