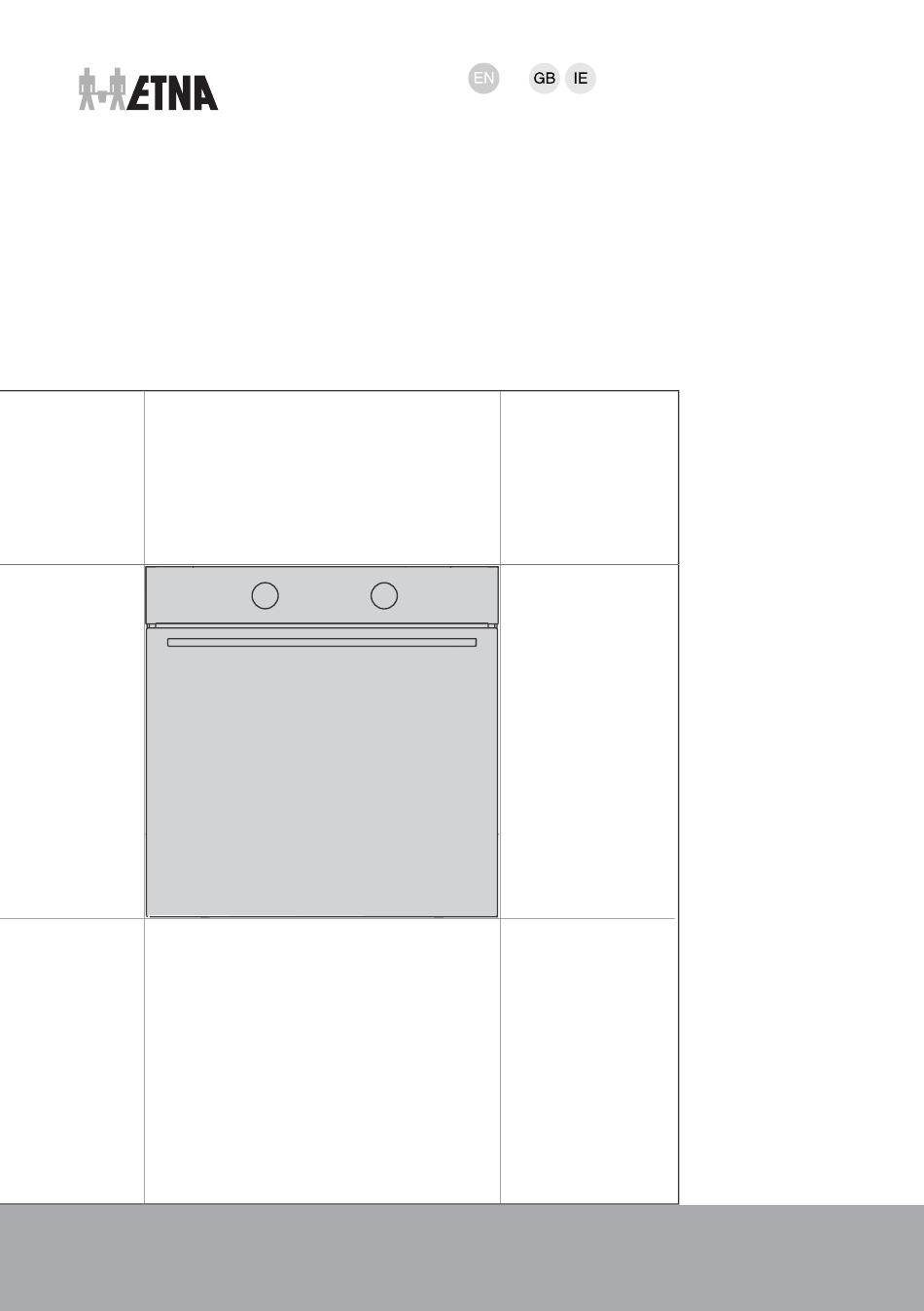

- Page 1 INSTRUCTIONS FOR USE OF A BUILT-IN OVEN OP316MZ...
- Page 2 We thank you for your trust and the purchase of our appliance. This detailed instruction manual is supplied to make the use of this product easier. The instructions should allow you to learn about your new appliance as quickly as possible. Make sure you have received an undamaged appliance.
-
Page 3: Table Of Contents
Contents Safety precautions ........................Safe and correct use of the oven during pyrolytic cleaning ............. Other important safety warnings ................... Appliance description ......................Rating plate product information ................... Control unit ..........................Push-pull knobs ........................Appliance equipment ......................Guides ............................Oven door switch ........................Cooling fan .......................... -
Page 4: Safety Precautions
Safety precautions IMPORTANT SAFETY PRECAUTIONS CAREFULLY READ THE INSTRUCTIONS AND SAVE THEM FOR FUTURE REFERENCE. Appliance must be connected to fixed wiring which has incorporated means of disconnection. Fixed wiring must be made in accordance with the wiring rules. Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules. - Page 5 This appliance can be used by children aged 8 years and above, and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, if they have been given supervision or instruction concerning the use of the appliance in a safe way, and if they understand the hazards involved.
-
Page 6: Safe And Correct Use Of The Oven During Pyrolytic Cleaning
Never pour water directly on the bottom of the oven cavity. Temperature differences could result in damage to the enamel coating. Safe and correct use of the oven during pyrolytic cleaning Before activating the automatic cleaning process, remove all equipment from the oven: the wire rack, the spit-roasting kit, all baking trays, meat probe, wire and telescopic guides, and any other cookware that is not a part of the oven equipment Before you start the cleaning process, remove any residue of... - Page 7 To prevent limescale accumulation, leave the oven door open after baking or using the oven, to allow the oven cavity to cool down to room temperature. Clean the oven when it has completely cooled down. Eventual mismatches in colour shades between different appliances or components within a single design line may occur due to various factors, such as different angles under which the appliances are observed, different coloured backgrounds, materials, and room illumination.
-
Page 8: Appliance Description

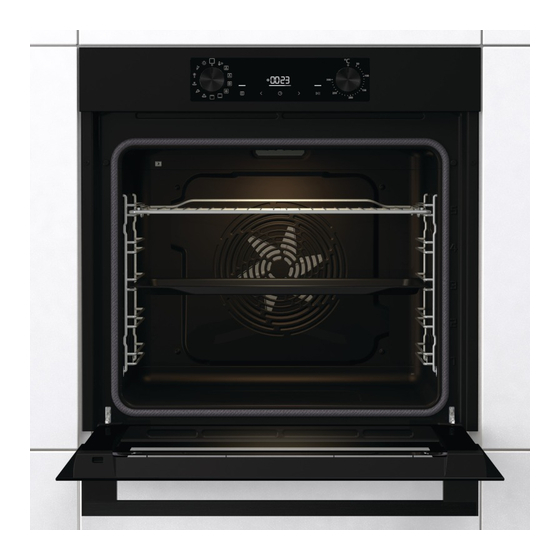

Appliance description INFORMATION! Appliance functions and equipment depend on the model. Basic equipment of your appliance includes wire guides, shallow baking tray, and a wire rack. 1 Control unit 5 Guides cooking levels 2 Door lock with a switch 6 Rating plate 3 Lighting 7 Oven door 4 Temperature probe socket... -
Page 9: Control Unit
Control unit (depending on the model) 1. System selector knob 2. Gratin, cancel or back key 3. Value decrease key 4. Timer function and settings key 5. Value increase key 6. start I stop key for confirming, starting, or stopping/pausing 7. -
Page 10: Appliance Equipment
Appliance equipment Guides • The guides allow cooking or baking on 5 rack levels. • The height levels of guides into which the racks can be inserted shall be counted from bottom up. • Guide levels 4 and 5 are intended for grilling/broiling. •... -
Page 11: Oven Door Switch
Click-on pull-out guides (depending on the model) The click-on pull-out guide can be inserted into any space between two wire guides. Place the guide symmetrically onto the wire guides on the left and the right side of the oven cavity. First, hook the upper clip of the guide under the wire of the wire guide. - Page 12 INFORMATION! There is a safety latch on the wire rack. Therefore, the wire rack has to be lifted slightly at the front when pulling it out from the oven. SHALLOW BAKING TRAY is used for flat and small pastry. It can also be used as a drip tray. WARNING! The shallow baking tray may deform as it heats up in the oven.
-
Page 13: Before First Use
Before first use • Remove oven accessories and any packaging (cardboard, polystyrene foam) from the oven. • Wipe the oven accessories and interior with a damp cloth. Do not use abrasive or aggressive cloths or cleaners. • Heat an empty oven for approximately one hour with the top and bottom heater system at a temperature of 250 °C. -
Page 14: Choosing The Settings
Choosing the settings CHOOSING THE COOKING SYSTEM Rotate the KNOB (left and right) to select the COOKING SYSTEM (see program table). INFORMATION! Appliance functions and equipment depend on the model. Symbol RAPID PREHEATING To reach the set temperature in the shortest possible time. When the oven is heated to the selected temperature, Prht will appear on the display unit and a short acoustic signal will be emitted. -
Page 15: Setting The Cooking Temperature
Table continued from last page Symbol SLOW BAKING For gentle, slow and even cooking of meat, fish and pastry on a single rack. This cooking method will leave the meat with a higher water content, making it juicier and more tender, while pastry will be evenly browned/baked. This system is used in the temperature range between 140 °C and 220 °C PIZZA SYSTEM This system is optimal for baking homemade pizza and pastry with higher water... -
Page 16: Timer Functions
TIMER FUNCTIONS Rotate the KNOB to set the desired SYSTEM and TEMPERATURE. Touch the key to set the timer functions. INFORMATION! During the last 10 minutes before the expiry of the set time, the remaining time is displayed in one-second intervals. Timed cooking In this mode, you can specify the duration of oven operation (cooking time). - Page 17 While waiting to start operation, the oven is in a partial standby mode. The display is dimmed, and the fan system and oven lighting are on the entire time. The oven will switch on with the selected settings automatically (in our case at 16:00, or 4 p.m.). The oven will switch off at the set time (in our case, this is 18:00, or 6 p.m.).
-
Page 18: Starting The Cooking Process
Starting the cooking process The dash above the key is partially lit. Press this key to run the set program. During program operation, the dash above the key will be lit more brightly (will be fully illuminated). When the set temperature is reached, will appear on the display unit for a few seconds, and an acoustic signal will be emitted. -
Page 19: Choosing The General Settings
Choosing the general settings Turn the COOKING SYSTEM SELECTOR KNOB to position "0". To activate a function, press the key and hold it for 3 seconds. SEtt will appear on the display unit for a few seconds. Then, the extra functions menu will appear. INFORMATION! Use the keys to navigate the menu. - Page 20 6. Adaptive function This function allows adjusting the set cooking time. The function is deactivated as a factory default, but it can also be activated. When the function is activated, the most recent cooking program duration settings are displayed. Values from the most recent cooking session will be used.
-
Page 21: General Tips And Advice For Baking
General tips and advice for baking • Remove all unnecessary equipment from the oven during baking • Use equipment made of heat-resistant non-reflective materials (supplied baking trays and dishes, enamel-coated cookware, tempered glass cookware). Bright-coloured materials (stainless steel or aluminium) materials reflect heat. As a result, thermal processing of food in them is less effective. •... -
Page 22: Cooking With A Temperature Probe
Cooking with a temperature probe ( BAKESENSOR) (depending on the model) The temperature probe allows for accurate monitoring of the core temperature of the food during cooking. WARNING! The temperature probe should not be in direct vicinity of the heating elements. Stick the metal end of the probe into the thickest part of the food. -
Page 23: Recommended Doneness Levels For Different Types Of Meat
Correct use of the probe, by type of food: • poultry: stick the probe in the thickest part of the breast; • red meat: stick the probe into a lean part that is not marbled with fat; • smaller chunks with bone: stick them into an area along the bone; •... -
Page 24: Cleaning And Maintenance
Cleaning and maintenance WARNING! Before cleaning, unplug the appliance from the power mains and wait for the appliance to cool down. Children should not clean the appliance or perform maintenance tasks without proper supervision. For easier cleaning, oven cavity and baking tray are coated with special enamel for a smooth and resistant surface. - Page 25 INFORMATION! The more stubborn the dirt, the higher the level that should be selected. Preparing for pyrolytic cleaning • Remove all visible dirt and food residue from the oven cavity. • Always remove the guides and all unnecessary equipment from the appliance. •...
-
Page 26: Removing Wire And Fixed Pull-Out (Extendible) Guides
• Insert the accessories into the groove on the second or third guide level never use the first guide level. • After the pyrolytic cleaning, wait for the equipment to cool down and clean it with hot soapsuds and a damp cloth. WARNING! If the oven is fitted with extendible guides, the equipment may not be cleaned with pyrolysis. -
Page 27: Removing And Replacing The Oven Door And Glass Panes
Removing and replacing the oven door and glass panes First, fully open the door (as far as it will go). Oven door is attached to the hinges with special supports that also include safety levers. Rotate the safety levers towards the door by 90°. -
Page 28: Replacing The Bulb
Replacing the bulb The bulb is a consumable and therefore not covered by warranty. Before replacing the bulb, remove all accessories from the oven. Halogen lamp: G9, 230 V, 25 W Unscrew and remove the cover (in anti-clockwise direction). Remove the halogen bulb. -
Page 29: Troubleshooting Table
Troubleshooting table Special warnings and fault reporting During the warranty period, only a service center authorized by the manufacturer may carry out any repairs. Before making any repairs, make sure the appliance is disconnected from the power mains either by removing the fuse or by disconnecting the power plug from the wall outlet. -
Page 30: Disposal
Disposal Our product packaging is made of environmentally friendly materials that can be recycled, disposed of, or destroyed without any hazard to the environment. To this end, packaging materials are labelled appropriately. The symbol on the product or its packaging indicates that the product should not be treated as normal household waste. -
Page 31: Cooking Test
Cooking test EN60350-1: Only use equipment supplied by the manufacturer. Always insert the baking tray all the way to the end position on the wire guide. Place pastry or cakes baked in moulds as shown in the image. * Preheat the appliance until it reaches the set temperature. Do not use the rapid preheat mode. ** Preheat the appliance for 10 minutes. - Page 32 BROILING mould Dish Equipment placement toasted bread wire rack wire rack + shallow pljeskavica (minced baking sheet as drip 20-35 *** meat patty) tray...
- Page 33 892841-a1...
