WATCH OUR
SHED ASSEMBLY
VIDEO GUIDE
HERE

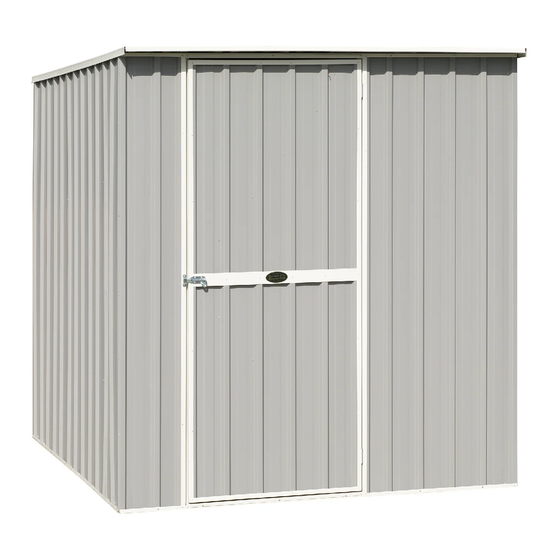

GM1818
SLOPING ROOF SHED
1830mm wide x 1830mm deep x 1980mm - 1830mm high
BEFORE YOU BEGIN:
To avoid any confusion with your new shed
build, we strongly suggest that you unpack
and identify each part before you begin to
put it together.
ASSEMBLY
INSTRUCTIONS
YOU SHOULD HAVE ONE PACKAGE:
• 1 cardboard package
TOOLS SUPPLIED:
• 1 riveter
• 3.3mm double ended drillbit
TOOLS REQUIRED:
• Battery or electric drill (drill bits supplied)
• Tape measure
• Ladder
• Non-slip gloves, good shoes and goggles
• A set of helping hands
Some parts have sharp edges and should be handled
very carefully. We recommend the use of protective
gloves and footwear when assembling.
DO NOT attempt to erect this shed in windy weather.
All dimensions are approximate.
25
EST.
EST.
1974
YEAR
WARRANTY
THIS SHED
WAS PROUDLY
PACKED BY:
Please quote
this code for any
correspondence back
to the supplier
CALL 0508 454 873
for an installer near you
Advertisement
Table of Contents
Related Manuals for GARDEN MASTER GM1818
Summary of Contents for GARDEN MASTER GM1818
- Page 1 WATCH OUR SHED ASSEMBLY VIDEO GUIDE HERE GM1818 SLOPING ROOF SHED 1830mm wide x 1830mm deep x 1980mm - 1830mm high BEFORE YOU BEGIN: THIS SHED WAS PROUDLY To avoid any confusion with your new shed PACKED BY: build, we strongly suggest that you unpack...
- Page 2 ASSEMBLY OVERVIEW These instructions are designed to guide you though the process of building your new garden shed. It is a simple process of joining sheets together before adding top and bottom channels to form a shed panel. These panels are then joined together to make your shed. When fitting the channels to the sheets, the high side of the channel should go on the inside of the sheet, ensuring that any water that collects in the bottom channel will run over the lower side and run away rather than into the shed.
- Page 3 Cap sheeting with channels putting the cutouts top and bottom. This will finish 10-15mm shorter than the sheet. GARDEN MASTER TIP Rivet the channels through the end ribs and every 2nd rib between. Put extra rivets in for high wind areas, Make sure you put at least 1 rivet per sheet up through the underside particularly on the underside.
- Page 4 STEP 3: END WALLS YOU WILL NEED: 4 x sloping sheets and 2 x sheets 1 / 2 Cap the sloping sheets with 1815mm channels. for end walls ( left, right) 1 / 2 1 / 2 Rivet the channels at the corners and every 2nd rib in between. 4 x 1815mm channels for end walls (2 per side) 2 rivets up underneath through channel into pan of sheet.
- Page 5 A Drill and rivet here. HERE B Drill through to the underside. Rivet top and underside. FITTING CHANNELS GARDEN MASTER TIP CHANNELS WITH CUTOUTS The higher side of the channel The cutouts go to the inside of To hinge the door on the INSIDE goes to the inside of the shed.
- Page 6 Rivet through the side of the ‘L’ flashing to secure the roof to the side of the shed. GARDEN MASTER TIP Use the handle end of a hammer in the inside of the corner, but beware of drilling holes on the end of your hammer!
- Page 7 INTERNAL 20MM - 25MM MEASUREMENT BOXING DIAGRAM 20MM - 25MM (1 ' X 1 ') INTERNAL DIMENSIONS FOR THE GM1818 INTERNAL DIMENSIONS 1785MM X 1785MM RECESSED FLOOR CLAMPS FLAT FLOOR CLAMPS For poured floors with a For existing concrete only.
- Page 8 6. What did you like best about your garden shed purchase? 7. Are there any parts of our service that you think we could improve upon? Thanks for your help! GARDEN MASTER SHED OPTIONAL EXTRAS 1. SHELVING 2. BRUNS TOOL RACKS 3.
