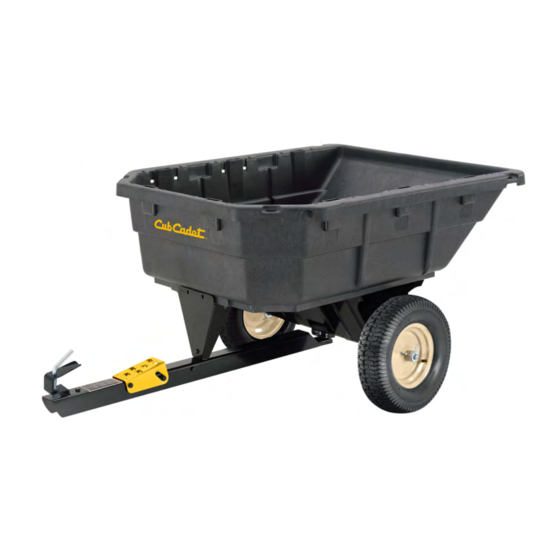

15 cu ft poly swivel dump cart
Hide thumbs Also See for CC-1000PS:

Advertisement

Quick Links

CC-1000PS
15 cu ft POLY SWIVEL DUMP CART
U.S. Patent No. 8,496,298 & 9,242,588
READ AND FOLLOW ALL SAFETY RULES AND OPERATING
INSTRUCTIONS BEFORE USING THIS EQUIPMENT
6004279 - REV A 09/18

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CC-1000PS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Cub Cadet CC-1000PS

  • Page 1 CC-1000PS 15 cu ft POLY SWIVEL DUMP CART U.S. Patent No. 8,496,298 & 9,242,588 READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS BEFORE USING THIS EQUIPMENT 6004279 - REV A 09/18...
  • Page 2: Safety Rules

    Safety Rules This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. Read and understand all safety rules and operating instructions before using this tractor attachment.
  • Page 3: Tools Required For Assembly

    Carton Contents 1 (x1) 2 (x1) 19 (x1) 20 (x1) 3 (x1) 21 (x1) 22 (x2) 23 (x4) 25 (x12) 26 (x12) 24 (x2) 18 (x1) 27 (x2) TOOLS REQUIRED FOR ASSEMBLY: • 1/2" Wrench or Socket • Grease Gun...
  • Page 4 Assembly Instructions Attach Undercarriage to Poly Body and tighten hardware. Attach Front Support to Poly Body and tighten hardware. Insert Axle into Undercarriage halfway as shown. Center Spacer inside Swivel Clevis and align with Axle.
  • Page 5 Assembly Instructions Slide Axle completely through Undercarriage; Swivel Clevis and Spacer must be captured by Axle. Align Drawbar with Front Support and press down to latch. Slide in order: 1" Washers, 2" Spacers and then Wheels onto Axle and secure with Hairpins. NOTE: WHEELS IN MODEL NOT SHOWN TO SCALE...
  • Page 6 Operating Instructions Before Using Dump Cart: Apply grease to wheels using grease gun until grease can be seen squeezing out from both sides of the wheel. Check tire pressure and inflate to 28 psi if needed. Read all Safety Rules found on page 1. How to Use Dump Cart: Attach Dump Cart to your tractor using the supplied hitch pin.
  • Page 7 Do-It-Yourself Accessories 35.13 31.63 USE 1/2" PLYWOOD 35.25 USE STANDARD 2 X 4 34.00 13.00 45.00 13.00 13.00 USE NOMINAL GRADE C 1 X 3...
  • Page 8: Warranty

    This warranty gives you specific legal rights, and you may also have other rights which may vary from state to state. This warranty applies only while this product is in use in the United States. In the space below record the purchase date of your Lawn Sweeper. CC-1000PS Model Number Purchase Date Retailer/Dealer Purchase Price Keep this Owner's Manual and your receipt in a safe place for future reference.
  • Page 9: Exploded View

    5/16-18 Flange Lock Nut 12 6000305-Y Foot Pedal 300084 Hairpin Cotter, 2-5/16" Latch Owners Manual 6000309 6004279 300075 1/2" USS Washer 6001667 Hardware Bolt Bag 6000368 Spring Washer 777D21641 Decal, Cub Cadet 6000325 Latch Spring 6000312 Swivel Clevis Replacement parts 1-800-652-2321...
  • Page 10: Repair Kits

    REPAIR KITS PART PART DESCRIPTION NUMBER NUMBER 3000528 5/16-18 X1-1/2" HEX HEAD BOLT 6000419 5/16-18 X1-1/2" SPINNER-GRIP NUT 300076 1" SAE WASHER 300084 HAIRPIN COTTER, 0.093" X 2-5/16" HARDWARE 6001667 BOLT BAG 300052 3/8-16 X3/4" HEX BOLT 300061 3/8-16 X3/4" C-LOCK NUT 6000382 1"...
  • Page 11 Designed And Tested In Columbus, Ohio Manufactured In The U.S.A. From Domestic And Imported Components MODEL # CC-1000PS (800) 652-2321 (800) 652-2321...
