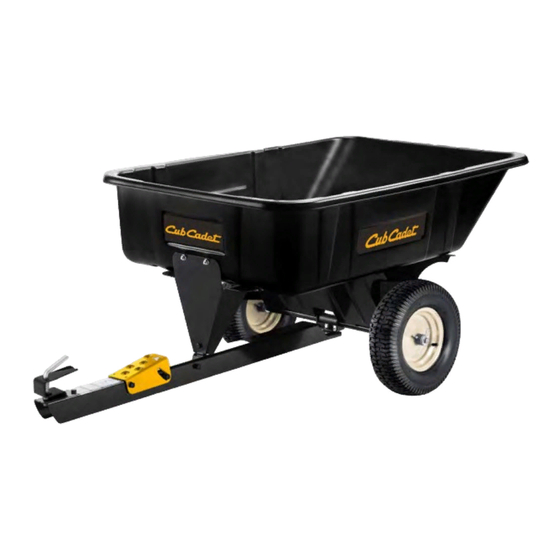

- Page 1 CC-3040PS 10 cu ft POLY SWIVEL DUMP CART *PATENT PENDING READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS BEFORE USING THIS EQUIPMENT 6004281 - REV A 9/18...
-
Page 2: Safety Rules
Safety Rules This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. Read and understand all safety rules and operating instructions before using this tractor attachment. -
Page 3: Warranty
This warranty gives you specific legal rights, and you may also have other rights which may vary from state to state. This warranty applies only while this product is in use in the United States. In the space below record the purchase date of your Lawn Sweeper. CC-3040PS Model Number Purchase Date Retailer/Dealer Purchase Price Keep this Owner's Manual and your receipt in a safe place for future reference. -
Page 4: Carton Contents
Carton Contents 2 (x1) 1 (x1) 5 (x1) 4 (x1) 3 (x1) 29 (x2) 28 (x2) 27 (x1) 23 (x12) 22 (x12) 24 (x12) 25 (x4) 26 (x2) TOOLS REQUIRED FOR ASSEMBLY: • 1/2" Wrench or Socket • Large Flat Screwdriver •... - Page 5 Assembly Instructions Attach Undercarriage to Poly Body and tighten with hardware as shown. Attach Front Support loosely to Poly Body as shown. DO NOT TIGHTEN HARDWARE AT THIS TIME Insert Axle into Undercarriage halfway as shown. Center Spacer inside Swivel Clevis and align with Axle.
- Page 6 Assembly Instructions Slide Axle completely through Undercarriage; Swivel Clevis and Spacer must be captured by Axle. Align Drawbar with Front Support and press down to latch. Tighten Bolts on Front Support after Latching to Drawbar Slide Washers and Wheels onto Axle and secure with Hairpins as shown. MAKE SURE VALVE STEM IS FACING OUT...
- Page 7 Operating Instructions Before Using Dump Cart: Apply grease to wheels using grease gun until grease can be seen squeezing out from both sides of the wheel. Check tire pressure and inflate to 30 psi if needed. Read all Safety Rules found on page 1. How to Use Dump Cart: Attach Dump Cart to your tractor using the installed spring loaded hitch pin.
-
Page 8: Repair Parts
Repair Parts ITEM PART NO DESCRIPTION QTY ITEM PART NO DESCRIPTION 6000667 BODY, POLY, 10 CU FT 300055 HEX BOLT, 3/8-16 X 3" 411061 UNDERCARRIAGE 6000309 LATCH 6000668 FRONT SUPPORT 6000325 SPRING, LATCH 300001 AXLE 300052 HEX BOLT, 3/8-16 X 3/4" 6002535-BY DRAWBAR ASSEMBLY (incl 10-20) 1 6000612 SPRING LOADED HITCH PIN... - Page 9 Notes...
- Page 10 Designed And Tested In Columbus, Ohio Manufactured In The U.S.A. From Domestic And Imported Components MODEL # CC-3040PS (800) 652-2321 (800) 652-2321...
