BEGA 24 102 Installation And Technical Information

BEGA
Installation and Technical Information

Tools Required:

• T15 torx head screwdriver
• T20 torx head screwdriver
• Flat head screwdriver
Overview:
LED Watts: 3.7W
System Watts: 6.0W
Controllability: 0-10V dimmable
Weight: 3.3 lbs.
Protection Class: IP65
Notice to Installer:
1. See page 2 for specific product safety warnings.
2. BEGA luminaires may be damaged if connected to conduit systems containing water - Article
300-5G of National Electric Code requires that "Conduits or raceways through which mois-
ture may contact energized live parts shall be sealed or plugged at either or both ends"
3. Luminaire is Non-IC rated. Insulation must be at least 3" from luminaire.
4. Suitable for installation in hollow wall construction or poured concrete construction.
5. Installation housing provided with (6) 1/2" NPT threaded conduit holes.
6. Installation housing must be installed so that the front face is flush with the finished wall.
7. Suitable for wall applications only. (No ceiling and in-grade applications).
8. Warning: A silicone-based sealant MUST be used between the faceplate of the
installed fixture and the exposed surface of the back box. Failure to do so could result
in water entry into back box and fixture failure.
BB24012 installation in hollow (stud) wall construction:
1. Install (2) slotted mounting brackets provided as shown in Figure 1, using the (4) self-tapping
T20 torx head screws provided with the included kit (Kit #90).
2. Adjust the brackets so that the front face of the installation housing will be flush with the
finished wall surface after installation, Figure 2.
3. Secure the mounting brackets to wood or metal horizontal blocking using hardware (by oth-
ers) as shown in Figure 2.
4. Remove plastic insert.
5. Connect conduit to installation housing and pull wires for electrical connections to be made
later.
6. Replace plastic insert and finish wall.
BB24012 installation in poured concrete construction:
1. Remove plastic insert.
2. Install (4) threaded M4 rods into the installation housing and hand tighten until fully secure,
Figure 3.
3. Connect conduit to installation housing and pull wires for electrical connections to be made
later.
4. Replace plastic insert, rods will fit through holes in plastic insert.
5. Attach the installation housing to concrete forms by using (4) wing nuts provided. Ensure
that the front face of the installation housing will be flush with the finished surface.
6. Pour concrete. Do not pump or drop concrete directly on top of the installation housing. Do-
ing so could deform or damage the installation housing.
7. After concrete has cured, remove wing nuts from threaded rods before removing the forms.
24102 luminaire installation
1. Remove plastic insert and debris from installation housing
2. Make wiring connection:
MAIN VOLTAGE SUPPLY WIRE TO BLACK DRIVER WIRE
NEUTRAL (COMMON) SUPPLY WIRE TO WHITE DRIVER WIRE
GREEN GROUND WIRE TO GREEN DRIVER WIRE
Dimming (if applicable):
DIMMING CONTROL WIRE (+) TO POSITIVE DRIVER DIM CONTROL WIRE
DIMMING CONTROL WIRE (-) TO NEGATIVE DRIVER DIM CONTROL WIRE
3. Insert luminaire into installation housing and secure into place by evenly tightening the (2)
T15 torx head screws on the front of the luminaire to engage the clamping system. Before
tightening completely, apply a silicone-based sealant as outlined below:
Apply a silicone-based sealant between the faceplate of the installed fixture and the
exposed surface of the back box to prevent water from entering the back box.
Accessories
Please refer to the appropriate accessory installation
sheet for further instruction when applicable.
BEGA 1000 Bega Way, Carpinteria, CA 93013 (805)684-0533 © copyright BEGA 2021
Due to the dynamic nature of lighting products and the associated technologies, luminaire data on this sheet is subject to change at the discretion of BEGA North America. For the most current technical data, please refer to bega-us.com
B
A B

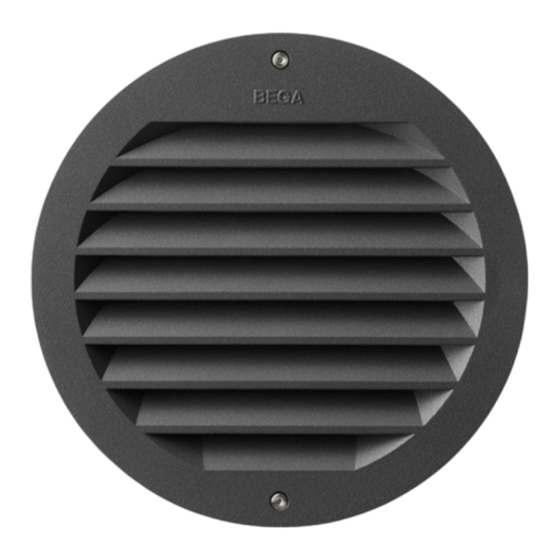

Recessed wall luminaire - shielded
Dimensions
A: 7-3/8"
B: 5-1/2"

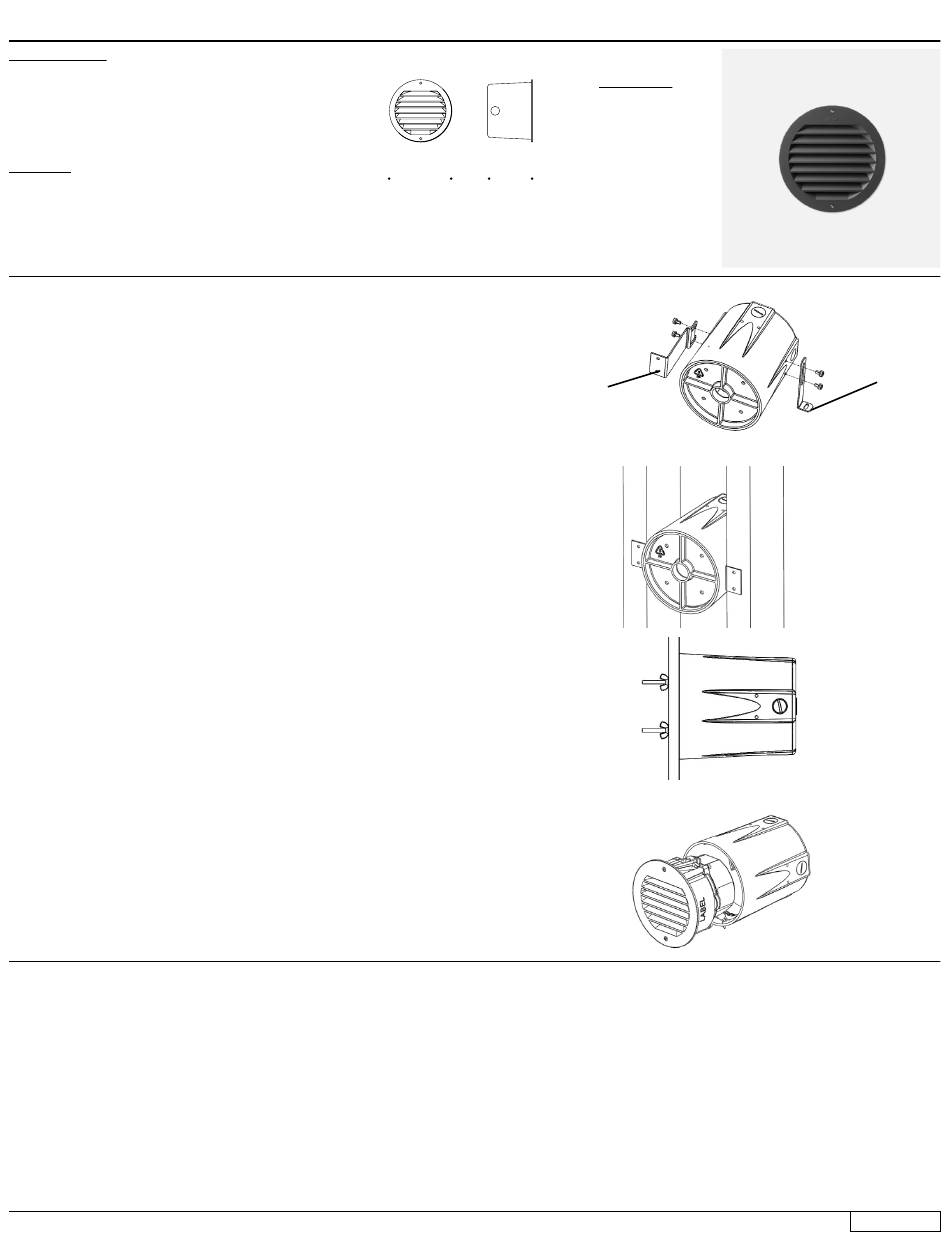

Figure 1:
Stud bracket
Figure 2:
Figure 3:
Figure 4:
Maintenance:
Clean regularly with solvent-free cleaner
removing dirt and debris. Do not use high
pressure cleaners.
Replacement Parts
See label inside of fixture for LED replacement
part number.
Consult factory for all other replacement
components.
24 102
Masonry bracket
Updated: 07/19/21
24 102 1 of 2
