STEP 1

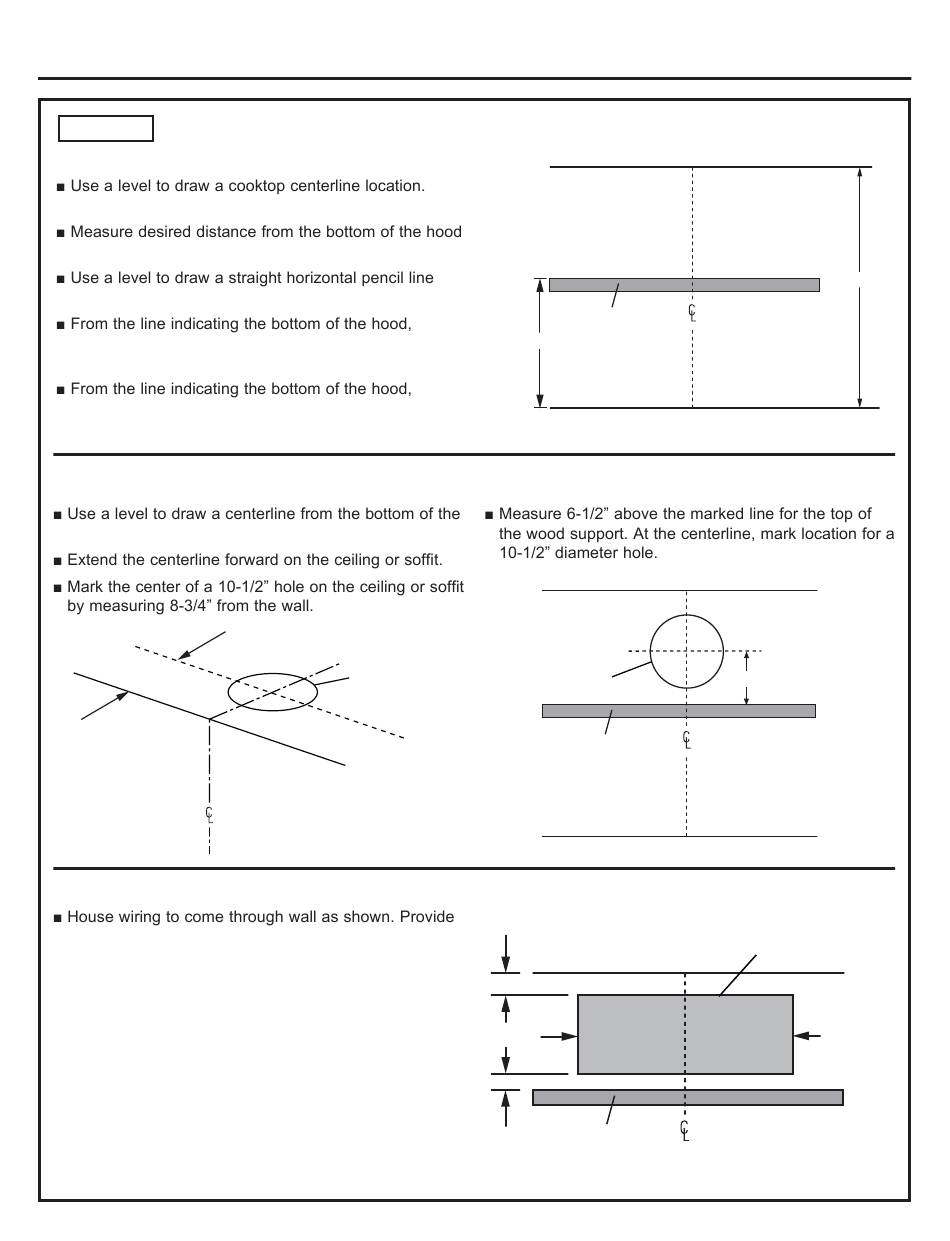

DETERMINE HOOD AND DUCTWORK LOCATIONS
MARK LOCATION OF WOOD SUPPORT
Draw the line to ceiling height.
to the cooking surface, 30" min. to 36" max.
indicating the bottom of the hood.
measure 16" up and draw another line for the location
of the top of the wood support.
measure 30" up and draw another line for the location
of the top of the hood. See illustration.
FOR VERTICAL (Straight Up) DUCTING:
hood to ceiling or soffit.
8-3/4"
HOUSE WIRING LOCATION:
at least 7 feet of house wiring.
31-2001216 Rev. 0
Installation Instructions
10-1/2" hole
Top of Hood
Wood
Support
16"
Bottom of Hood
FOR DUCTING THROUGH REAR WALL:
Top of Hood
10-1/2" hole
Wood
Support
Bottom of Hood
Top of Hood
3"
9"
2"
Wood
Support
30"
6-1/2"
House wiring comes
through here
32"
5
