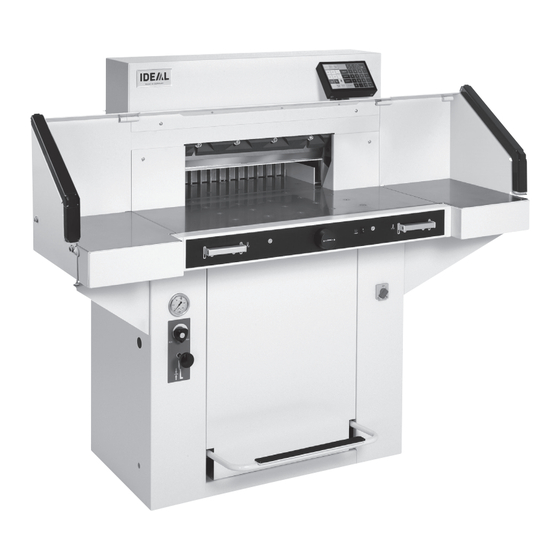

KRUG+PRIESTER IDEAL 5560 Operating Instructions Manual
  1. Manuals
  2. Brands
  3. KRUG+PRIESTER Manuals
  4. Cutter
  5. IDEAL 5560
  6. Operating instructions manual

KRUG+PRIESTER IDEAL 5560 Operating Instructions Manual

Guillotines
Hide thumbs Also See for IDEAL 5560:
Table of Contents

Advertisement

Quick Links

Download this manual
Guillotines
EN
Operating Instructions
IDEAL 5560
IDEAL 5560 EN 9700233 9700174
08-2022 20230619zm

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IDEAL 5560 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KRUG+PRIESTER IDEAL 5560

Summary of Contents for KRUG+PRIESTER IDEAL 5560

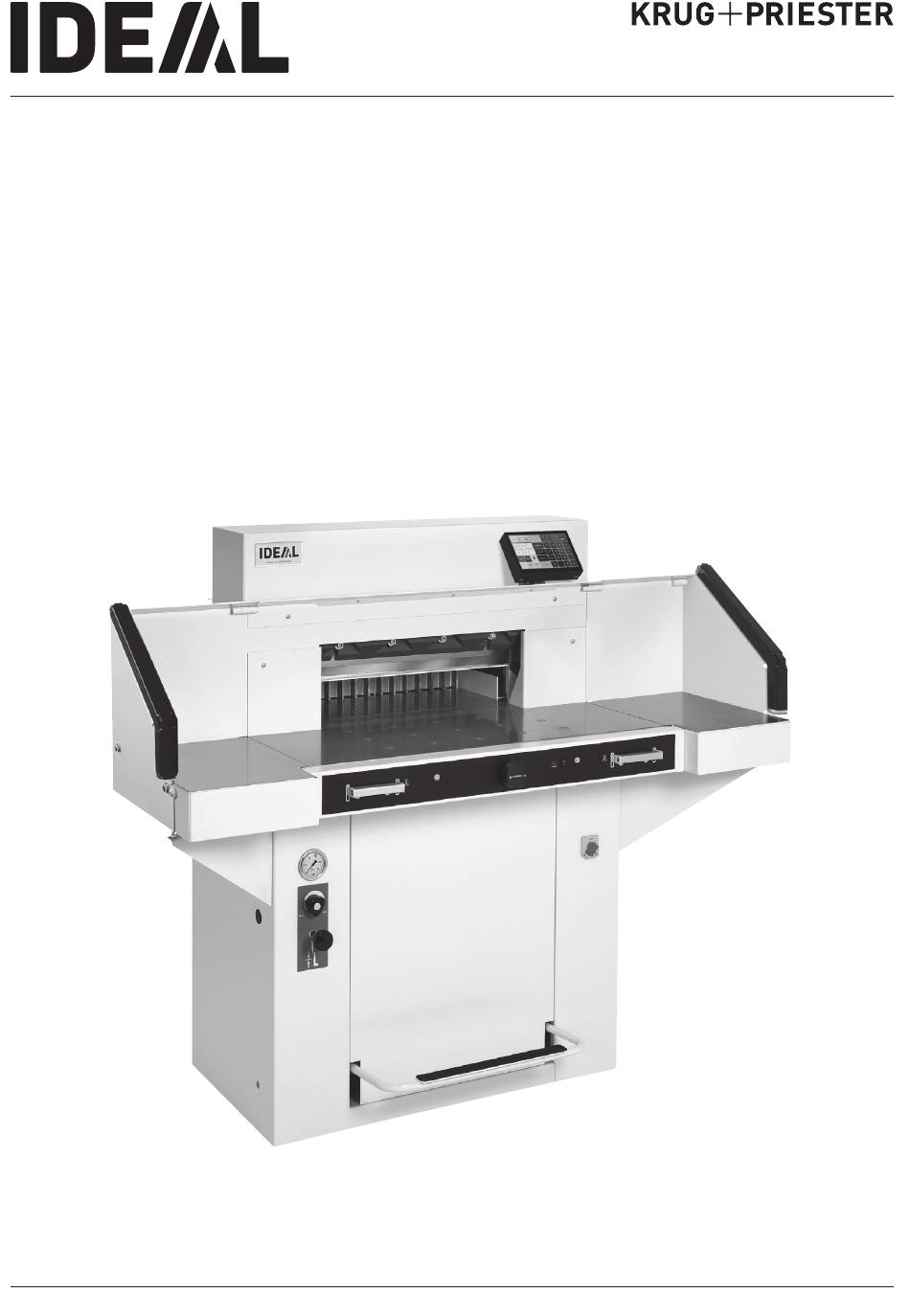

  • Page 1 Guillotines Operating Instructions IDEAL 5560 IDEAL 5560 EN 9700233 9700174 08-2022 20230619zm...

  • Page 2: Table Of Contents

    Table of Contents Safety precautions Intended use Installation Startup Operation Operating elements Blade and cutting stick replacement Maintenance and cleaning Annual inspection / Safety test Possible malfunctions Accessories Technical data EC-declaration of conformity IDEAL 5560 EN 9700233 9700174 08-2022 20230619zm...

  • Page 3: Safety Precautions

    Never leave the blade unattended! Do not extract or transport the blade without protection! (See page 27 and 29). Danger! Risk of injury! Do not cut hard materials or materials which may splinter! IDEAL 5560 EN 9700233 9700174 08-2022 20230619zm...

  • Page 4: Intended Use

    Do not use any flammable cleaning agents. Intended use The machine is designed for cutting stacks of paper to a specified size. This machine is constructed for "one-man operation" only! Warning! Clips or similar damage the cutting blade. IDEAL 5560 EN 9700233 9700174 08-2022 20230619zm...
  • Page 5 Safety precautions Disconnect from the mains before starting any service work or before removing the panels! Replacement of blade and cutting stick may be performed only when the main switch is switched off! IDEAL 5560 EN 9700233 9700174 08-2022 20230619zm...
  • Page 6 (B) and safety beam guard (A). Protect mains cable against heat, oil and sharp edges! Standard machines are factory-set as follows: • Voltage 230 V (120 V) 1 phase • Frequency 50 Hz (60 Hz). IDEAL 5560 EN 9700233 9700174 08-2022 20230619zm...
  • Page 7 Safety precautions When not in use for a longer period switch off. (Main switch to "0"). Danger! Blade must always be covered by the pressing bar. Clamping Blade IDEAL 5560 EN 9700233 9700174 08-2022 20230619zm...

  • Page 8: Installation

    Installation The machine is mobile on castors. Align the machine as followes: • Align machine with water level and adjust accordingliy. 4 x screws size 19 (A). • Reference area machine table (B). IDEAL 5560 EN 9700233 9700174 08-2022 20230619zm...

  • Page 9: Startup

    Installation / Startup The machine is delivered ready for operation. Side tables (A), left and right are available as an option. Assembly instructions are included. Startup Plug into socket. IDEAL 5560 EN 9700233 9700174 08-2022 20230619zm...
  • Page 10 If the test rod (E, tool kit) is held into the protective field (D), an activated work cycle must be stopped immediately. We recommend you keep a record of your test results. STOP IDEAL 5560 EN 9700233 9700174 08-2022 20230619zm...
  • Page 11 Tighten allen screw again. The measurement is set either with the hand- wheel (A) or by programming (B) the cutting measurements. Measurement is shown on the display in inches or cm (B). IDEAL 5560 EN 9700233 9700174 08-2022 20230619zm...

  • Page 12: Operation

    Position the paper on the backgauge (A) and side lays left or right (B). To move paper stacks, please use the paper knock-up block (C) provided. (Run backgauge to the front for turning the paper stack). IDEAL 5560 EN 9700233 9700174 08-2022 20230619zm...
  • Page 13 (B).  The remaining cut is 6 cm (manual - handwheel), automatically 8 cm Air table It is easier to position large stacks of paper when the airtable (A) is switched on. IDEAL 5560 EN 9700233 9700174 08-2022 20230619zm...
  • Page 14 (B). The clamp moves automatically when cutting is activated. The paper can be pressed in advance, with the foot pedal (A). Cutting is activated by pressing both buttons (B) on the front table. IDEAL 5560 EN 9700233 9700174 08-2022 20230619zm...
  • Page 15 • Press both actuators of the safety two-handed control system (B) simultaneously and keep them pressed until the paper is completely cut. Cutting stop or interruption: Release both actuators of the two-hand control (A). IDEAL 5560 EN 9700233 9700174 08-2022 20230619zm...

  • Page 16: Operating Elements

    Memory 1: A2, A3, A4, A5, Memory 2: A6, A7, B3, B4 Memory 3: Memory 4: and in inch Memory 1: 4¼“, 5 ½“, 7“, 8 ½“ Memory 2: 11“, 12“, 14“, 17“ Memory 3: Memory 4: IDEAL 5560 EN 9700233 9700174 08-2022 20230619zm...
  • Page 17 ) has 3 switching steps Press 1 x brightness 3  Press 2 x  brightness 2 Press 3 x  brightness 1 Light OFF  Optical cutting line indicator  (ON/OFF) E F G IDEAL 5560 EN 9700233 9700174 08-2022 20230619zm...
  • Page 18 • The further the hand-wheel is turned to the right, the quicker the backgauge moves. If the hand-wheel is turned to the left the backgauge will return quicker. IDEAL 5560 EN 9700233 9700174 08-2022 20230619zm...
  • Page 19 Exiting program-mode • Press multiple cut (yellow). Multiple cut sign and value are deleted. Calculator function • Calculate the desired measurement, e.g. 40 - 2 =  the backgauge advances immediately to 38. IDEAL 5560 EN 9700233 9700174 08-2022 20230619zm...
  • Page 20 • Escape the program mode press MANUAL Cancel a program • Press PROG EDIT • Scroll with PROG until "Delete program no." appears • Enter Program number • Press Enter • Press Enter IDEAL 5560 EN 9700233 9700174 08-2022 20230619zm...
  • Page 21 • Store the measurement with enter • Calculate the desired measurement e.g. 40 - 2 =  the calculated measurement 38 flashes . • Pressing the Enter-key again, the calculated measurement is saved in the corresponding step. IDEAL 5560 EN 9700233 9700174 08-2022 20230619zm...
  • Page 22 • Select a program, confirm with Enter • Scroll with STEP until "Load step no." appears • Enter step position e.g. 03 • Confirm with Enter • Enter a new measurement, Store the measurement with IDEAL 5560 EN 9700233 9700174 08-2022 20230619zm...
  • Page 23 • Store the measurement with Enter • Press the multiple cut symbol • Enter the number of cuts with the + button (max. 15 cuts) followed by the multiple cut size (cutting width). • Store with Enter IDEAL 5560 EN 9700233 9700174 08-2022 20230619zm...

  • Page 24: Blade And Cutting Stick Replacement

    Krug & Priester, D-72336 Balingen. Danger! Risk of injury! The blade is extremely sharp. Do not extract or transport the blade without protection. Changing the blade may only be performed by trained staff. IDEAL 5560 EN 9700233 9700174 08-2022 20230619zm...
  • Page 25 • Activate cutting  blade remains in lowest position. • Set mains switch to position "0". Remove the left screw (D), using the extension. Pull out blade locking key  blade moves to the top. IDEAL 5560 EN 9700233 9700174 08-2022 20230619zm...
  • Page 26 Blade and cutting stick replacement Remove both outer screws. Mount blade changing tool (A). Tighten screws (B). IDEAL 5560 EN 9700233 9700174 08-2022 20230619zm...
  • Page 27 Remove remaining two screws (A). Simultaneously slightly loosen both screws (B) and remove blade with blade changing tool. Weight of blade approx. 5 kg. Place the blade into the blade carrier and screw it into place. IDEAL 5560 EN 9700233 9700174 08-2022 20230619zm...
  • Page 28 (C) 1/6 turn to the left. • If the last sheet is still not completely cut repeat this process until the last sheet is cut along the entire length. IDEAL 5560 EN 9700233 9700174 08-2022 20230619zm...
  • Page 29 Danger! Blade (E) must be protected. Mount the blade with the blade changing tool (A) ..and tighten with screws (B) in upper position. Blade must be in the upper position. IDEAL 5560 EN 9700233 9700174 08-2022 20230619zm...
  • Page 30 Blade and cutting stick replacement Screw in middle screws and tighten. Remove the blade changing tool. Slightly screw in outer screws. IDEAL 5560 EN 9700233 9700174 08-2022 20230619zm...
  • Page 31 • Press in blade locking key. • Set main switch to position "I". • Activate cutting  blade remains in the lowest position. • Set main switch to position "0". Screw in slightly the left screw. IDEAL 5560 EN 9700233 9700174 08-2022 20230619zm...
  • Page 32 Push the blade and screw (B) as far as possible to the left or right and then centralize them.  The blade must rest on the cutting stick. Push in the first screw on the left side and tighten. IDEAL 5560 EN 9700233 9700174 08-2022 20230619zm...
  • Page 33 Blade and cutting stick replacement Tighten the remaining 3 screws beginning from the left. Pull out blade locking key  blade moves to the top. Tighten the screw which is visible at the right. IDEAL 5560 EN 9700233 9700174 08-2022 20230619zm...
  • Page 34 (A) 1/6 turn to the left until the paper is cut along the entire length. Do not set too low as blade will soon become blunt. IDEAL 5560 EN 9700233 9700174 08-2022 20230619zm...

  • Page 35: Maintenance And Cleaning

    7 litres. (A) Drain screw (B) Oil stick • Check that the hydraulic pump and screws are not leaking. If necessary tighten the retaining nut. • Check pressure. Maximum pressure is 150 bar. IDEAL 5560 EN 9700233 9700174 08-2022 20230619zm...
  • Page 36 Type of oil: SAE10 to SAE50 all types. With more than 5 hours of use per day, the No. 9800 933 service must be performed more often. No. 9001 828 11 11 10-01 IDEAL 5560 EN 9700233 9700174 08-2022 20230619zm...

  • Page 37: Annual Inspection / Safety Test

    The safety regulations are according to the regulations of the country where the cutting machine is operated. The manufacturer recommends a safety check is made every 5 years by an authorised service team. IDEAL 5560 EN 9700233 9700174 08-2022 20230619zm...

  • Page 38: Possible Malfunctions

    • Blade locking facility (B) must be pulled out. • Push in the fuses in the back of the machine F1, F2, F3. • Check the units fuse and the on-site circuit breaker. IDEAL 5560 EN 9700233 9700174 08-2022 20230619zm...
  • Page 39 (A). • Hydraulic oil shortage.  Check hydraulic oil level (B), if necessary, top up. "Information" Clamp bar is active, please release clamp •  Operate the foot pedal (clamping) again. IDEAL 5560 EN 9700233 9700174 08-2022 20230619zm...
  • Page 40 ... or turn / replace the cutting stick (B). (See page 29 "Blade and cutting stick replacement"). A reduction in the cutting quality indicates that the blade must be sharpened or a blade change is necessary. IDEAL 5560 EN 9700233 9700174 08-2022 20230619zm...
  • Page 41 • (B) Green = o.k. / ready for operation Red = light beam is interrupted or error Did none of the specified solutions help you with your problem? Contact: Service  • www.krug-priester.com • service@krug-priester.com Service IDEAL 5560 EN 9700233 9700174 08-2022 20230619zm...

  • Page 42: Accessories

    • No. 9000 625 Grease cartridge • No. 9800 933 Brush • No. 9001 828 Paper knock-up block • No. 9000 521 Side tables left and right • No. 9000 536 Included in delivery IDEAL 5560 EN 9700233 9700174 08-2022 20230619zm...

  • Page 43: Technical Data

    Safety beam guard Total reaction time: 110 ms Resolution 14 mm/minimum distance: 250 mm Resolution 22 mm/minimum distance: 284 mm Resolution 39 mm/minimum distance: 420 mm Subject to alteration without notice. IDEAL 5560 EN 9700233 9700174 08-2022 20230619zm...
  • Page 44 This machine is approved by independent safety laboratories and is in compliance with the EC-regulations 2006/42/EG and 2014/30/EU. Sound level information: Sound measurement to EN 13023 : 72,5 db (A) Subject to alteration without notice. IDEAL 5560 EN 9700233 9700174 08-2022 20230619zm...
  • Page 45 The company Krug + Priester has the following certifications: • Quality management system according to DIN EN ISO 9001:2015 • Environmental management system according to DIN EN ISO 14001:2015 • Energy management system according to DIN EN ISO 50001:2018 IDEAL 5560 EN 9700233 9700174 08-2022 20230619zm...

  • Page 46: Ec-Declaration Of Conformity

    BS EN ISO 13857; BS EN ISO 11204; BS EN 13023; BS EN ISO 13849-1 14.02.2022 Authorized representative for technical documentation Date Krug & Priester GmbH & Co. KG Simon-Schweitzer-Str. 34 D-72336 Balingen (Germany) - Managing Director - IDEAL 5560 EN 9700233 9700174 08-2022 20230619zm...
  • Page 47 Remarks: IDEAL 5560 EN 9700233 9700174 08-2022 20230619zm...
  • Page 48 Made in Germany Krug & Priester GmbH & Co. KG Simon-Schweitzer-Str. 34 D-72336 Balingen (Germany) www.krug-priester.com IDEAL 5560 EN 9700233 9700174 08-2022 20230619zm...
